3. Replace the stand cover.
4. Replace the rear cover.
To replace it follow step 8 of Connecting the monitor
to a power source on page 12.
5. Connect the digital signal cable to the computer.
Digital RGB output terminal (DVI-D24 pin or
DVI-I29 pin)
Firmly insert the plug then tighten the screws
each side.
Note:
• After turning the monitor on, use the INPUT button to
switch the incoming signal over to DIGITAL.

Turning the power on

1. Press the monitor's power button.
2. Turn on the computer.
The power LED will be lit green, and the screen will
display an image.
Downloaded from www.Manualslib.com

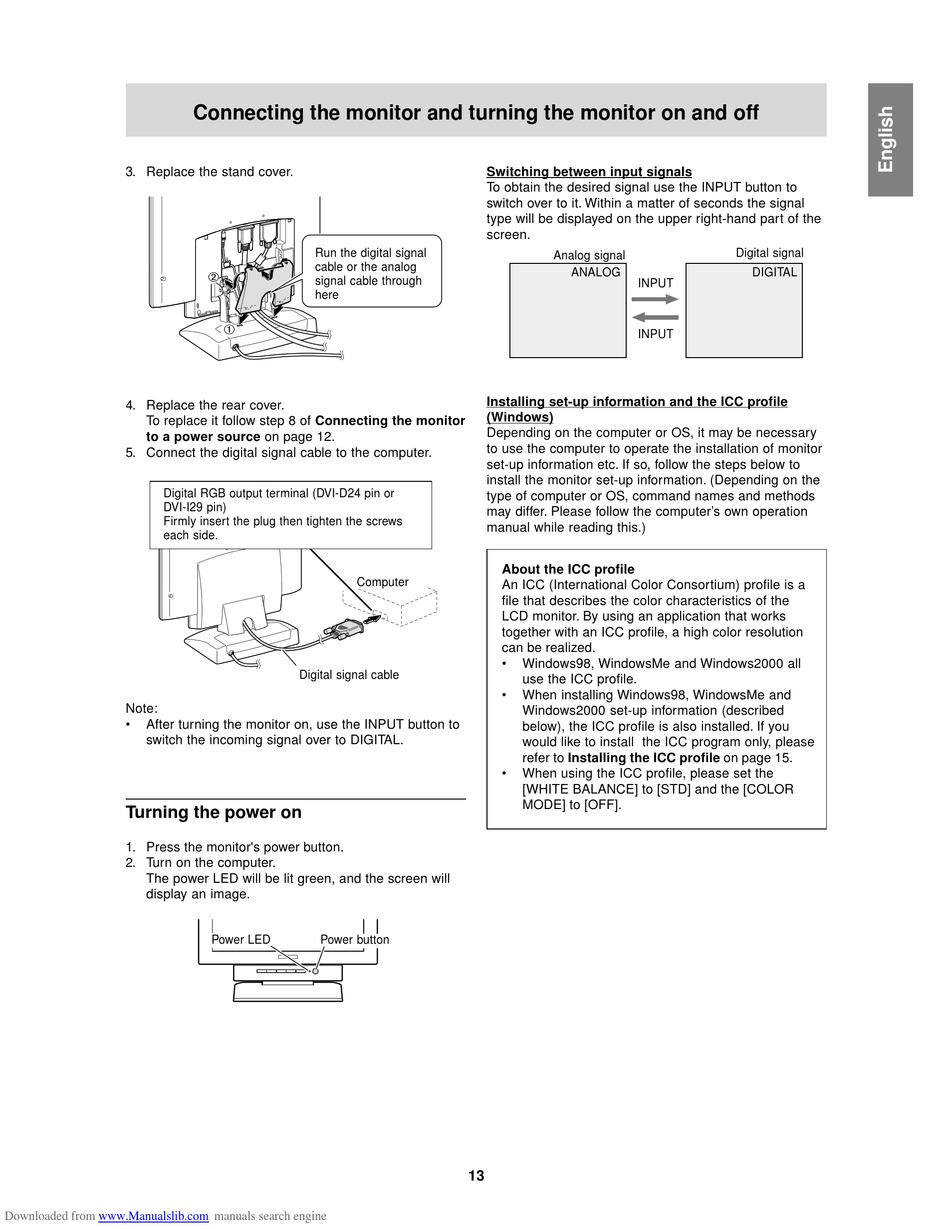

Connecting the monitor and turning the monitor on and off
Run the digital signal
cable or the analog
2
signal cable through
here
1
Computer
Digital signal cable
Power LED Power button
manuals search engine
Switching between input signals
To obtain the desired signal use the INPUT button to
switch over to it. Within a matter of seconds the signal
type will be displayed on the upper right-hand part of the
screen.
Analog signal
ANALOG
INPUT
INPUT
Installing set-up information and the ICC profile
(Windows)
Depending on the computer or OS, it may be necessary
to use the computer to operate the installation of monitor
set-up information etc. If so, follow the steps below to
install the monitor set-up information. (Depending on the
type of computer or OS, command names and methods
may differ. Please follow the computer's own operation
manual while reading this.)
About the ICC profile
An ICC (International Color Consortium) profile is a
file that describes the color characteristics of the
LCD monitor. By using an application that works
together with an ICC profile, a high color resolution
can be realized.
• Windows98, WindowsMe and Windows2000 all
use the ICC profile.
• When installing Windows98, WindowsMe and
Windows2000 set-up information (described
below), the ICC profile is also installed. If you
would like to install the ICC program only, please
refer to Installing the ICC profile on page 15.
• When using the ICC profile, please set the
[WHITE BALANCE] to [STD] and the [COLOR
MODE] to [OFF].
13
Digital signal
DIGITAL
