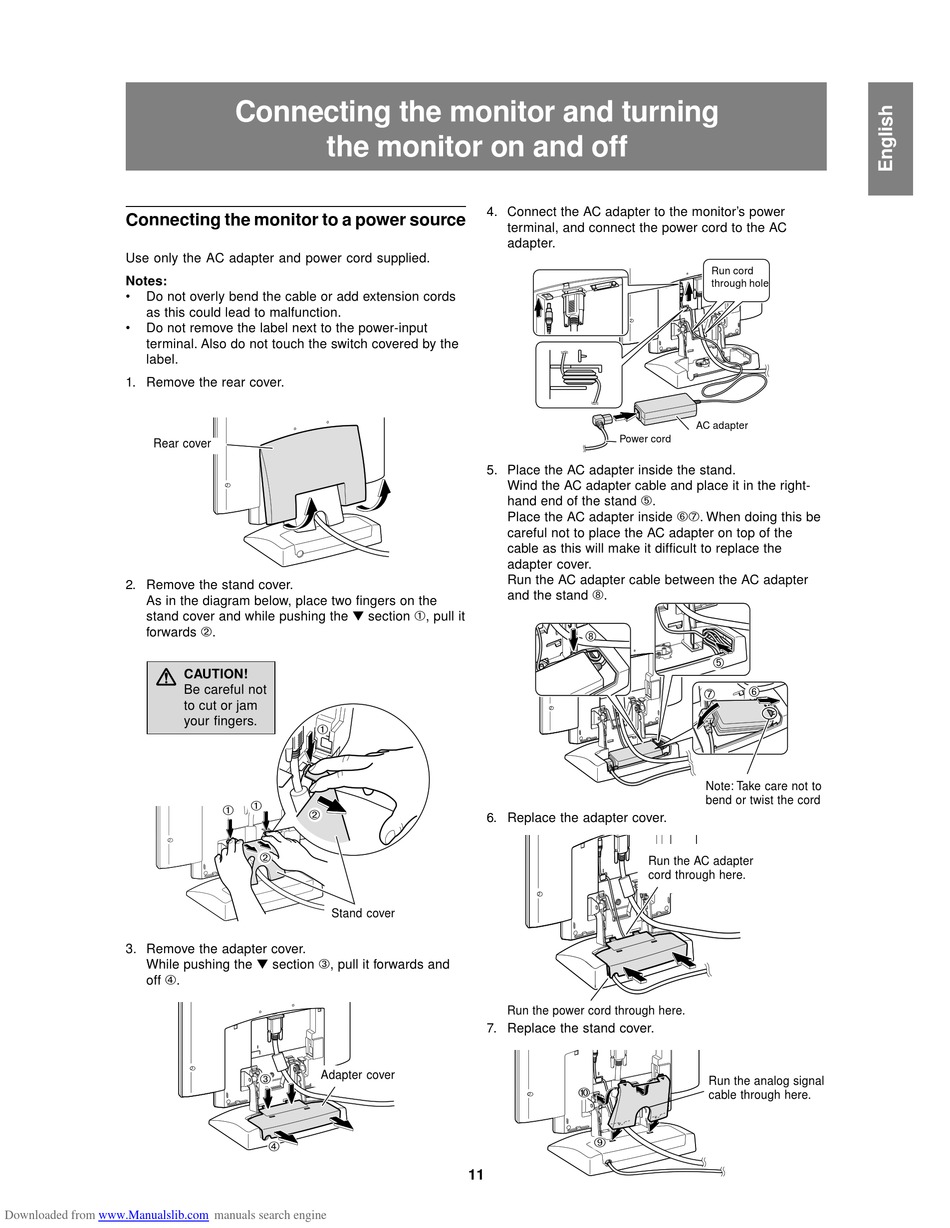

Connecting The Monitor And Turning The Monitor On And Off; Connecting The Monitor To A Power Source - Sharp LL-T1610W Bedienungshandbuch

Connecting the monitor to a power source

Use only the AC adapter and power cord supplied.
Notes:
• Do not overly bend the cable or add extension cords
as this could lead to malfunction.
• Do not remove the label next to the power-input
terminal. Also do not touch the switch covered by the
label.
1. Remove the rear cover.
Rear cover
2. Remove the stand cover.
As in the diagram below, place two fingers on the
stand cover and while pushing the
forwards 2.
CAUTION!
Be careful not
to cut or jam
your fingers.
3. Remove the adapter cover.
While pushing the
off 4.
Downloaded from www.Manualslib.com
Connecting the monitor and turning
the monitor on and off
section 1, pull it
1
1
1
2
2
Stand cover
section 3, pull it forwards and
Adapter cover
3
4
manuals search engine
4. Connect the AC adapter to the monitor's power
terminal, and connect the power cord to the AC
adapter.
Power cord
5. Place the AC adapter inside the stand.
Wind the AC adapter cable and place it in the right-
hand end of the stand 5.
Place the AC adapter inside 67. When doing this be
careful not to place the AC adapter on top of the
cable as this will make it difficult to replace the
adapter cover.
Run the AC adapter cable between the AC adapter
and the stand 8.
8
6. Replace the adapter cover.
Run the power cord through here.
7. Replace the stand cover.
0
9
11
Run cord
through hole
AC adapter
5
6
7
Note: Take care not to
bend or twist the cord
Run the AC adapter
cord through here.
Run the analog signal
cable through here.
