Product Description - Sharp LL-T1610W Bedienungshandbuch

1. INPUT button
2. MENU button
3. SELECT button
4. buttons
5. Power LED
6. Power button
7. Security lock anchor (
8. Power terminal
9. Analog signal input terminal
10. Analog signal cable
11. USB port
12. Digital signal input terminal
13. Ventilation openings
Downloaded from www.Manualslib.com

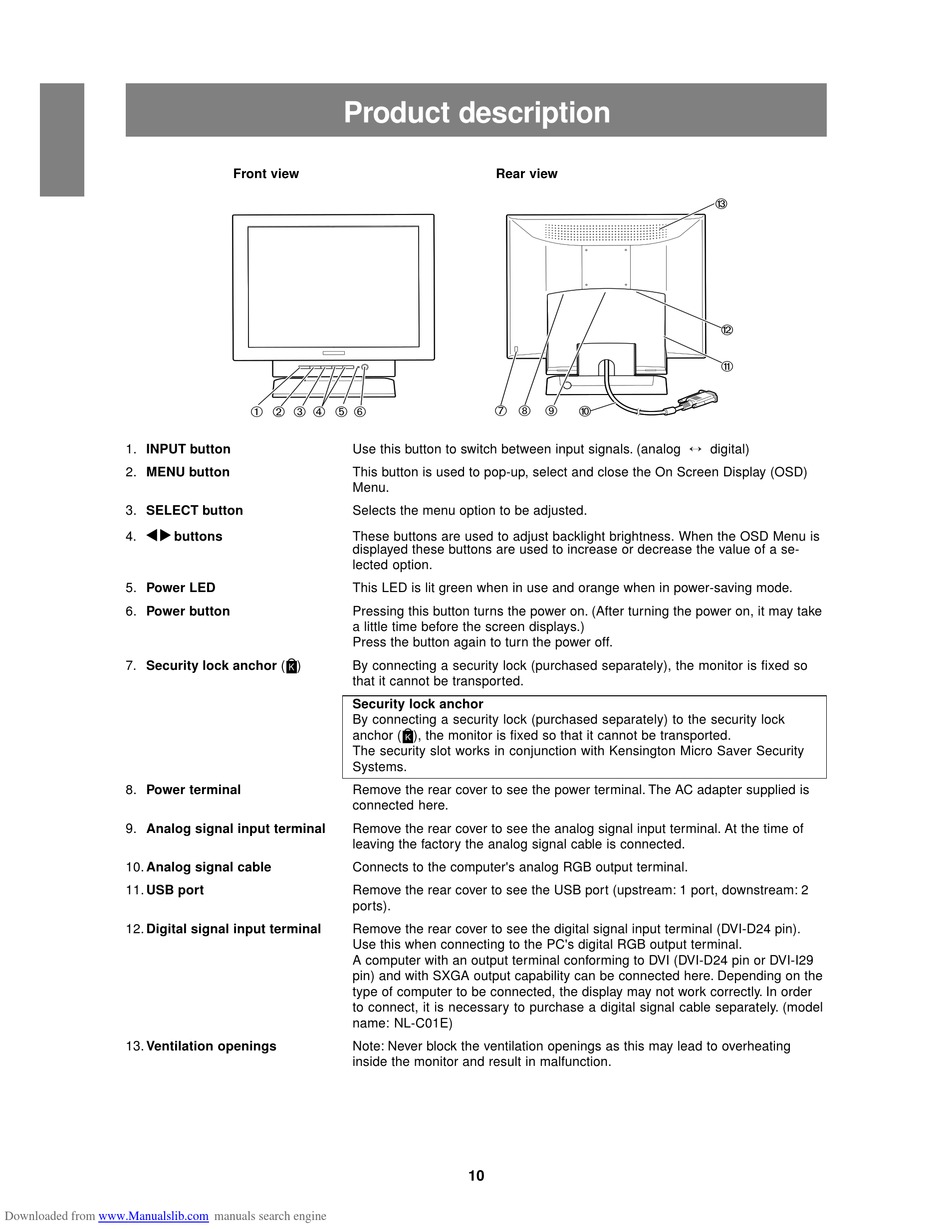

Product description

Front view
1 2 4 5 6
3
Use this button to switch between input signals. (analog
This button is used to pop-up, select and close the On Screen Display (OSD)
Menu.
Selects the menu option to be adjusted.
These buttons are used to adjust backlight brightness. When the OSD Menu is
displayed these buttons are used to increase or decrease the value of a se-
lected option.
This LED is lit green when in use and orange when in power-saving mode.
Pressing this button turns the power on. (After turning the power on, it may take
a little time before the screen displays.)
Press the button again to turn the power off.
) By connecting a security lock (purchased separately), the monitor is fixed so
K
that it cannot be transported.
Security lock anchor
By connecting a security lock (purchased separately) to the security lock
anchor (
The security slot works in conjunction with Kensington Micro Saver Security
Systems.
Remove the rear cover to see the power terminal. The AC adapter supplied is
connected here.
Remove the rear cover to see the analog signal input terminal. At the time of
leaving the factory the analog signal cable is connected.
Connects to the computer's analog RGB output terminal.
Remove the rear cover to see the USB port (upstream: 1 port, downstream: 2
ports).
Remove the rear cover to see the digital signal input terminal (DVI-D24 pin).
Use this when connecting to the PC's digital RGB output terminal.
A computer with an output terminal conforming to DVI (DVI-D24 pin or DVI-I29
pin) and with SXGA output capability can be connected here. Depending on the
type of computer to be connected, the display may not work correctly. In order
to connect, it is necessary to purchase a digital signal cable separately. (model
name: NL-C01E)
Note: Never block the ventilation openings as this may lead to overheating
inside the monitor and result in malfunction.
manuals search engine
Rear view
7 8 9
0
), the monitor is fixed so that it cannot be transported.
K
10
e
w
q
digital)
