Product Description; Main Unit - Sharp LL-171ME Bedienungsanleitung

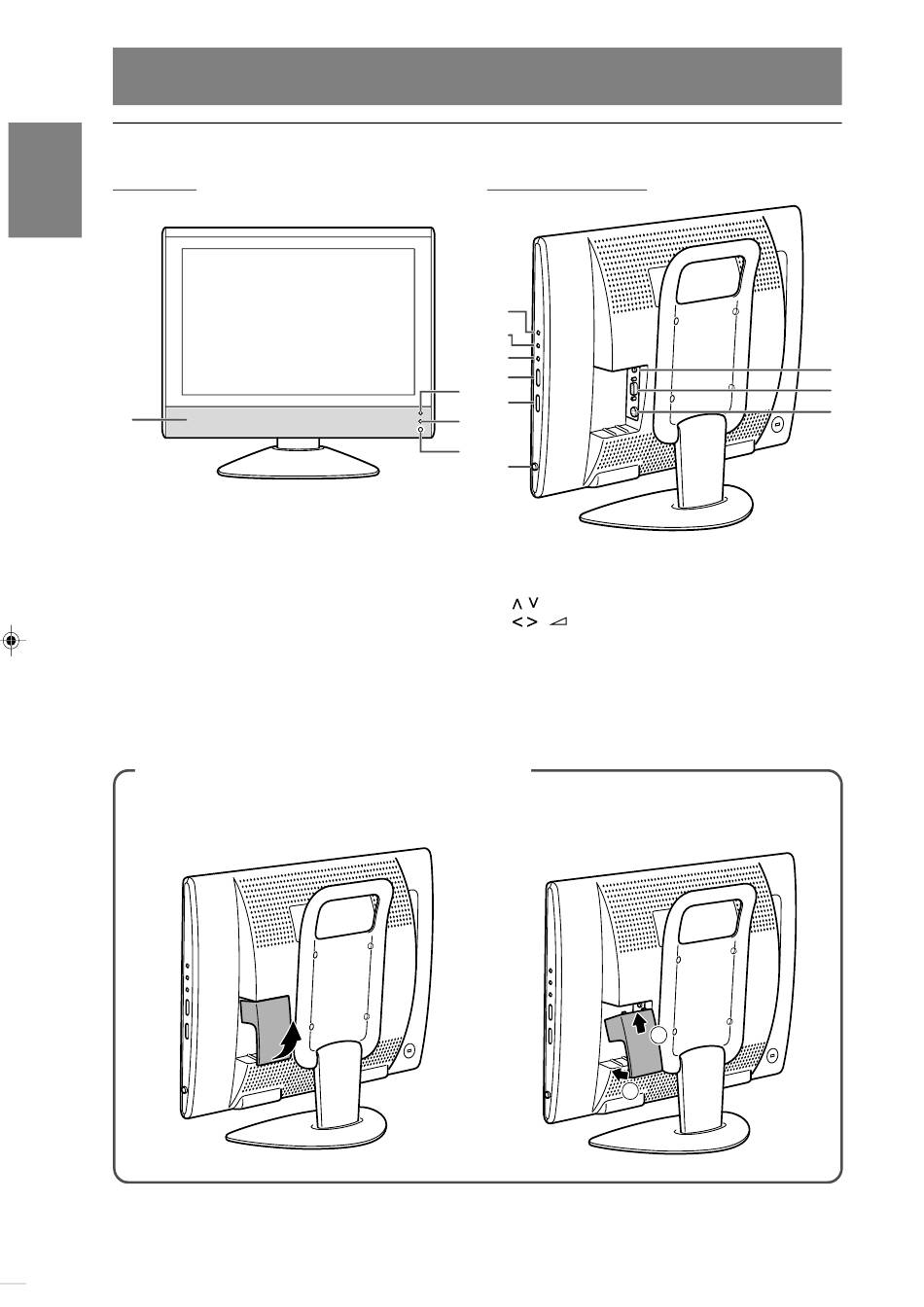

Main unit

Front view
1
1. Speakers
2. Power LED
Green: in use
Red: in standby mode
Orange: in power-saving mode
(only for PC mode)
Off: power off
3. Remote sensor window
4. Headphone terminal
Removing/replacing the terminal cover
Removing the cover
All manuals and user guides at all-guides.com

Product description

2
3
4
E6
Right view/rear view
5
6
7
8
9
10
5. INPUT button
6. MENU button
7. OK/BRIGHT MODE button
8. (channel) buttons
9. ( (volume) /BRIGHT) buttons
10. MAIN POWER button
11. PC audio input terminal
12. PC analog RGB input terminal
13. Power input terminal
Replacing the cover
1
2
11
12
13
