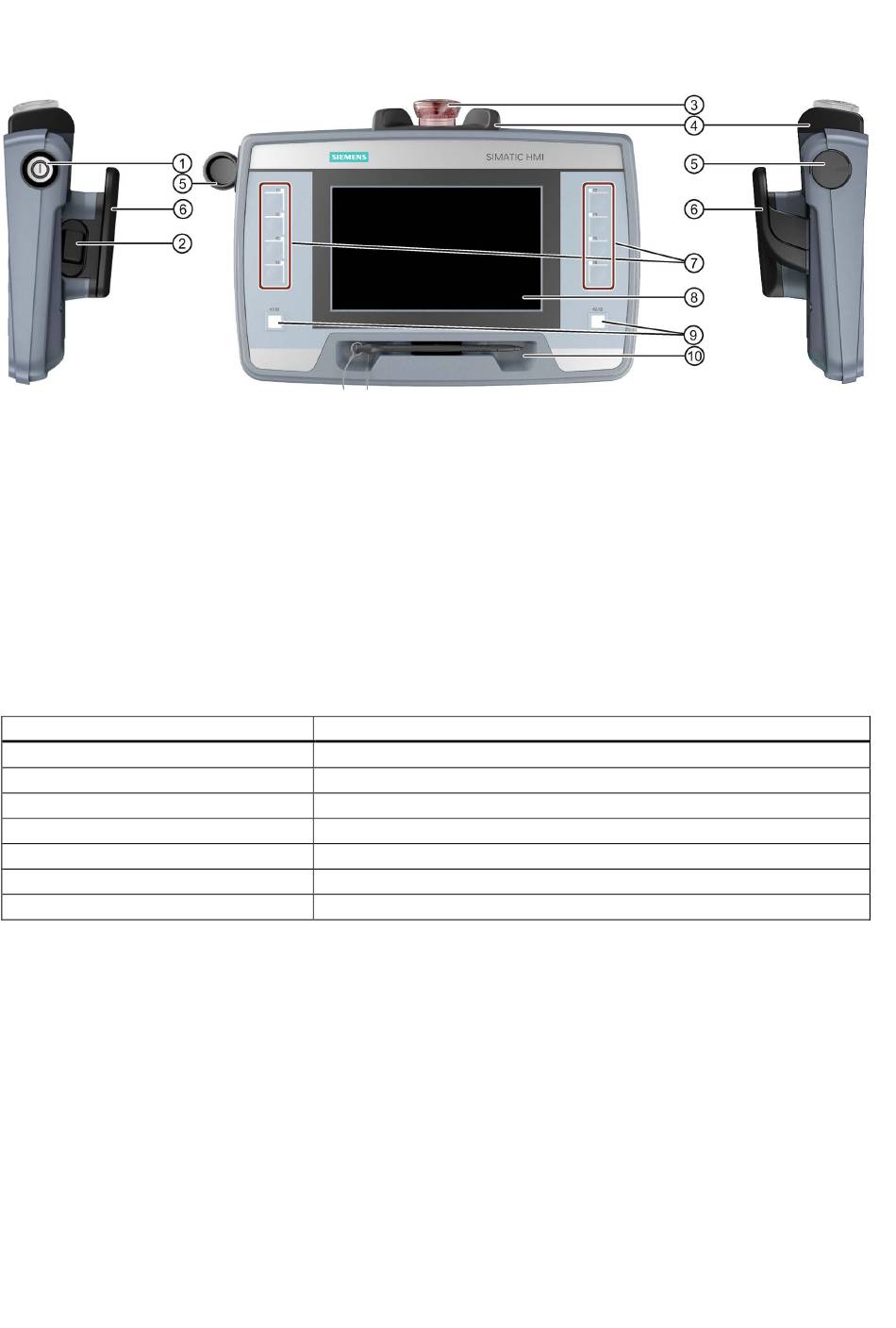

Design of the device

①
Keyswitch
②
Enabling button
③
Emergency stop / stop button
④
Fall protection for the emergency stop / stop button
⑤
Cover cap for USB port
⑥
Handle
⑦
Function key blocks
⑧
Display with touch screen
⑨
Illuminated pushbutton
⑩
Holder with touch pen

Connecting Cable

The following KTP Mobile connecting cables are approved for the device:
Product name and length
KTP Mobile 2 m connecting cable
KTP Mobile 5 m connecting cable
KTP Mobile 8 m connecting cable
KTP Mobile 10 m connecting cable
KTP Mobile 15 m connecting cable
KTP Mobile 20 m connecting cable
KTP Mobile 25m connecting cable
Connection boxes
The following versions of the connection boxes are approved for the device:
● Connection Box, Compact, article number 6AV2125-2AE03-0AX0, production version FS-03 or higher
● Connection Box, Advanced, article number 6AV2125-2AE23-0AX0, production version FS-05
10
Article number
6AV2181-5AF02-0AX0
6AV2181-5AF05-0AX0
6AV2181-5AF08-0AX0
6AV2181-5AF10-0AX0
6AV2181-5AF15-0AX0
6AV2181-5AF20-0AX0
6AV2181-5AF25-0AX0
KTP700F Mobile Arctic
A5E49199858-AA, 02/2020
