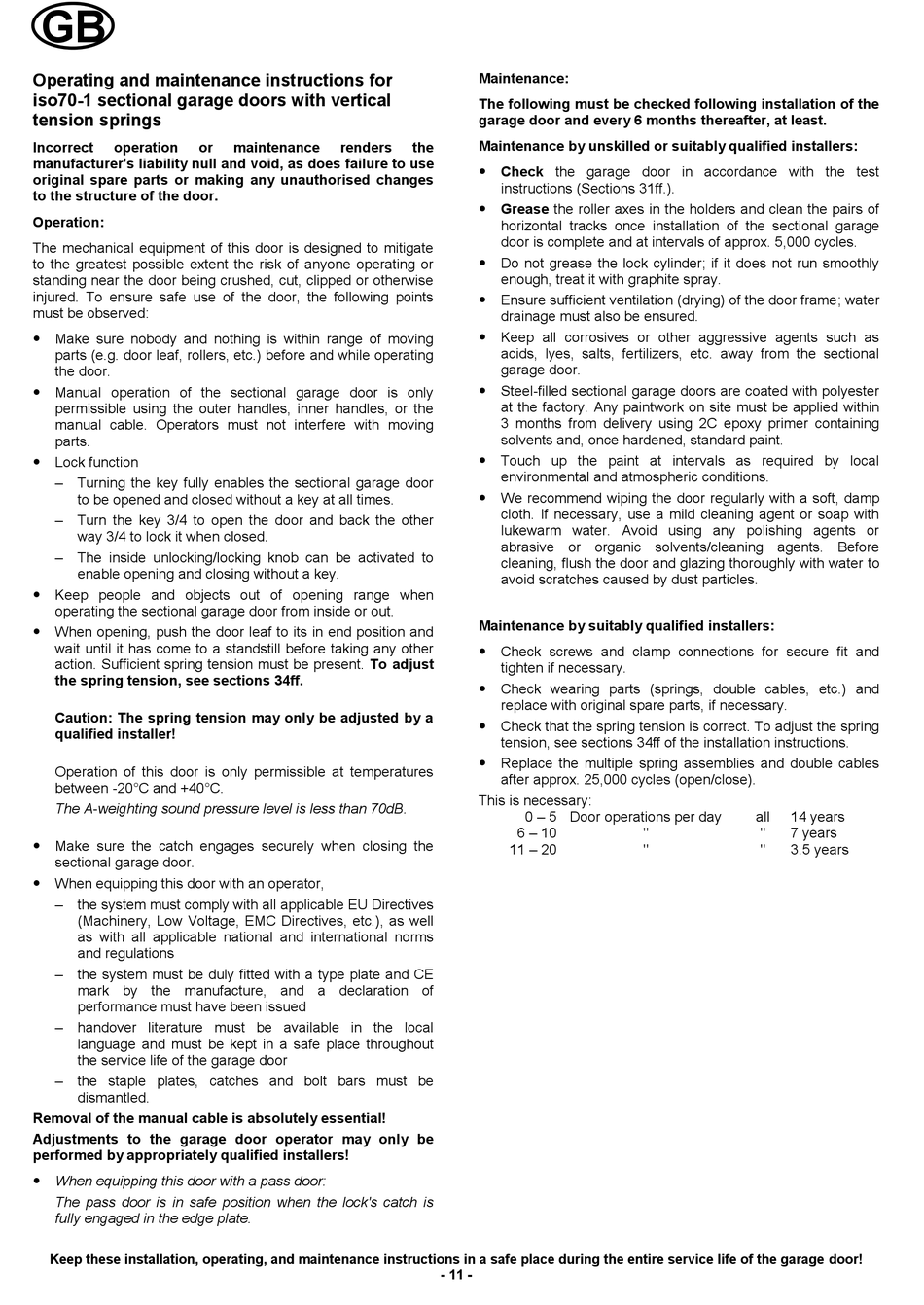

Operating and maintenance instructions for
iso70-1 sectional garage doors with vertical
tension springs
Incorrect operation or
manufacturer's liability null and void, as does failure to use
original spare parts or making any unauthorised changes
to the structure of the door.
Operation:
The mechanical equipment of this door is designed to mitigate
to the greatest possible extent the risk of anyone operating or
standing near the door being crushed, cut, clipped or otherwise
injured. To ensure safe use of the door, the following points
must be observed:
 Make sure nobody and nothing is within range of moving
parts (e.g. door leaf, rollers, etc.) before and while operating
the door.
 Manual operation of the sectional garage door is only
permissible using the outer handles, inner handles, or the
manual cable. Operators must not interfere with moving
parts.
 Lock function
‒ Turning the key fully enables the sectional garage door
to be opened and closed without a key at all times.
‒ Turn the key 3/4 to open the door and back the other
way 3/4 to lock it when closed.
‒ The inside unlocking/locking knob can be activated to
enable opening and closing without a key.
 Keep people and objects out of opening range when
operating the sectional garage door from inside or out.
 When opening, push the door leaf to its in end position and
wait until it has come to a standstill before taking any other
action. Sufficient spring tension must be present. To adjust
the spring tension, see sections 34ff.
Caution: The spring tension may only be adjusted by a
qualified installer!
Operation of this door is only permissible at temperatures
between -20°C and +40°C.
The A-weighting sound pressure level is less than 70dB.
 Make sure the catch engages securely when closing the
sectional garage door.
 When equipping this door with an operator,
‒ the system must comply with all applicable EU Directives
(Machinery, Low Voltage, EMC Directives, etc.), as well
as with all applicable national and international norms
and regulations
‒ the system must be duly fitted with a type plate and CE
mark by the manufacture, and a declaration of
performance must have been issued
‒ handover literature must be available in the local
language and must be kept in a safe place throughout
the service life of the garage door
‒ the staple plates, catches and bolt bars must be
dismantled.
Removal of the manual cable is absolutely essential!
Adjustments to the garage door operator may only be
performed by appropriately qualified installers!
 When equipping this door with a pass door:
The pass door is in safe position when the lock's catch is
fully engaged in the edge plate.
Keep these installation, operating, and maintenance instructions in a safe place during the entire service life of the garage door!
maintenance renders
Maintenance:
The following must be checked following installation of the
garage door and every 6 months thereafter, at least.
Maintenance by unskilled or suitably qualified installers:
the
 Check the garage door in accordance with the test
instructions (Sections 31ff.).
 Grease the roller axes in the holders and clean the pairs of
horizontal tracks once installation of the sectional garage
door is complete and at intervals of approx. 5,000 cycles.
 Do not grease the lock cylinder; if it does not run smoothly
enough, treat it with graphite spray.
 Ensure sufficient ventilation (drying) of the door frame; water
drainage must also be ensured.
 Keep all corrosives or other aggressive agents such as
acids, lyes, salts, fertilizers, etc. away from the sectional
garage door.
 Steel-filled sectional garage doors are coated with polyester
at the factory. Any paintwork on site must be applied within
3 months from delivery using 2C epoxy primer containing
solvents and, once hardened, standard paint.
 Touch up the paint at intervals as required by local
environmental and atmospheric conditions.
 We recommend wiping the door regularly with a soft, damp
cloth. If necessary, use a mild cleaning agent or soap with
lukewarm water. Avoid using any polishing agents or
abrasive or organic solvents/cleaning agents. Before
cleaning, flush the door and glazing thoroughly with water to
avoid scratches caused by dust particles.
Maintenance by suitably qualified installers:
 Check screws and clamp connections for secure fit and
tighten if necessary.
 Check wearing parts (springs, double cables, etc.) and
replace with original spare parts, if necessary.
 Check that the spring tension is correct. To adjust the spring
tension, see sections 34ff of the installation instructions.
 Replace the multiple spring assemblies and double cables
after approx. 25,000 cycles (open/close).
This is necessary:
0 – 5 Door operations per day
6 – 10
11 – 20
- 11 -
all 14 years
" " 7 years
" " 3.5 years
