Bender ISOMETER IR420-D6M Handbuch Seite 15

ID420-D6M1C-2
Isolationskoordination nach IEC 60664-1/IEC 60664-3
Sichere Trennung (verstärkte Isolierung) zwischen
................... (A1, A2) - (21, 22, 24) - (L1, AK, E, KE, M+, M-, T/R)
Versorgungsspannung
Versorgungsspannung U ............................... AC/DC 70...300 V
s
Ausgang, analog
Stromausgang, kurzschlussfest,
keine galvanische Trennung DC 0/4...20 mA (0...20 mA)*
Schaltglieder
Anzahl .................................................................1 Wechsler (K2)
Arbeitsweise .............. Ruhestrom n.c./Arbeitsstrom n.o. (n.o.)*
Elektrische Lebensdauer bei Bemessungsbedingungen ..............
....................................................................... 10000 Schaltspiele
Kontaktdaten nach IEC 60947-5-1
Bemessungsbetriebsspannung AC .................... 230 V....... 230 V
Gebrauchskategorie AC .................................... AC 13....... AC 14
Bemessungsbetriebsstrom AC ...............................5 A............ 3 A
Bemessungsbetriebsspannung DC .. 220 V ....... 110 V.......... 24 V
Gebrauchskategorie DC ................... DC 12 ....... DC 12....... DC 12
Bemessungsbetriebsstrom DC ......... 0,1 A ........ 0,2 A............ 1 A
Mindeststrom ......................................... 1 mA bei AC/DC ≥ 10 V
AG70 Induktive Last

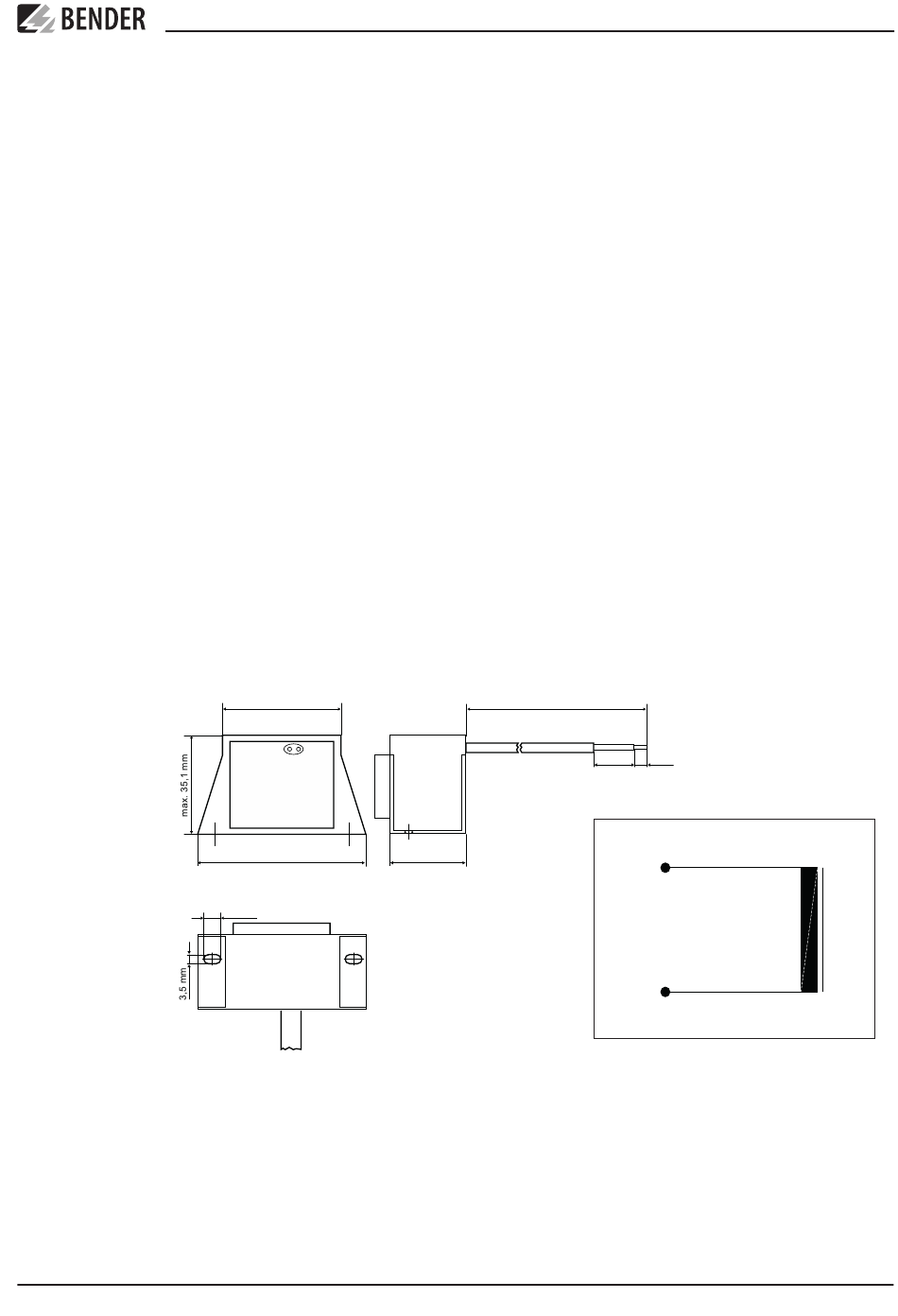

Maßbild und Anschlussschema
Technische Daten AG70
Wicklung .................................................................570 Ω ±15 %
Gesamtgewicht ...................................................................175 g
Nennspannung .................................................... AC 230 V 50 Hz
Nennstrom .........................................................................20 mA
Toleranz U ........................................................................+15 %
s
Betriebsart .............................................................. Dauerbetrieb
Isolierklasse ...............................................................................B
Arbeitstemperatur .............................................-25°C...+70 °C
max. 40,9 mm
max. 61,5 mm
6,7 mm
ID420-D6M1C-2
Insulation coordination acc. to IEC 60664-1/IEC 60664-3
Protective separation (reinforced insulation) between
................... (A1, A2) - (21, 22, 24) - (L1, AK, E, KE, M+, M-, T/R)
Supply voltage
Supply voltage Us .......................................... AC/DC 70...300 V
Output, analogue
Current output, short-circuit proof,
no galvanic separation ................ DC 0/4...20 mA (0...20 mA)*
Switching elements
Number of .......................................... 1 changeover contact (K2)
Operating principle ......................................................................
..............................N/O operation n.o., N/C operation n.c. (n.o.)*
Service life, number of cycles .............................................10000
Contact data according IEC 60947-5-1
Rated operational voltage AC .......................... 230 V ........230 V
Utilisation category AC ..................................... AC 13 ....... AC 14
Rated operational current AC ................................5 A ........... 3 A
Rated operational voltage DC ......... 220 V....... 110 V ......... 24 V
Utilisation category DC .................... DC 12........DC 12 ....... DC 12
Rated operational current DC ............0.1 A........ 0.2 A ........... 1 A
Minimum current .....................................1 mA at AC/DC ≥ 10 V
AG70 inductive load
Drawing with principal dimensions
1000 mm ± 10 mm
max. 33,3mm
Technical data AG70
Wining ....................................................................570 Ω ±15 %
Total wight .........................................................................175 g
Rated voltage ....................................................... AC 230 V 50 Hz
Rated current .....................................................................20 mA
Tolerance U .....................................................................+ 15 %
s
Mode .......................................................................... continuous
Insulation class ..........................................................................B
Operating temperature .................................... -25 °C...+70 °C
IR420-D6M(1C)_D00030_06_M _DEEN/ 12.2019
ISOMETER® IR420-D6M(1C)
35 mm 5 mm
5
sw
prim
bl
1
15
