NECESSARY TOOLS : Wrench 13 + Wrench 17 + Wrench 24 - Level + Pencil + Ruler - Drilling machine + Drill Ø 14 + saw
REMEMBER:
• Our flush valves must be installed by professional installers in accordance with current regulations and recommendations in your country, and the specifications of the
fluid engineer.
• Check pipe sizing to avoid water hammer, excessive pressure loss or reduced flow rates (see our brochure or website).
• Protect the installation with filters, water hammer absorbers and pressure reducers to reduce maintenance frequency (Recommended pressure 1 - 3 bar).
• Fit stopcocks close to the valve to facilitate maintenance.
• The pipe work, stopcocks, valves and all sanitary ware must be checked regularly.
CLEANING & SERVICING:
• Cleaning chrome: Do not use abrasive, chlorine or acid based cleaning products. Clean with soapy water using a cloth or a sponge.
• Frost protection: Drain the pipes and operate the valve several times to drain any remaining water. Remove the cartridge if there is frost or when the valves are not in use.

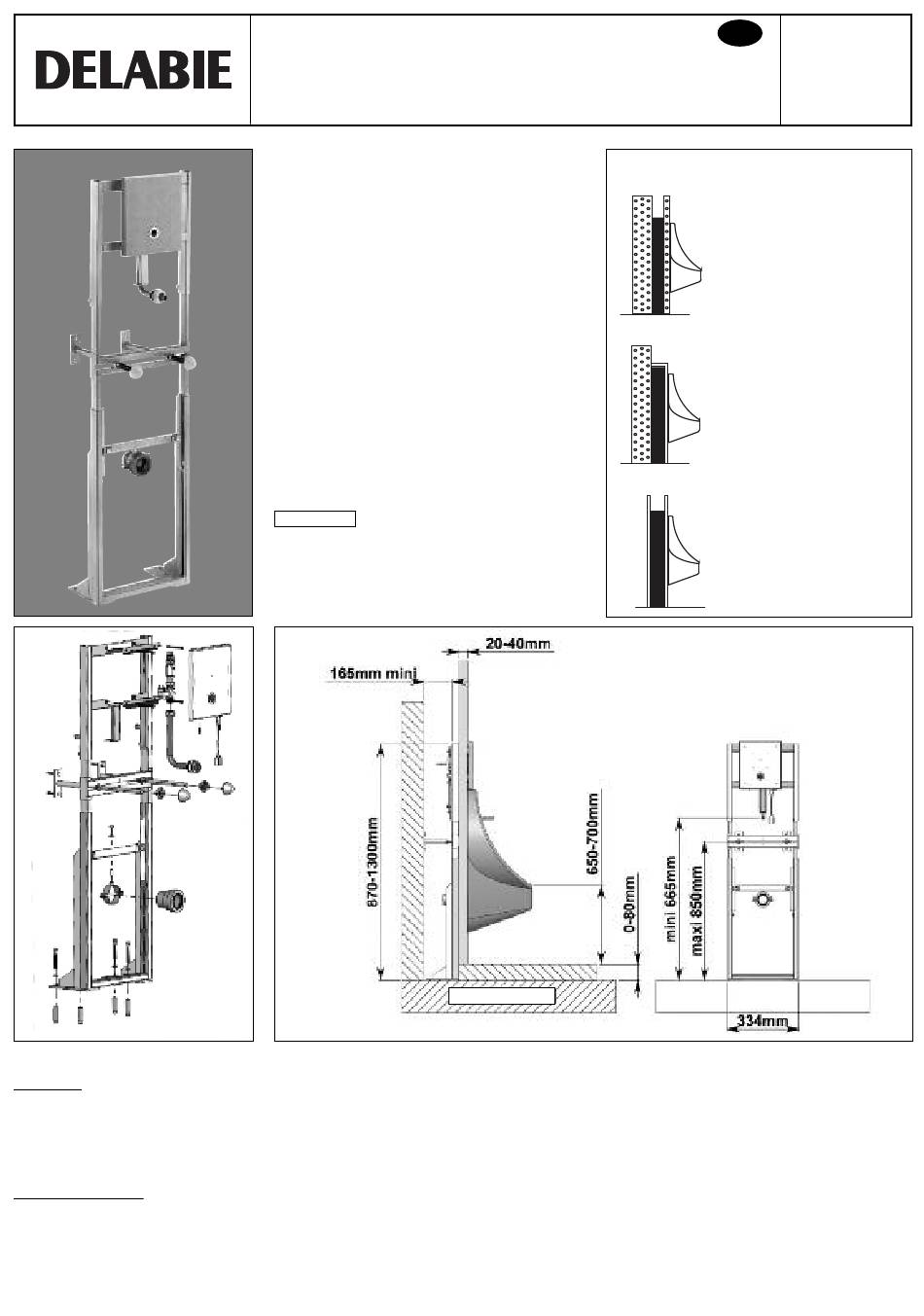

TEMPOFIX Urinal electronic
SELF-SUPPORTING FRAME
WITH ANCHORING WALL CLIPS
for wall hung urinal, equipped
with electronic control valve.
Anti-corrosive electrogalvanized steel
frame, with single-piece re-inforced base
and frame, for load-bearing floor fixing,
and anchoring wall clips.
Delivered ready for fitting with electronic
control valve TEMPOMATIC Ø 12,
presence detector on stainless steel wall
plate 225x200, inlet tube Ø 16, joint Ø 35
and waste sleeve with sealing adapter
Ø 50, without siphon waste.
satin finish stainless steel plate
542910
1xBA13 or 2xBA13 or 1xBA25 + tile
concrete 350KG
GB
NT 542
INSTALLATION TYPES :
Integrated into a LIGHT WEIGHT
STRUCTURE
Integrated BEHIND GYPSUM WALL
BOARD
Integrated into a LIGHT WEIGHT
PARTITION WITH DOUBLE METALLIC
STRUCTURE
(single reinforced structure is enough)
Indice : B
