Installation / Connection

●
Before Installing the Product
Carefully read "PRECAUTIONS" in this document as well as "PRECAUTIONS" in the Instructions for
Use.
Installation Requirements
When installing the product, ensure that there is adequate space around the sides, back and top of
the monitor.
Attention
• Position the monitor so that there is no light to interfere with the screen.
●
Connecting Cables
For information about the compatible resolutions of the monitor, refer to "Compatible Resolutions" in
the Instructions for Use.
1. Connect signal cables.
Check the shapes of the connectors, and connect the cables. After connecting the DVI cable, tighten the
fasteners to secure the connector.
Attention
• Be sure to use the cables attached to the product.
• The DisplayPort connectors of the monitor consist of input and output connectors. When connecting the
monitor to a PC, connect the cable to the input connector.
• To set up a daisy-chain connection, it is necessary to set the DisplayPort version to "1.2". For details on
how to perform setup, refer to the Installation Manual (on the CD-ROM).
• Visit the EIZO website for information about monitors and graphic boards that can be used for the daisy-
chain connection: http://www.eizoglobal.com
• Before using a daisy-chain connection, remove the cap of the output connector on the monitor that
outputs signals.

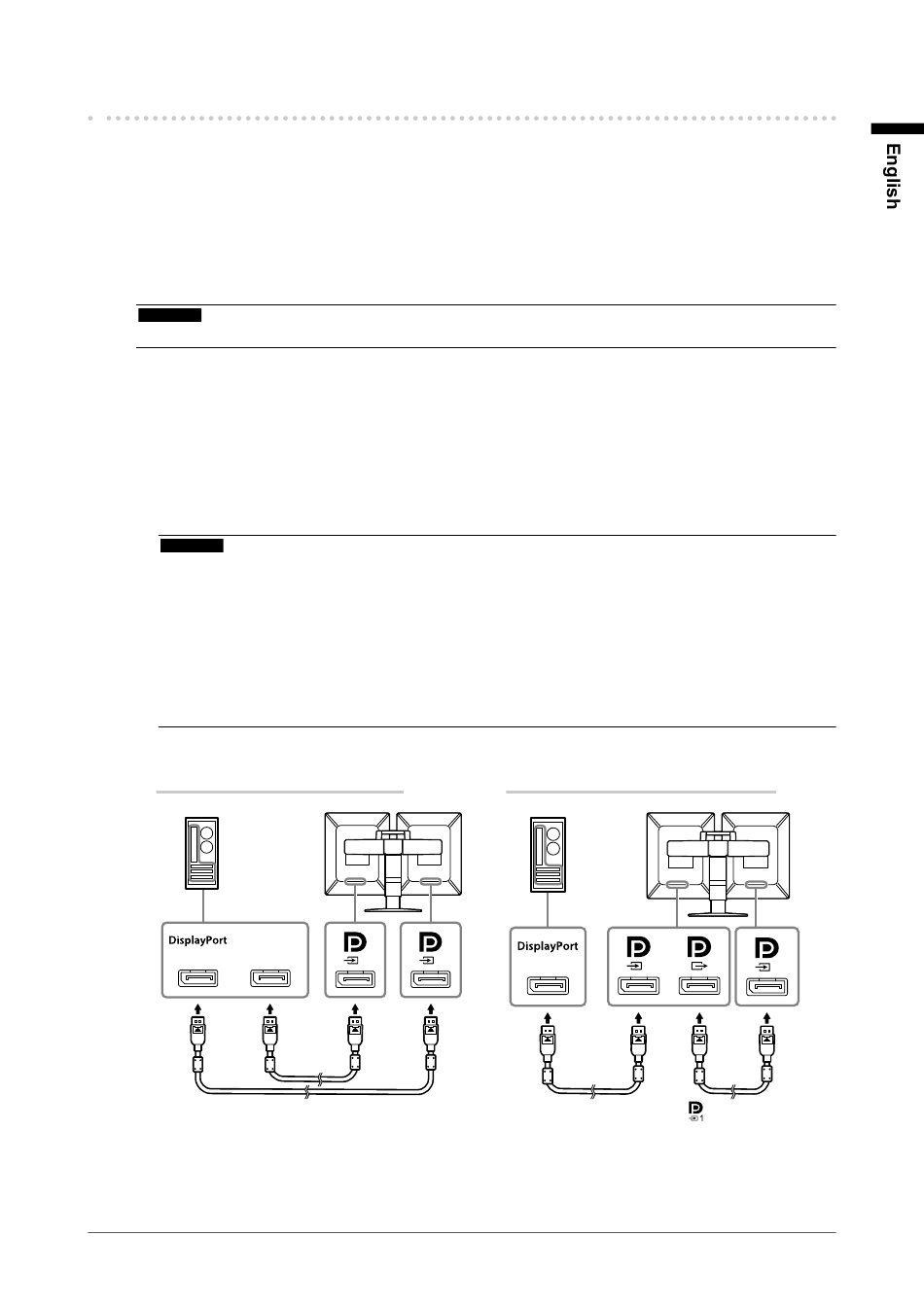

Connection examples:
Connecting each monitor to a PC
2. Plug the power cord into a power outlet and the power connector on the monitor.
Setting up a daisy-chain connection
*1
*1 For the GX560, connect to
*2 Use attached "PP100".
*1, *2
.
3
