Technical Information
Power Interconnections
Connection P6 – 24 Vdc Connector
This is a dedicated 24 Vdc, 100 mA maximum, output for the optional
Turbo-V 70 PCB pump cooling fan.
The mating connector and cable are provided assembled with the air
cooling kit.

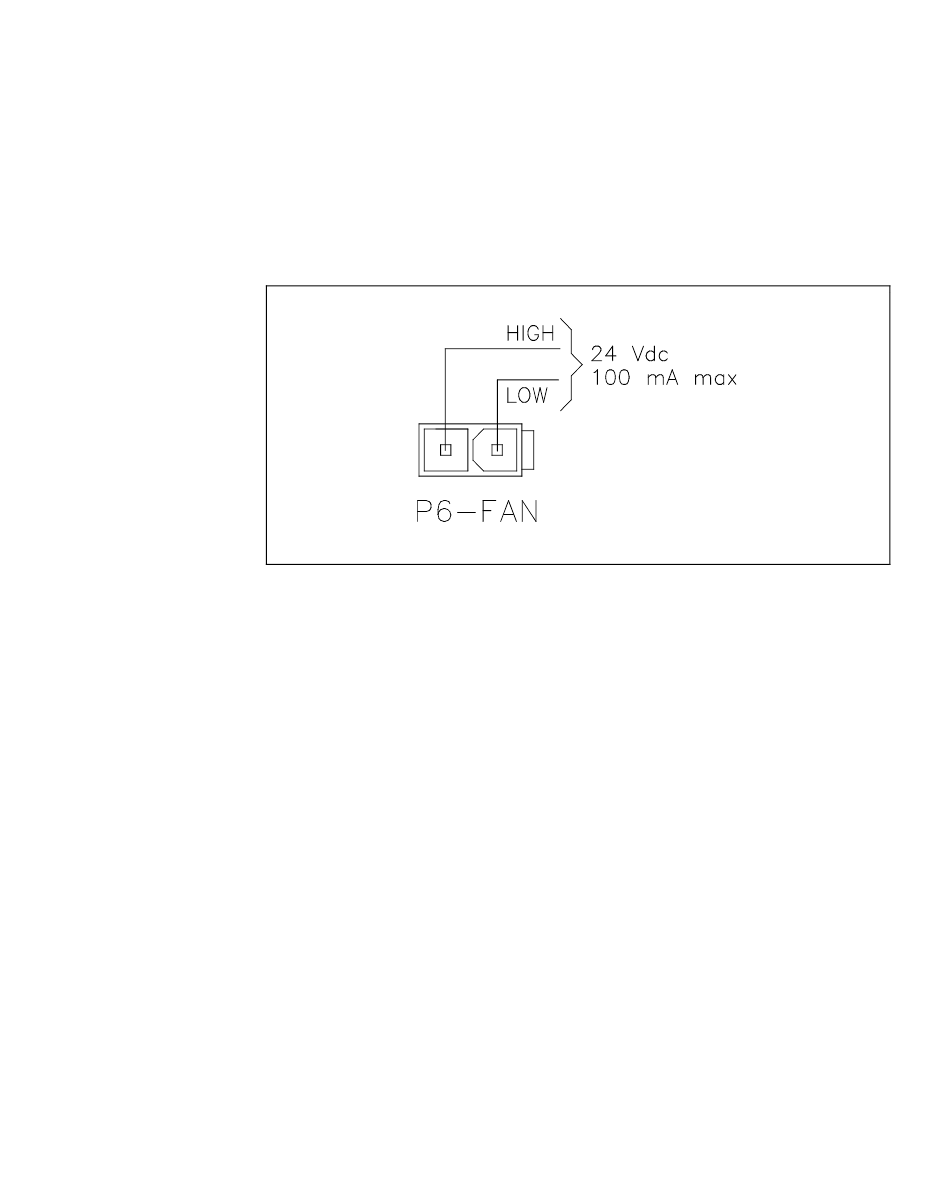

Figure 8 Fan Connector
