Turbo-V 70 PCB Controller Description

The controller is a solid-state frequency converter which is driven by
a single chip microcomputer and is composed of a PCB which
includes power supply, analog and input/output section,
microprocessor and digital section. The power supply converts the
single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage,
medium frequency output which is required to power the Turbo-V
pump. The microcomputer generates the variable output frequency
and controls the 3-phase output voltage according to the software
and the gas load condition of the pump. Moreover, it manages signals
from sensors, input/output connection information, and gives
outputs for a fully automatic operation. A dedicated non-volatile
RAM is used to store pump operating parameters and the
input/output programmed information upon failure for a period of 10
years accumulated off time. The controller can be operated via
remote signals through input/output connectors.

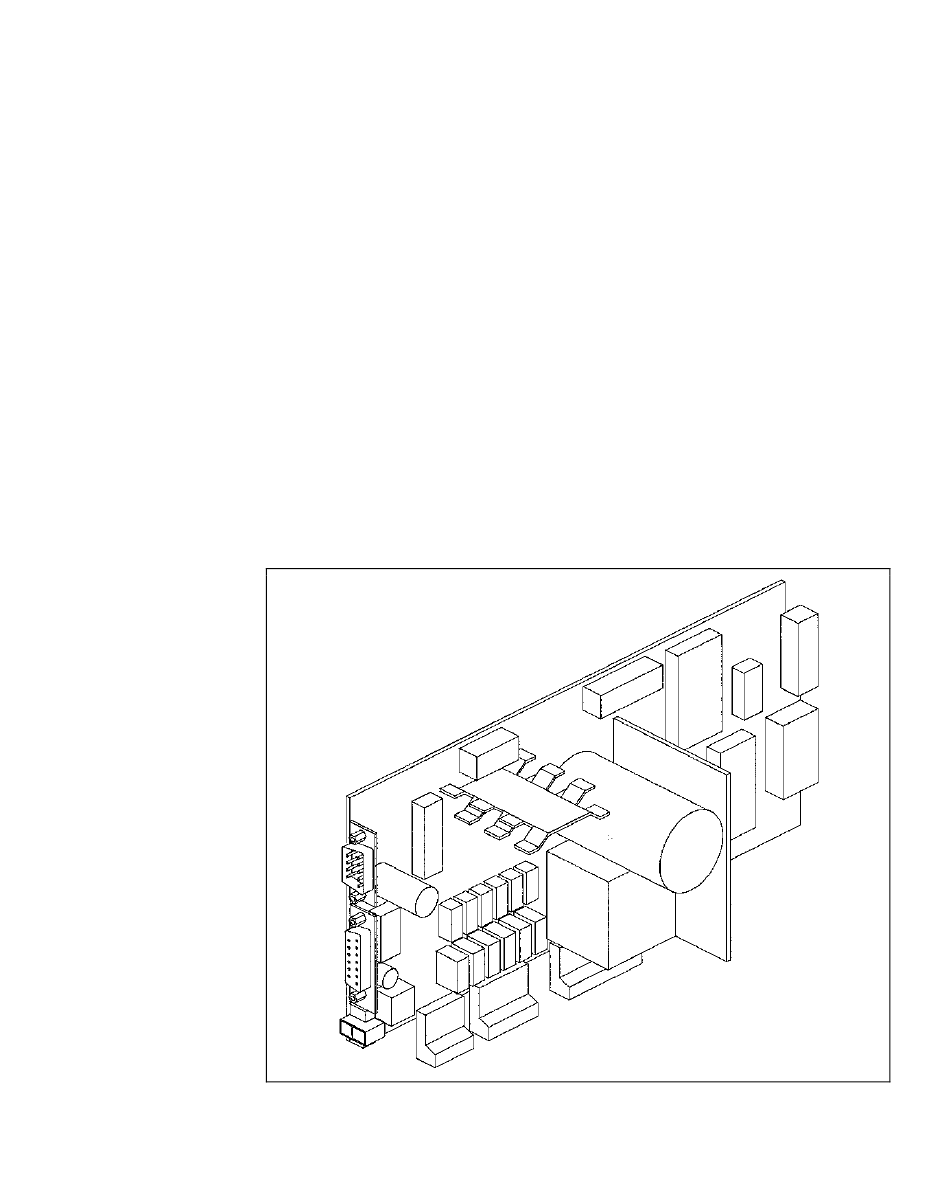

Figure 5
