English (GB) Installation and operating instructions
Original installation and operating instructions
CONTENTS
1.
2.
3.
4.
5.
6.
Warning
Prior to installation, read these
installation and operating instructions.
Installation and operation must comply
with local regulations and accepted
codes of good practice.
Prior to installation, read the
installation and operating instructions
of the relevant CIM module and of the
DDA dosing pump.
1. Symbols used in this document
Warning
If these safety instructions are not
observed, it may result in personal
injury.
If these safety instructions are not
observed, it may result in malfunction
or damage to the equipment.
Notes or instructions that make the job
Note
easier and ensure safe operation.
4
2. General information
2.1 Applications
Page
The Grundfos E-Box 200 (E-Box = Extension Box)
must only be used as a communication interface
4
between a SMART digital DDA dosing pump and a
4
Modbus network.
4
The E-Box 200 contains a CIM 200 module
4
(CIM = Communication Interface Module).
5
For internal communication between the E-Box and
5
the dosing pump, GENIbus is used.
5
2.2 Product overview
5
5
6
5
7
7
7
H2
7
H3
H1
1

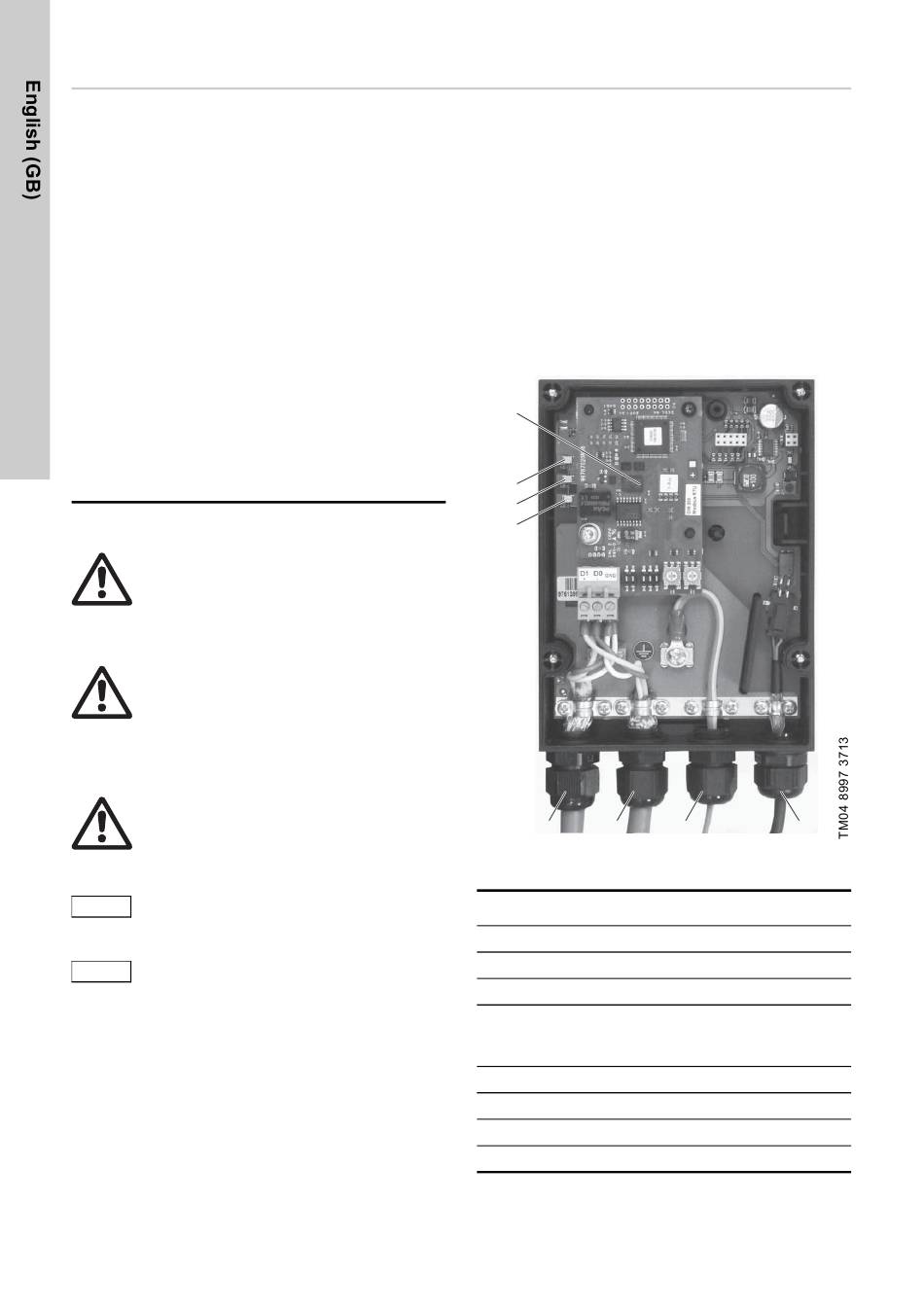

Fig. 1
E-box overview
Pos.
Description
1
2
3
Optional functional earth connection*
Pre-assembled plug connection to dosing
4
pump (contains power supply and GENIbus
connection)
5
CIM 200 module
LED: GENIbus Rx, yellow
LED: Power, green
LED: GENIbus Tx, red
* depending on local network installation.
2
3
4
