The Display

The Compass Multiboiler features a graphic touchscreen, activated by finger touch. The display can
assume different formats (display format A/B/C/D), depending on the menu/ mode. See below the
different screens and their functions.

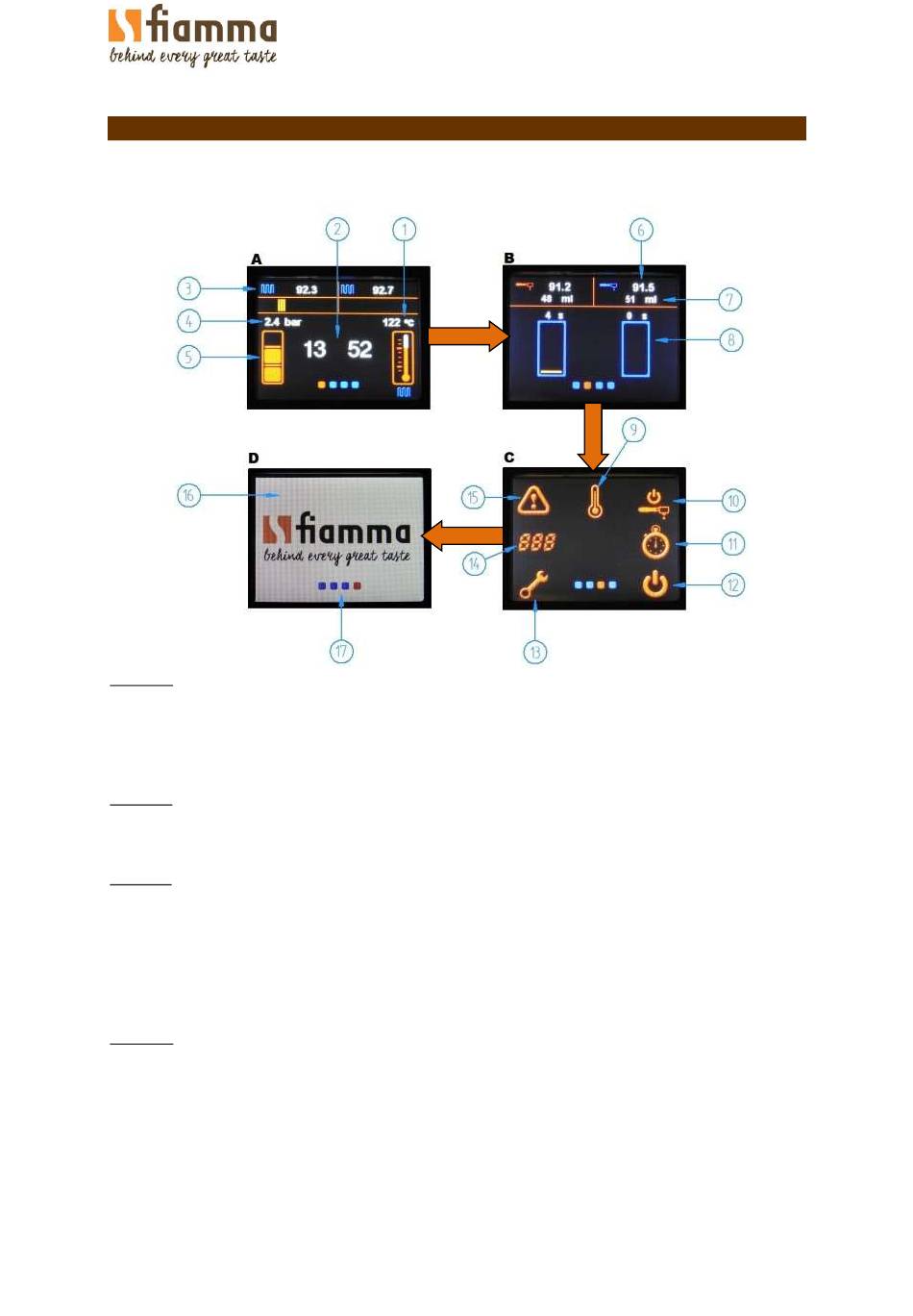

Display A
1. Steam Boiler temperature
2. Clock
3. Temperature of coffee water boilers/ groups
4. Water net pressure
5. Water gauge in the steam boiler
Display B
6. Group temperature
7. Quantity of water consumed during extraction
8. Brewing pilot: Tricolored graphic that indicates the extraction time
Display C
9. Temperature setting for coffee water boilers/ steam Boiler/ groups
10. On/Off for each group circuit, with Eco-mode for water/steam Boiler
11. Auto ON/Off
12. On/ Off Electronics
13. Water filter and service cycle counters
14. Consumption counters
15. Alarms
Display D
16. Advertisement screen
17. Screen format options (displays A/B/C/D)
