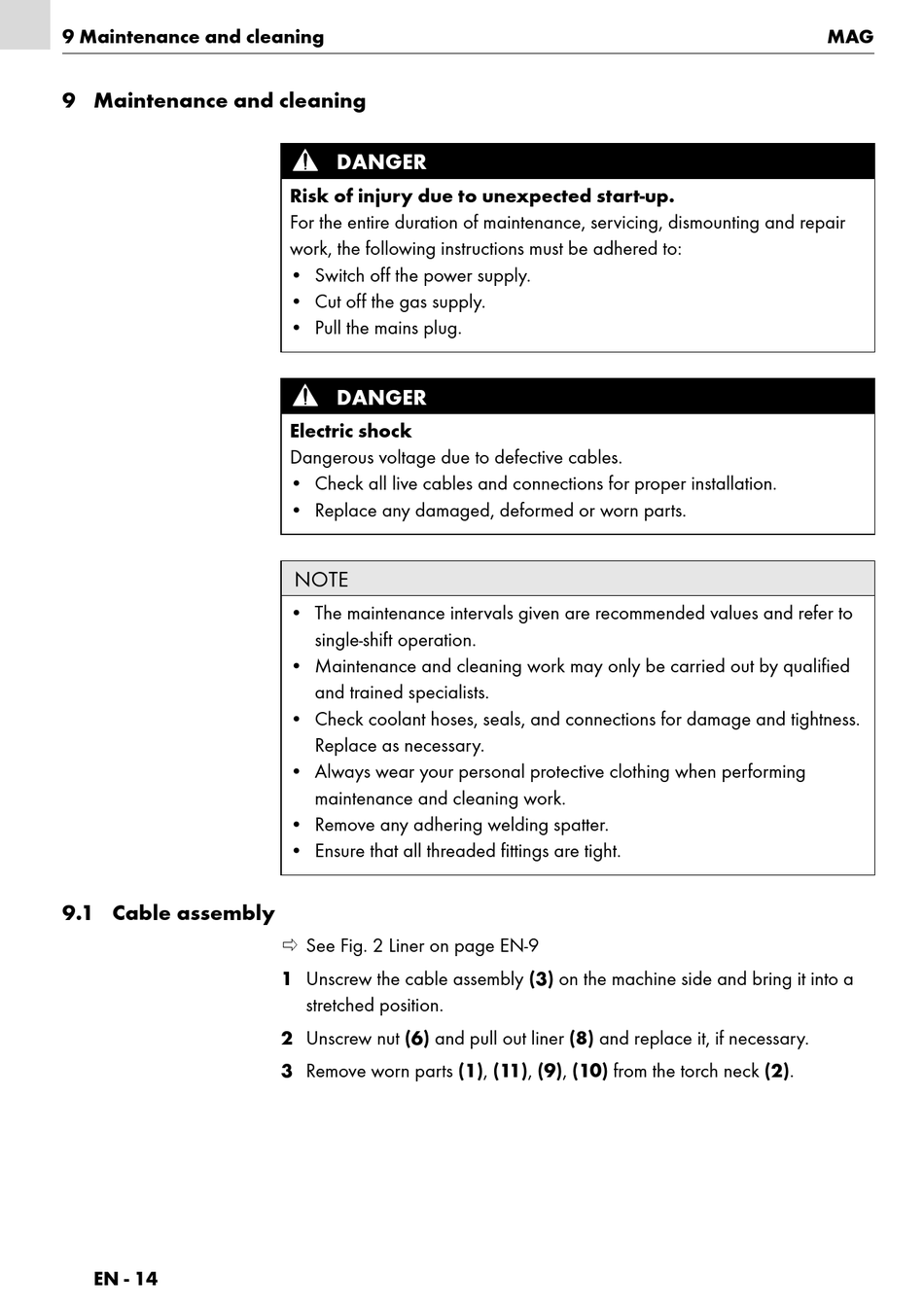

9 Maintenance and cleaning

9 Maintenance and cleaning

9.1 Cable assembly

EN - 14
DANGER
Risk of injury due to unexpected start-up.
For the entire duration of maintenance, servicing, dismounting and repair
work, the following instructions must be adhered to:
• Switch off the power supply.
• Cut off the gas supply.
• Pull the mains plug.
DANGER
Electric shock
Dangerous voltage due to defective cables.
• Check all live cables and connections for proper installation.
• Replace any damaged, deformed or worn parts.
NOTE
• The maintenance intervals given are recommended values and refer to
single-shift operation.
• Maintenance and cleaning work may only be carried out by qualified
and trained specialists.
• Check coolant hoses, seals, and connections for damage and tightness.
Replace as necessary.
• Always wear your personal protective clothing when performing
maintenance and cleaning work.
• Remove any adhering welding spatter.
• Ensure that all threaded fittings are tight.
 See Fig. 2 Liner on page EN-9
1 Unscrew the cable assembly (3) on the machine side and bring it into a
stretched position.
2 Unscrew nut (6) and pull out liner (8) and replace it, if necessary.
3 Remove worn parts (1), (11), (9), (10) from the torch neck (2).
MAG
