2 Product Description

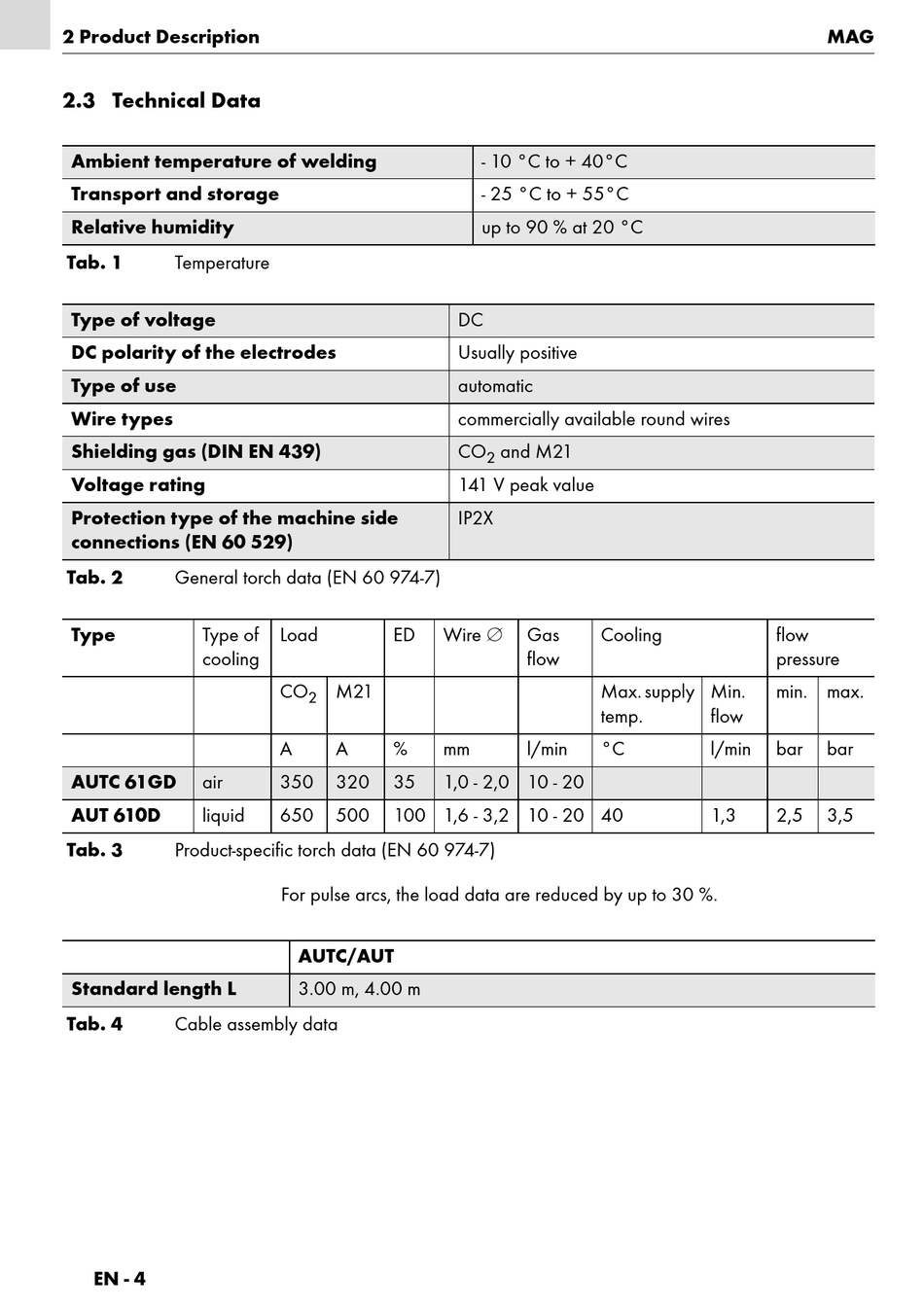

2.3 Technical Data

Ambient temperature of welding
Transport and storage
Relative humidity
Tab. 1 Temperature
Type of voltage
DC polarity of the electrodes
Type of use
Wire types
Shielding gas (DIN EN 439)
Voltage rating
Protection type of the machine side
connections (EN 60 529)
Tab. 2 General torch data (EN 60 974-7)
Type Type of
cooling
AUTC 61GD air
AUT 610D liquid
Tab. 3 Product-specific torch data (EN 60 974-7)
Standard length L
Tab. 4 Cable assembly data
EN - 4
Wire 
Load ED
CO M21
2
A A % mm
350 320 35 1,0 - 2,0 10 - 20
650 500 100 1,6 - 3,2 10 - 20 40
For pulse arcs, the load data are reduced by up to 30 %.
AUTC/AUT
3.00 m, 4.00 m
- 10 °C to + 40°C
- 25 °C to + 55°C
up to 90 % at 20 °C
DC
Usually positive
automatic
commercially available round wires
CO and M21
2
141 V peak value
IP2X
Gas Cooling
flow
Max. supply
temp.
l/min °C
MAG
flow
pressure
Min. min. max.
flow
l/min bar bar
1,3 2,5 3,5
