Changing hose connection

CAUTION!
Damage or malfunctions due to incorrect screw joints.
Incorrect screw joints damage the device or impair its functionality.
"9.1 Safety instructions" on page 15 Please note!
→
Loosen cylinder head screws.
→
Remove hose connection.
→
Remove old O-ring, clean sealing point.
→
Grease new O-ring with Multi-Silikonfett OKS 1110
(silicone grease).
→
Insert the O-ring into the designated bore.
→
Attach new hose connection.
→
Screw in cylinder head screws in a criss-cross pattern
(tightening torque 2 Nm ± 0.2 Nm).
→
Check the device for function and leaks.
Use only hoses which have a uniform hose thickness and a
central cross-section.
18
english
Type 8835
Maintenance,troubleshooting

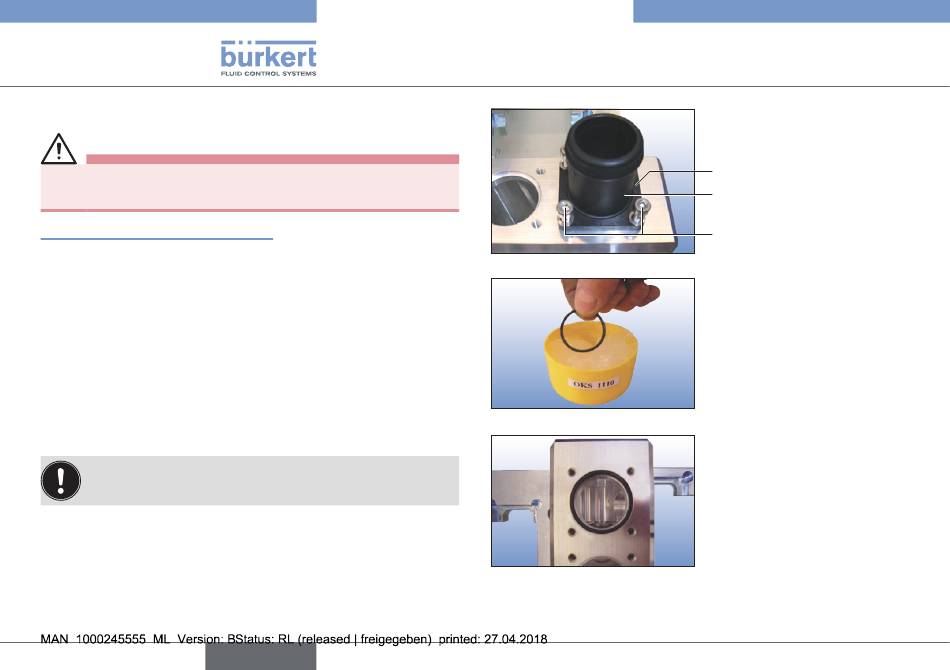

Fig. 9: Grease new O-ring...
Fig. 10: ... and insert into designated bore.
Collar flange
Hose connection
Cylinder head screws (4x)
