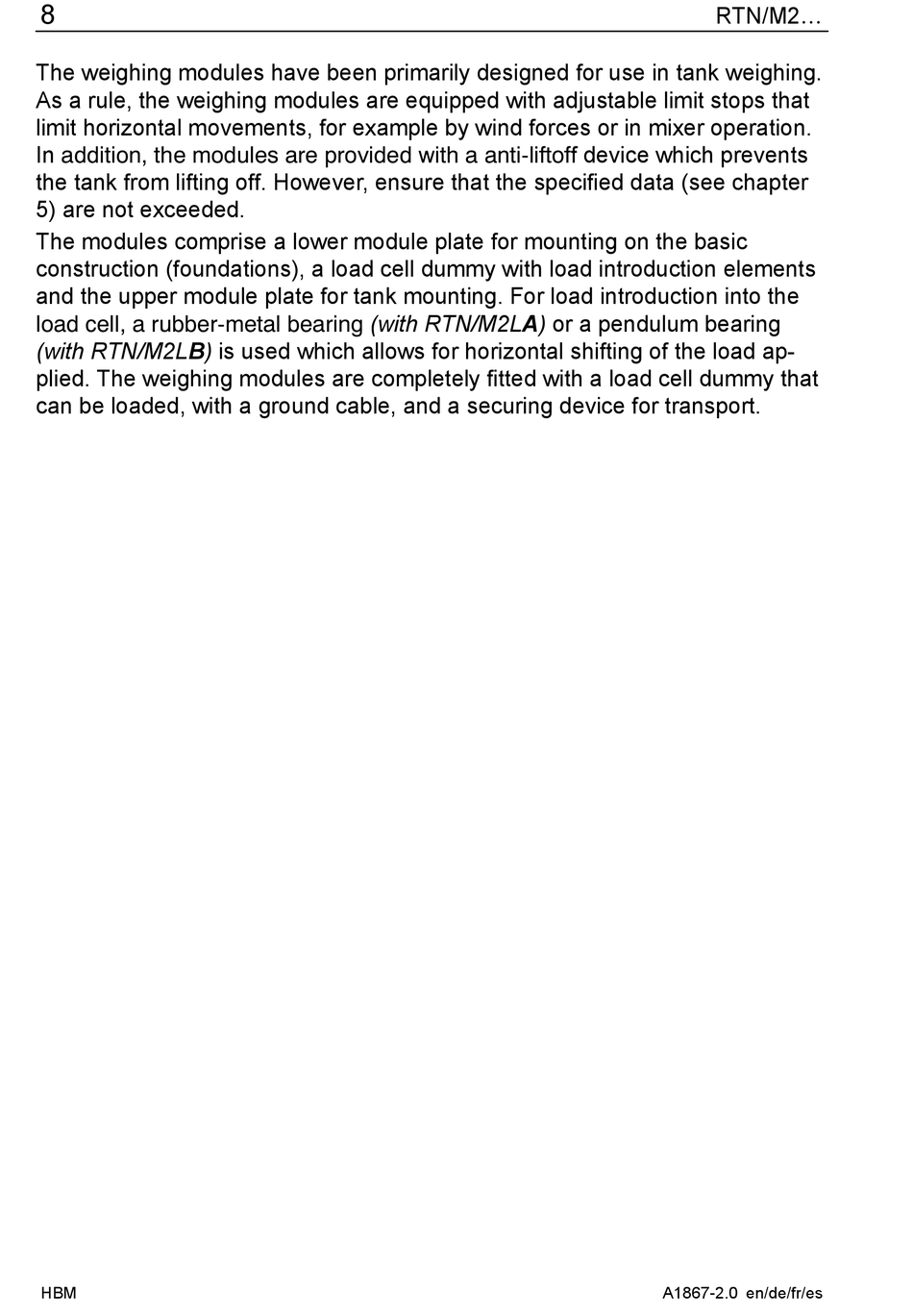

The weighing modules have been primarily designed for use in tank weighing.
As a rule, the weighing modules are equipped with adjustable limit stops that
limit horizontal movements, for example by wind forces or in mixer operation.
In addition, the modules are provided with a anti‐liftoff device which prevents
the tank from lifting off. However, ensure that the specified data (see chapter
5) are not exceeded.
The modules comprise a lower module plate for mounting on the basic
construction (foundations), a load cell dummy with load introduction elements
and the upper module plate for tank mounting. For load introduction into the
load cell, a rubber‐metal bearing (with RTN/M2LA) or a pendulum bearing
(with RTN/M2LB) is used which allows for horizontal shifting of the load ap-
plied. The weighing modules are completely fitted with a load cell dummy that
can be loaded, with a ground cable, and a securing device for transport.
