RTN/M2
1

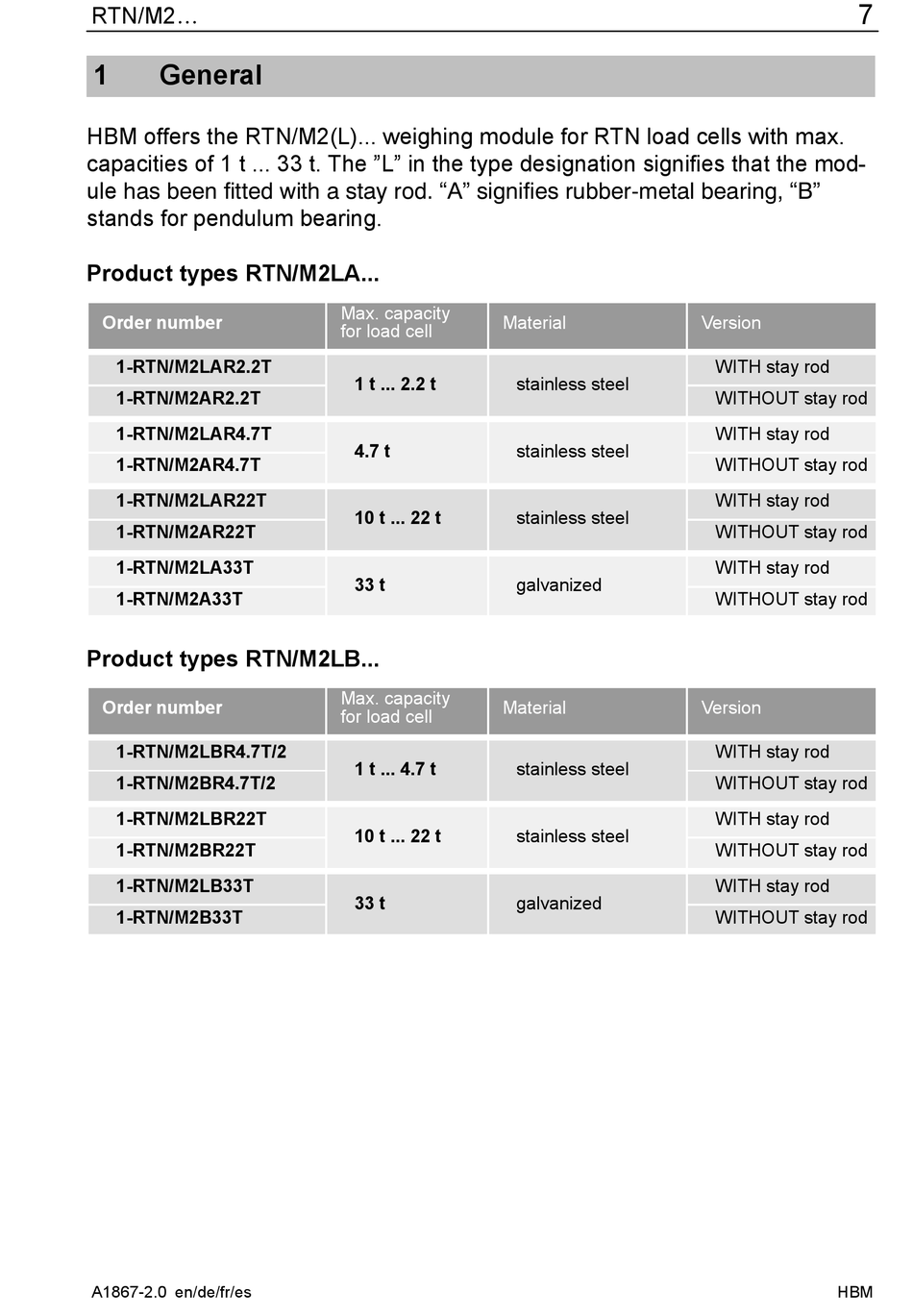

General

HBM offers the RTN/M2(L)... weighing module for RTN load cells with max.
capacities of 1 t ... 33 t. The "L" in the type designation signifies that the mod-
ule has been fitted with a stay rod. "A" signifies rubber‐metal bearing, "B"
stands for pendulum bearing.
Product types RTN/M2LA...
Order number
1-RTN/M2LAR2.2T
1-RTN/M2AR2.2T
1-RTN/M2LAR4.7T
1-RTN/M2AR4.7T
1-RTN/M2LAR22T
1-RTN/M2AR22T
1-RTN/M2LA33T
1-RTN/M2A33T
Product types RTN/M2LB...
Order number
1-RTN/M2LBR4.7T/2
1-RTN/M2BR4.7T/2
1-RTN/M2LBR22T
1-RTN/M2BR22T
1-RTN/M2LB33T
1-RTN/M2B33T
A1867-2.0 en/de/fr/es
Max. capacity
Material
for load cell
1 t ... 2.2 t
4.7 t
10 t ... 22 t
33 t
Max. capacity
Material
for load cell
1 t ... 4.7 t
10 t ... 22 t
33 t
stainless steel
stainless steel
stainless steel
galvanized
stainless steel
stainless steel
galvanized
7
Version
WITH stay rod
WITHOUT stay rod
WITH stay rod
WITHOUT stay rod
WITH stay rod
WITHOUT stay rod
WITH stay rod
WITHOUT stay rod
Version
WITH stay rod
WITHOUT stay rod
WITH stay rod
WITHOUT stay rod
WITH stay rod
WITHOUT stay rod
