HBM RTN/M2 series Montageanleitung Seite 18

18
RTN/M2

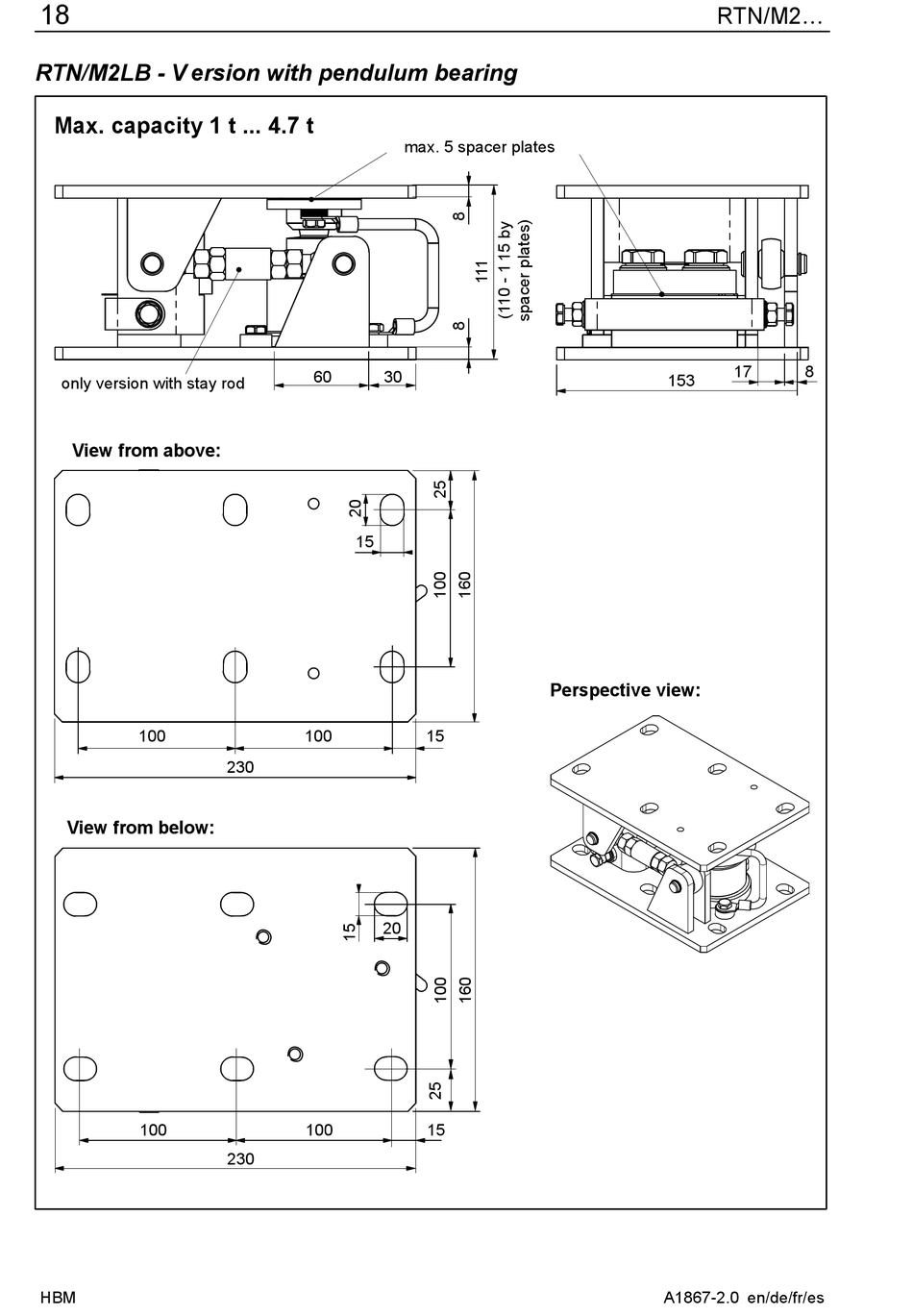

RTN/M2LB - V ersion with pendulum bearing
Max. capacity 1 t ... 4.7 t
max. 5 spacer plates
17 8
60 30
153
only version with stay rod
View from above:
15
Perspective view:
100 100 15
230
View from below:
20
100 100 15
230
