How to use the enclosed grease tube
NOTE
Before fitting the load cell, the enclosed grease must be applied to the
upper thrust piece and to the underside of the pendulum bearing (with
RTN...B) in order to minimize friction between the inside surface of the
thrust piece and the load introduction element of the RTN load cell or
pendulum bearing.
Use of the spacer plates provided
The scope of delivery of the module includes 2 x 5 spacer plates. They are
used for the vertical adjustment of the module. Five plates max. are to be
fitted underneath the upper module plate, and five plates max. between the
base and the cross bracket of the anti‐liftoff device
Ensure that all screws are fitted with U‐washers.
Air gap: 1 mm
5 plates max. for height adjustment

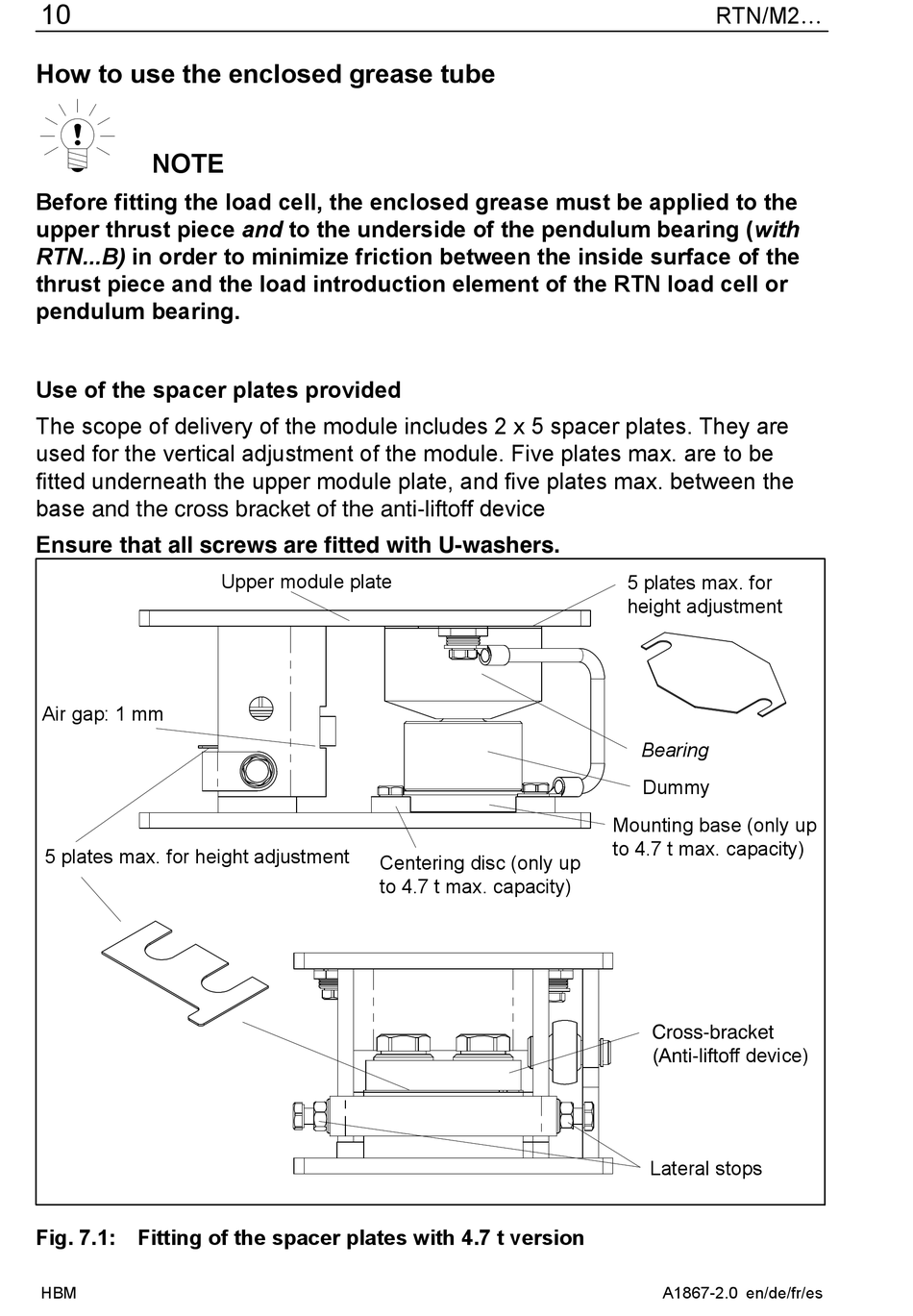

Fig. 7.1: Fitting of the spacer plates with 4.7 t version
HBM
Upper module plate
Centering disc (only up
to 4.7 t max. capacity)
RTN/M2
5 plates max. for
height adjustment
Bearing
Dummy
Mounting base (only up
to 4.7 t max. capacity)
Cross‐bracket
(Anti‐liftoff device)
Lateral stops
