HBM RTN/M2 series Montageanleitung Seite 23

RTN/M2
Scope of supply: Complete weighing module mounted with stay rod without
Attention:

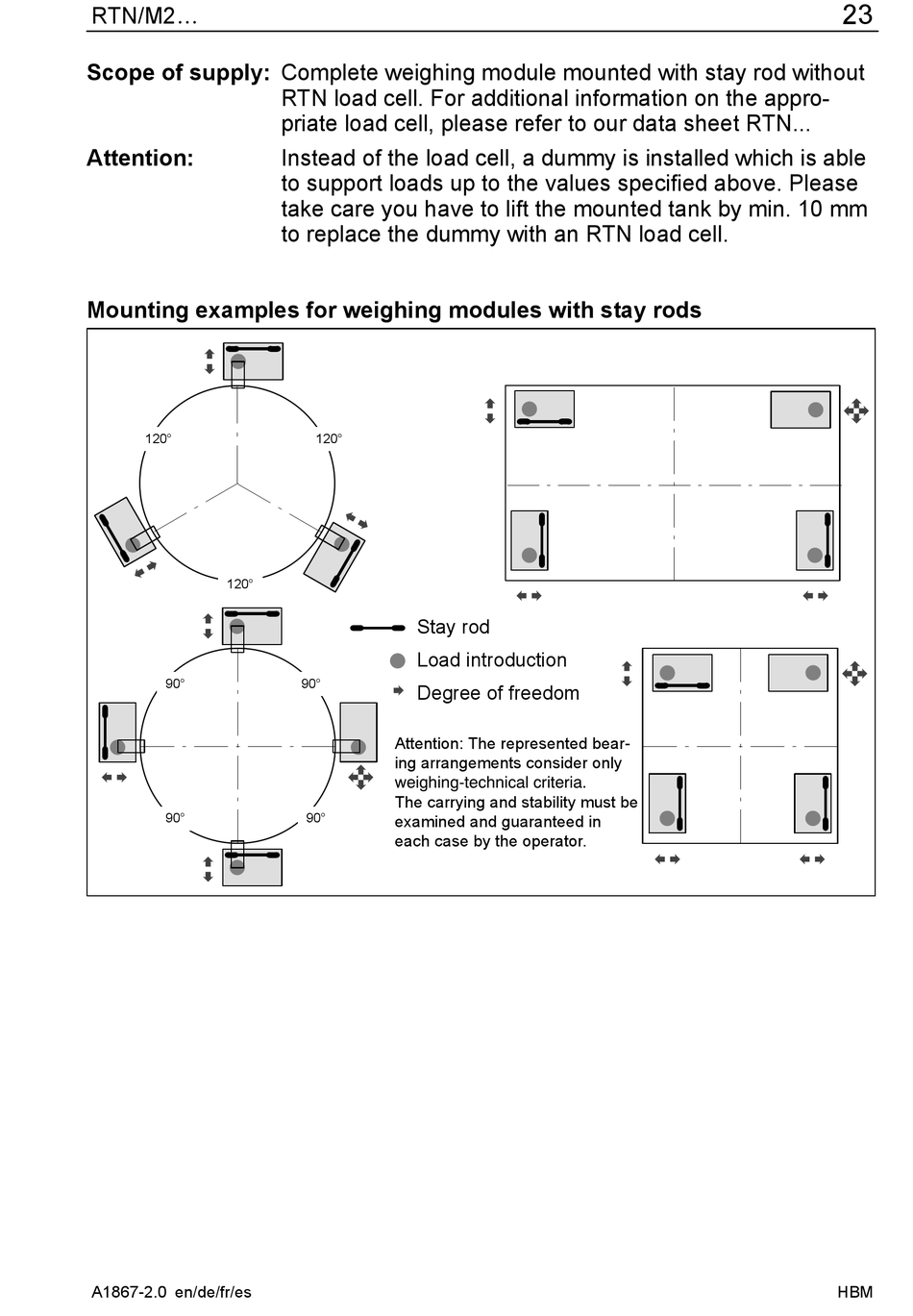

Mounting examples for weighing modules with stay rods
120
120
90
90
A1867-2.0 en/de/fr/es
RTN load cell. For additional information on the appro-
priate load cell, please refer to our data sheet RTN...
Instead of the load cell, a dummy is installed which is able
to support loads up to the values specified above. Please
take care you have to lift the mounted tank by min. 10 mm
to replace the dummy with an RTN load cell.
120
Stay rod
Load introduction
90
Degree of freedom
Attention: The represented bear-
ing arrangements consider only
weighing‐technical criteria.
The carrying and stability must be
90
examined and guaranteed in
each case by the operator.
23
HBM
