RTN/M2
Air gap: 1 mm
5 plates max. for height adjustment

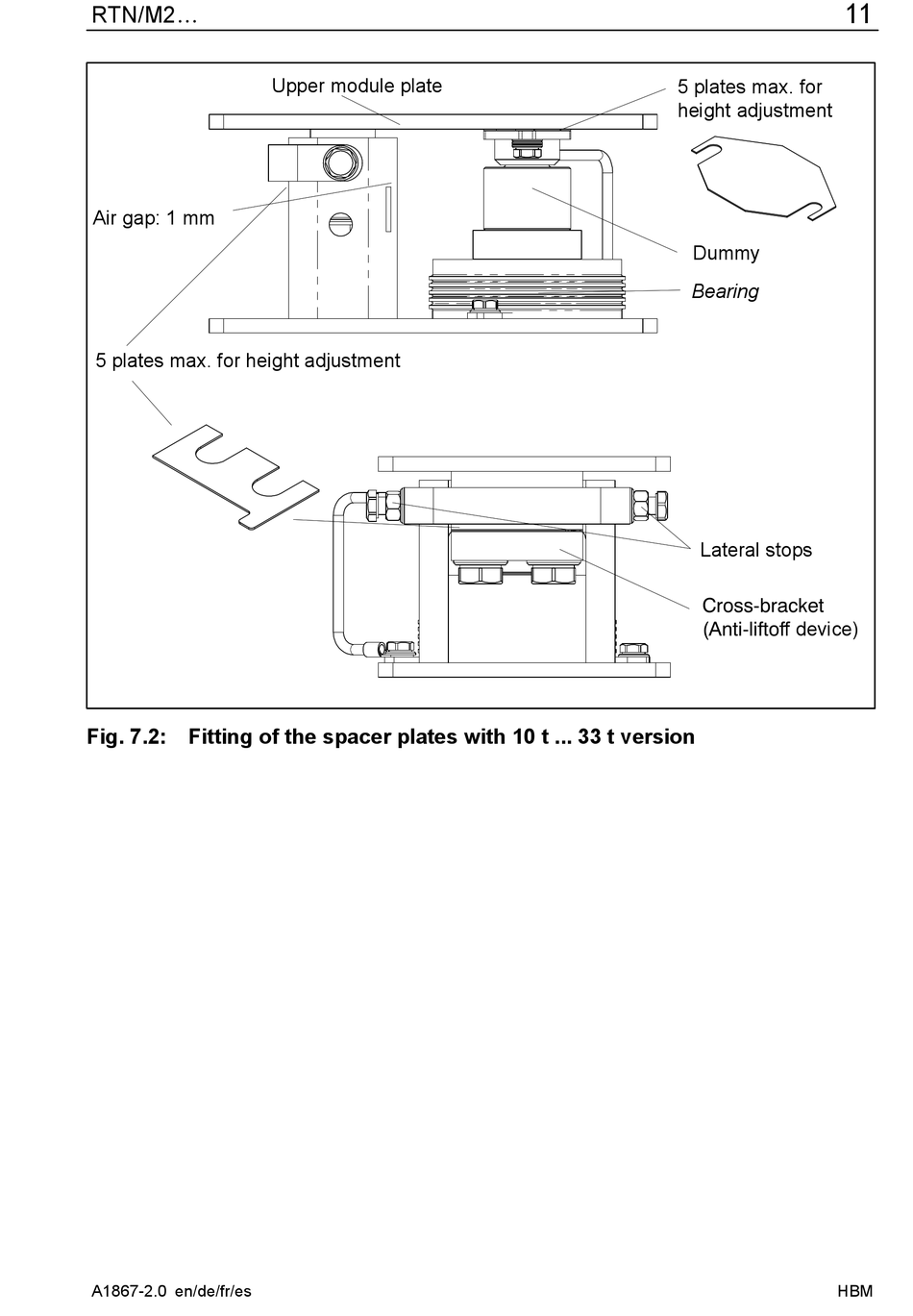

Fig. 7.2: Fitting of the spacer plates with 10 t ... 33 t version
A1867-2.0 en/de/fr/es
Upper module plate
11
5 plates max. for
height adjustment
Dummy
Bearing
Lateral stops
Cross‐bracket
(Anti‐liftoff device)
