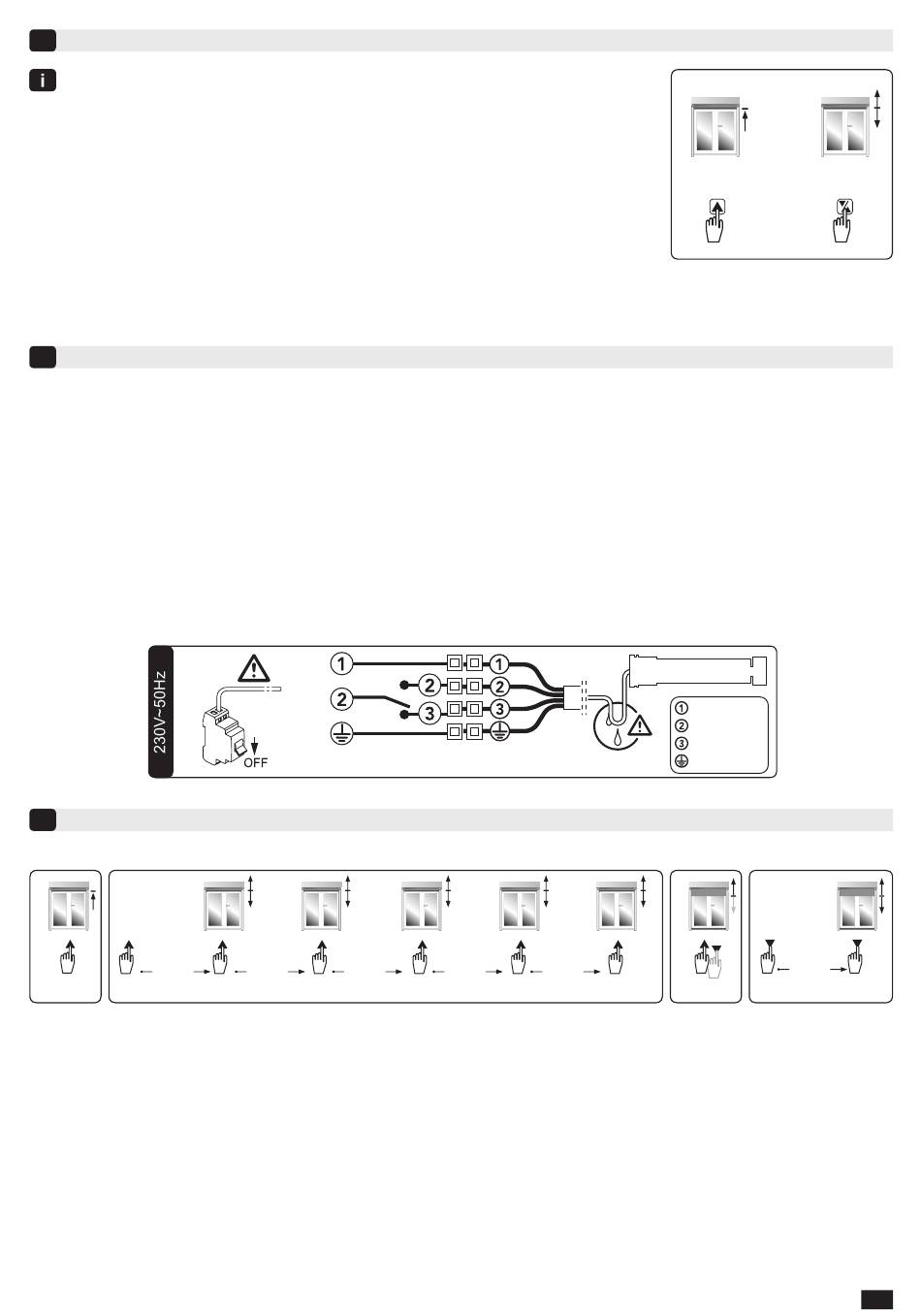

simu T5ZSP Originalanleitung Seite 9

"BACK- RELEASE» FUNCTION FOR PRODUCTS WITH TOP STOP ONLY
3
- This function releases tension on the fabric after the product is closed at
the top stop against the head rail.
- Set this function after having performed the end limits setting (§2.3), with
the settings switch (ref.: 2006024).
- The «back release» function is disable in the factory mode default.
To activate or deactivate this function, the procedure is the same:
1- Place the product at its upper end limit.
2- Press on ▲/▼ for 3 seconds. The motor will stop and will run for 0,5 second
in one direction and then in the other. The operation is completed. Go to stage §4.
* Press the buttons until the motor turns into the two directions.
FINAL WIRING
4
- Be careful of the direction of rotation (§2.2).
- Mandatory use of a reversing switch that stops the ▲ and ▼ keys being activated simultaneously.
- Possibility of wiring 3 motors max. in parallel on one switch. The length of the cable between the electrical
switch and the motor must not exceed 50 m.
- Attach cables to prevent any contact with moving parts.
- If the motor is used outdoor and if the power supply cable is of the H05-VVF type, then run the cable in a
UV-resistant conduit, e.g. trunking.
- Use only mechanical or electromechanical switches (e.g. relays) to control a motor. The relay contacts must
not be bypassed by capacitors. The motors should not be controlled by a relay with static or triac capacitor.
Please do contact SIMU when using KNX / EIB electronic switching control devices.
RE-ADJUSTMENT OF END LIMITS
5
5.1. Re-adjustment of up end limit:
1 2
>>
6 s max.
6 s
1. Position the product on the up end limit set in §2.3 using the ▲ key.
2. Press the ▲ key 6 times, each time for 6 seconds. After the 2nd, 3rd, 4th, 5th, and 6th press the motor
rotates briefly one way, then in the other*.
3. Position the product on the new desired up position using the ▲ and ▼ keys.
4. To confirm the new end limit position, press ▼ twice:
- once for 0,5 second without the motor rotating
- and the second time for at least 3 seconds, so the motor rotates briefly one way, then in the other*.
The settings are now completed.
* Press the buttons until the motor turns into the two directions.
N
L
PE
>> >>
6 s max. 6 s max.
6 s 6 s
>> >>
6 s max. 6 s max.
6 s 6 s
1
>>
T5ZSP/T5ZSP RH
Blue
Brown
Black
Green / Yellow
3 4
>>
0.5 s
6 s
2
≥ 3 s
+
6 s max.
>3 s
EN
4/5
