simu T5ZSP Originalanleitung Seite 8

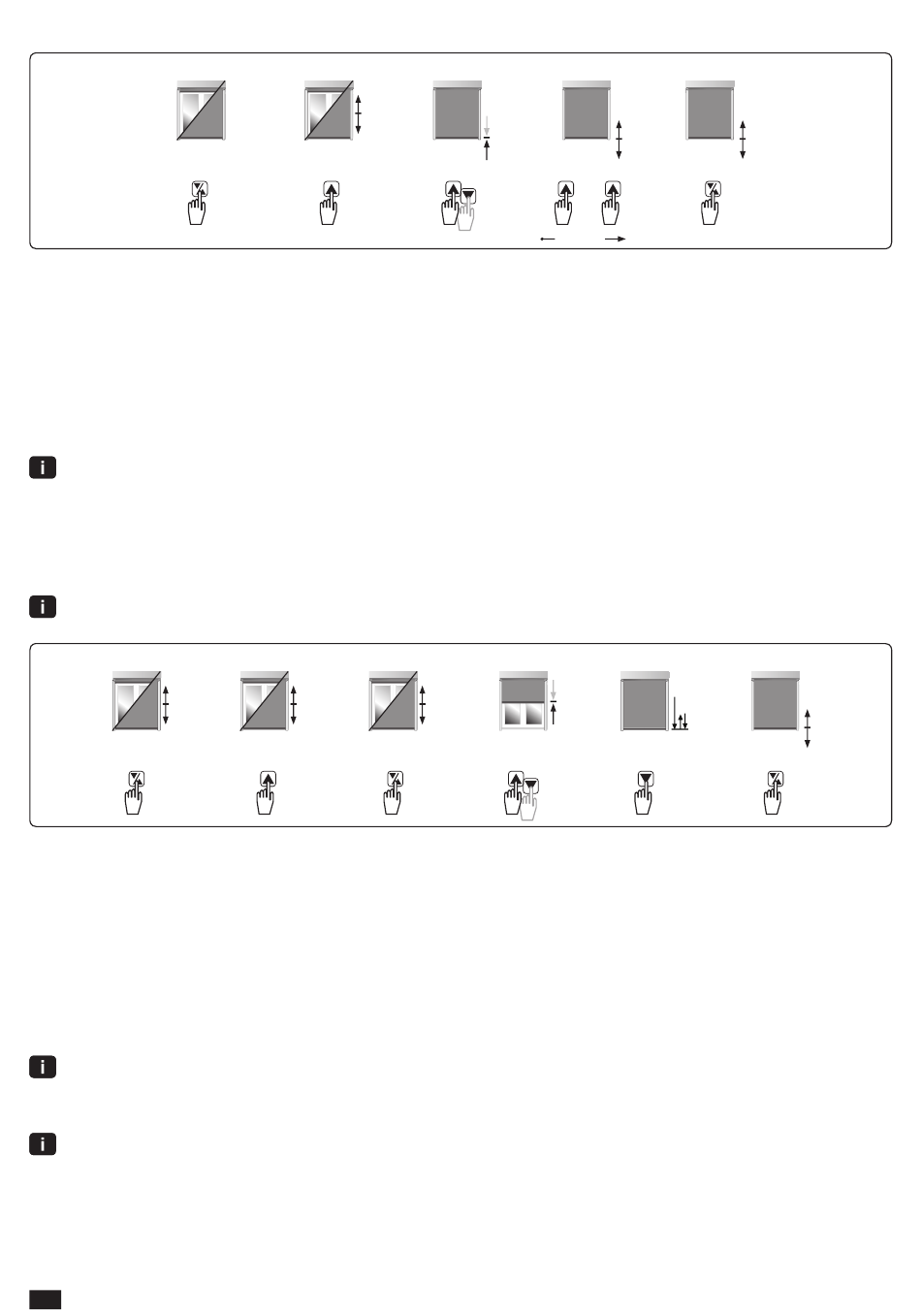

SETTING 2: MANUALLY SETTING THE DOWN END LIMIT AND AUTOMATICALLY SETTING THE UP END LIMIT
1
≥ 3 s
1- Press on ▲/▼ for 3 seconds. The motor will run briefly in one direction and then in the other*.
2- Press on ▲ for 3 seconds. The motor will run briefly in one direction and then in the other*.
3- Position the product on the desired down end limit using the ▲ and ▼ keys.
4- To memorize the down end limit, press ▲ twice, as follow:
- 1st press for 0,5 second without the motor rotation.
- 2nd press over 3 seconds, so the motor rotates briefly one way, then the other*.
5- Press on ▲/▼ for 3 seconds. The motor will run briefly in one direction and then in the other*.
After the operation 5, the settings are completed. There is no delay time any more. Go to stage §3.
* Press the buttons until the motor turns into the two directions.
SETTING 3: AUTOMATICALLY SETTING THE DOWN & UP END LIMITS
When specific driven product is equipped with a heavy load bar and a top stop, end limits set automatically
after following next step below:
1
≥ 3 s
>>
1- Press on ▲/▼ for 3 seconds. The motor will run briefly in one direction and then in the in the other*.
2- Press on ▲ for 3 seconds. The motor will run briefly in one direction and then in the other*.
3- Press on ▲/▼ for 3 seconds. The motor will run briefly in one direction and then in the other*.
4- Place the product at its half-way position using the ▲ and ▼ keys.
5- Press on▼ until:
- the down end limit detection by the motor.
- the product moves briefly UP and returns to its down end limit. This indicates the limit is set
correctly.
If the lower end limit is not set automatically after several attempts, perform the cancelling of end
limit adjustments §6, and then the setting 2.
6- Press on ▲/▼ for 3 seconds. The motor will run briefly in one direction and then in the other*.
- After the operation 6, the settings are completed. There is no delay time any more. Go to stage §3.
* Press the buttons until the motor turns into the two directions.
EN
3/5
2
≥ 3 s
>> >>
2 3
≥ 3 s ≥ 3 s
>>
3 4
0.5 s ≥ 3 s
+
>>
6 s max.
4
>> >>
5
≥ 3 s
>>
5 6
≥ 3 s ≥ 3 s
>>
