5.6 | Global Keyboard

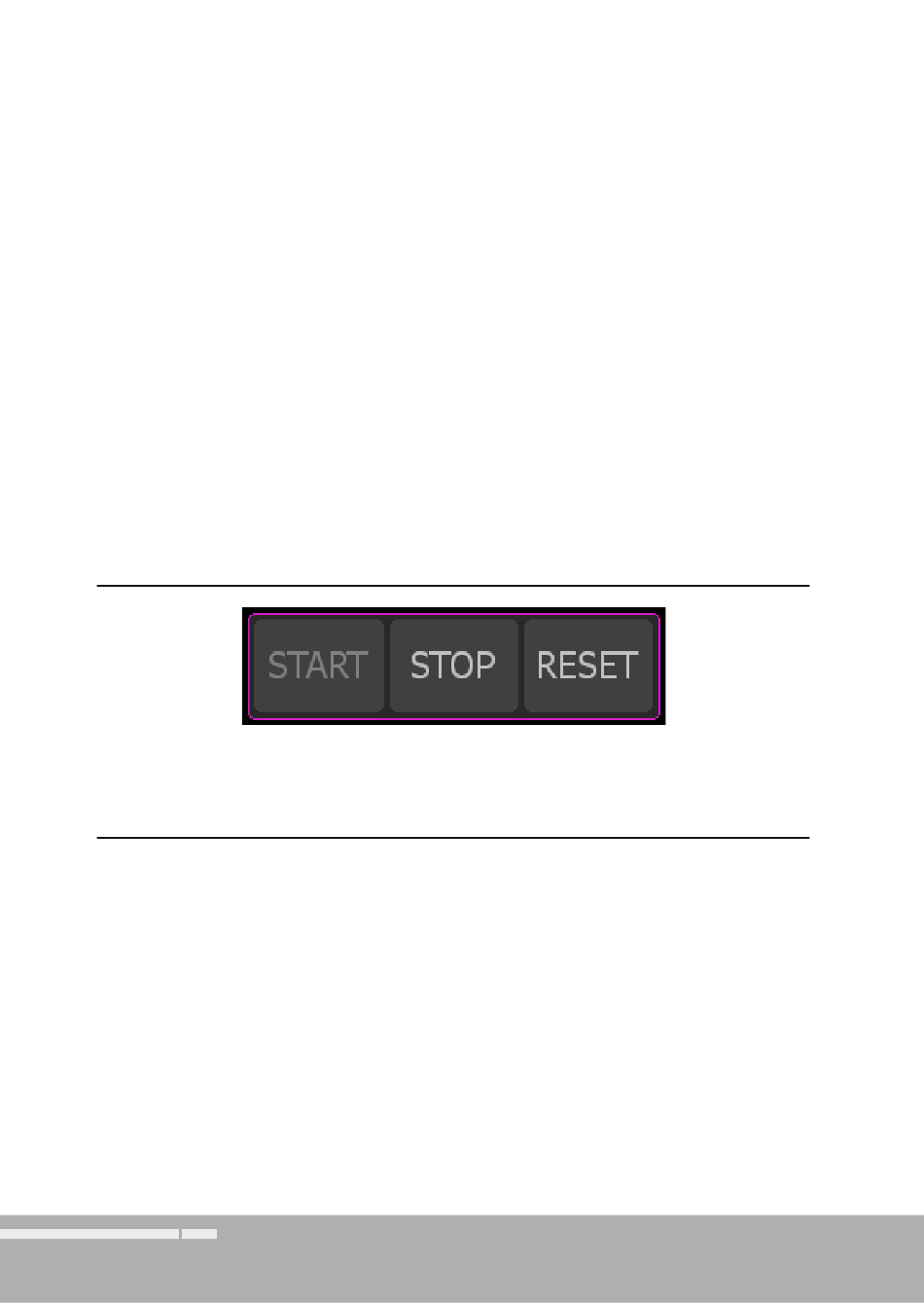

Example: Start, Stop, and Reset keys for global
control of Loudness instruments
The Global Keyboard instrument (only available in Non Audio group)
can be set to contain up to 10 keys that can be used in various ways.
Each key set to „Instrument" mode can control functions of several instru-
ments even if they are placed in different Audio Groups. Also, instrument
keys can be controlled externally using the TouchMonitor's GPIO inter-
face. Alternatively, each key set to „Preset" mode can be confi gured to
load a new preset.
Factory presets using the Global Keyboard instrument:
• 3 X 2CH SDI ATSC
• 3 X 2CH SDI EBU
