Connection (continued)

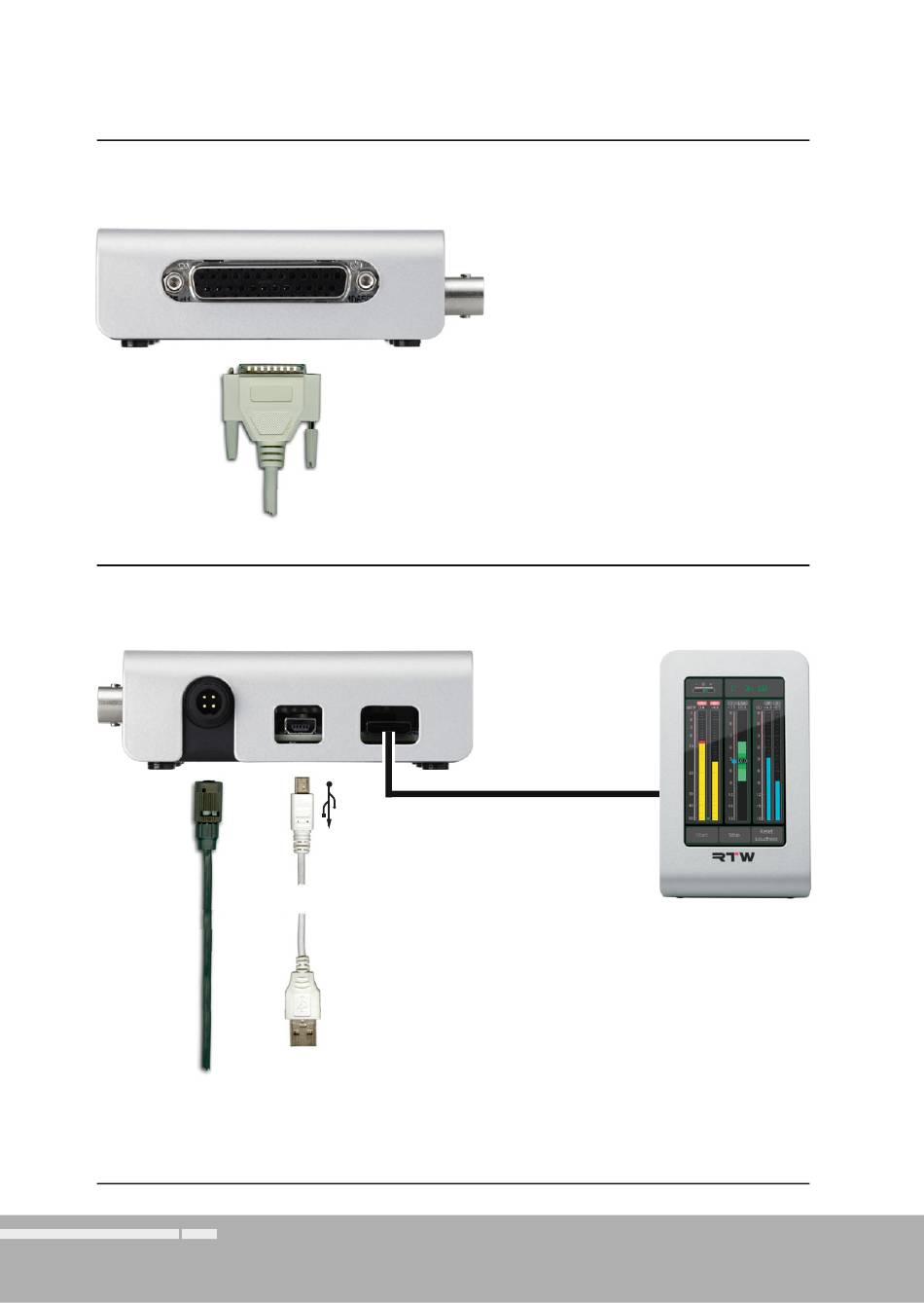

Left Side View of the 3G-SDI Interface Box
*) when activated!
Right Side View of the 3G-SDI Interface Box
4-pin locking low voltage connector
24 V DC, 160 mA (nominal), for connecting
the wide voltage power supply
EN-16 2 | Installation | 2.1 | Connection
8 AES3 Out (1 - 8, Sub-D) *)
Connected to display unit
(2 m, max. 15 m)
USB 2.0 Mini-B
(USB interface cable for the
exchange of Devicer DC1 and
TM3-3GS data required)
