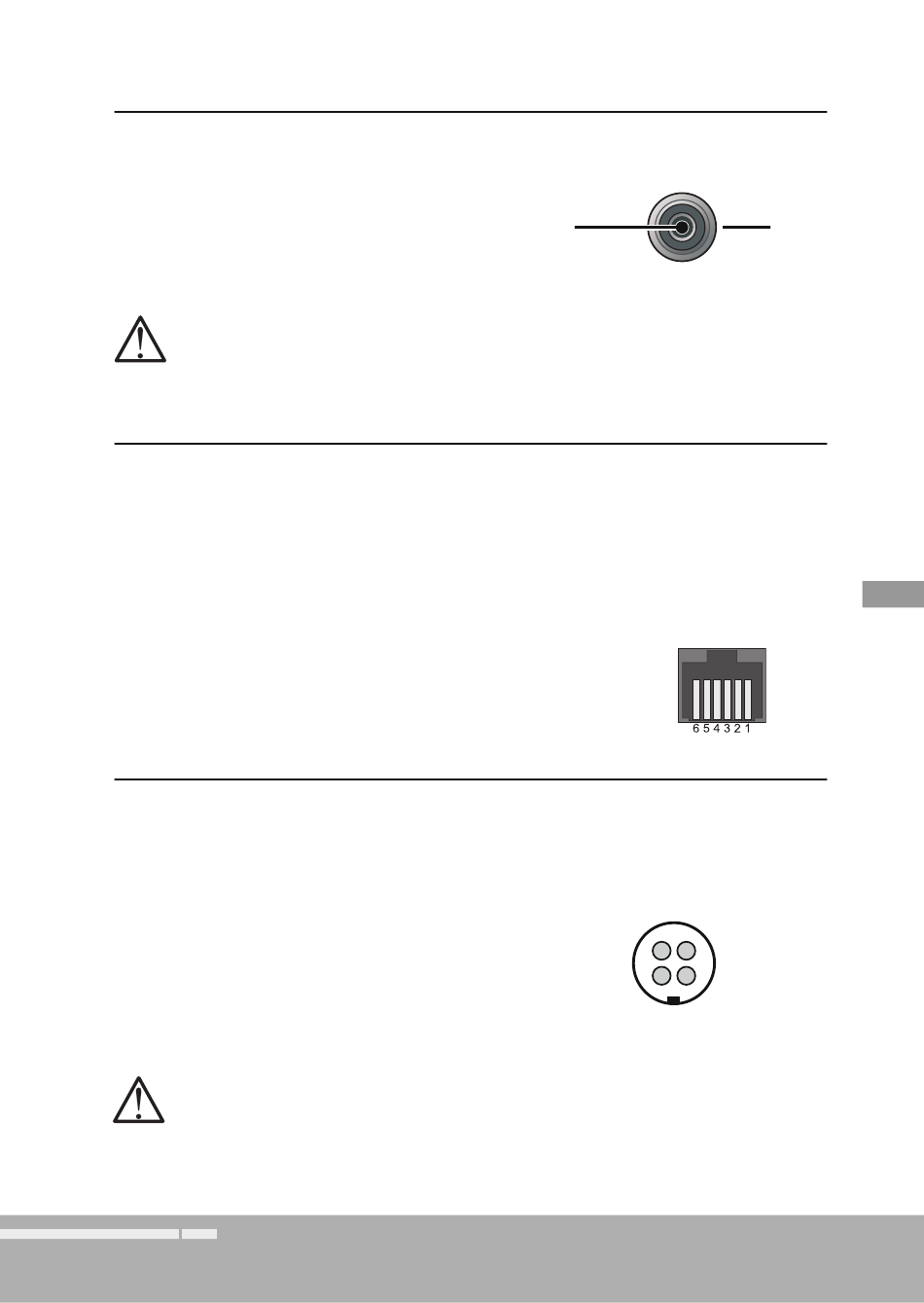

Pin Assignment (continued)
Line Out L, Line Out R, Aux In (unbalanced, RCA-F)
Pin:
Function:
Pin
Signal
Shield/chassis
Ring
NOTE -
tors are in parallel with the corresponding output signals of the phones
connector.
GPIO (RJ-12-6P6C socket)
External control of functions and presets recall as defi ned in the Global
Keyboard menu. The inputs defi ned as „active low" have to be switched
against 0 V (Pin 1).
Pin:
Function:
1
GND
2 - 6 Function acc. to defi nition in the menu
24 V DC (4-pin locking low voltage, type Binder 710)
Pin:
Function:
1
+24 V DC
2
+24 V DC
3
0 V
4
0 V
NOTE - An external overcurrent protective device (2 A max.) shall
be installed when using an external 24 V DC power supply!
Manual | TM3-3GS
The analog signal outputs of the Line Out RCA connec-
Pin
(External view of the connector)
(External view of the connector)
Pin 3
Pin 4
(External view of the connector)
2 | Installation | 2.2 | Pin Assignment
Ring
EN
Pin 2
Pin 1
EN-19
