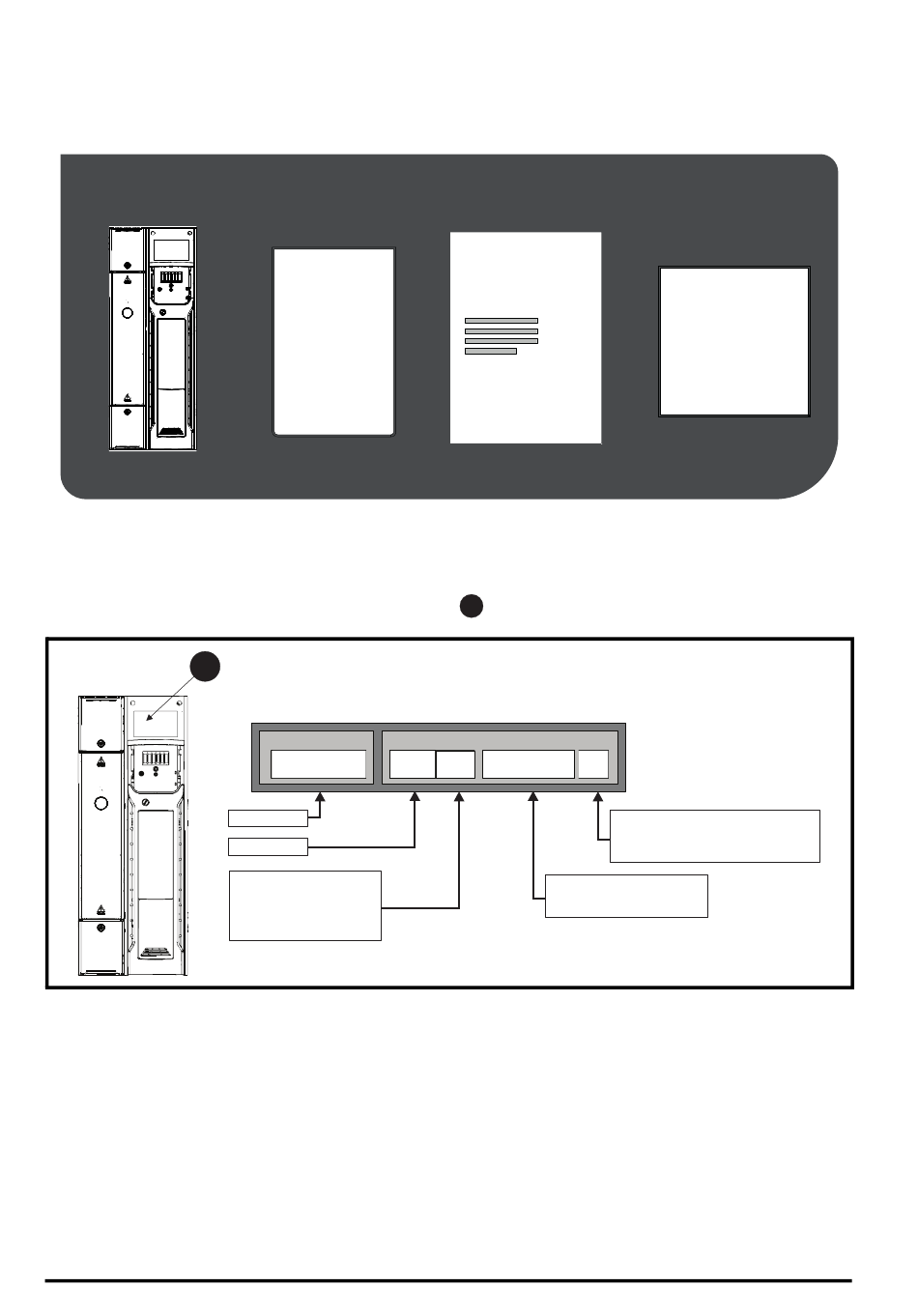

STEP 1: Check the contents of the box
Check you have all the components and your drive has not been damaged during transportation.
* With frame size 7, 8 and 9, surface mounting brackets are also supplied with the drive.
STEP 2: Check model and voltage
The model number can be found on the identification label
and the drive voltage range is suitable for the installation.
1
2
KIT BOX*
+
Derivative
M400 - 05
Product line:
Frame size:
:
Voltage rating
2 - 200 V (200 - 240 ± 10 %)
4 - 400 V (380 - 480 ± 10 %)
5 - 575 V (500 - 575 ± 10 %)
6 - 690 V (500 - 690 ± 10 %)
SAFETY
INFORMATION
+
on the top of the drive. Please check that the model
1
Electrical Specifications
4 00270
Current Rating :
Heavy Duty current rating x10
Unidrive M400 Step By Step Guide
STEP BY STEP
+
GUIDE
A
Drive Format :
A - AC in AC out
E - AC in AC out (without internal choke)
Issue Number: 2
