dirna Bergstrom bycool COMPACT 3.0 DAF Montageanweisungen Seite 25

COMPACT 3.0
M8 x125x100 / 120
Studs
Cabin roof
EPDM Joint 25 mm.
Upholstery

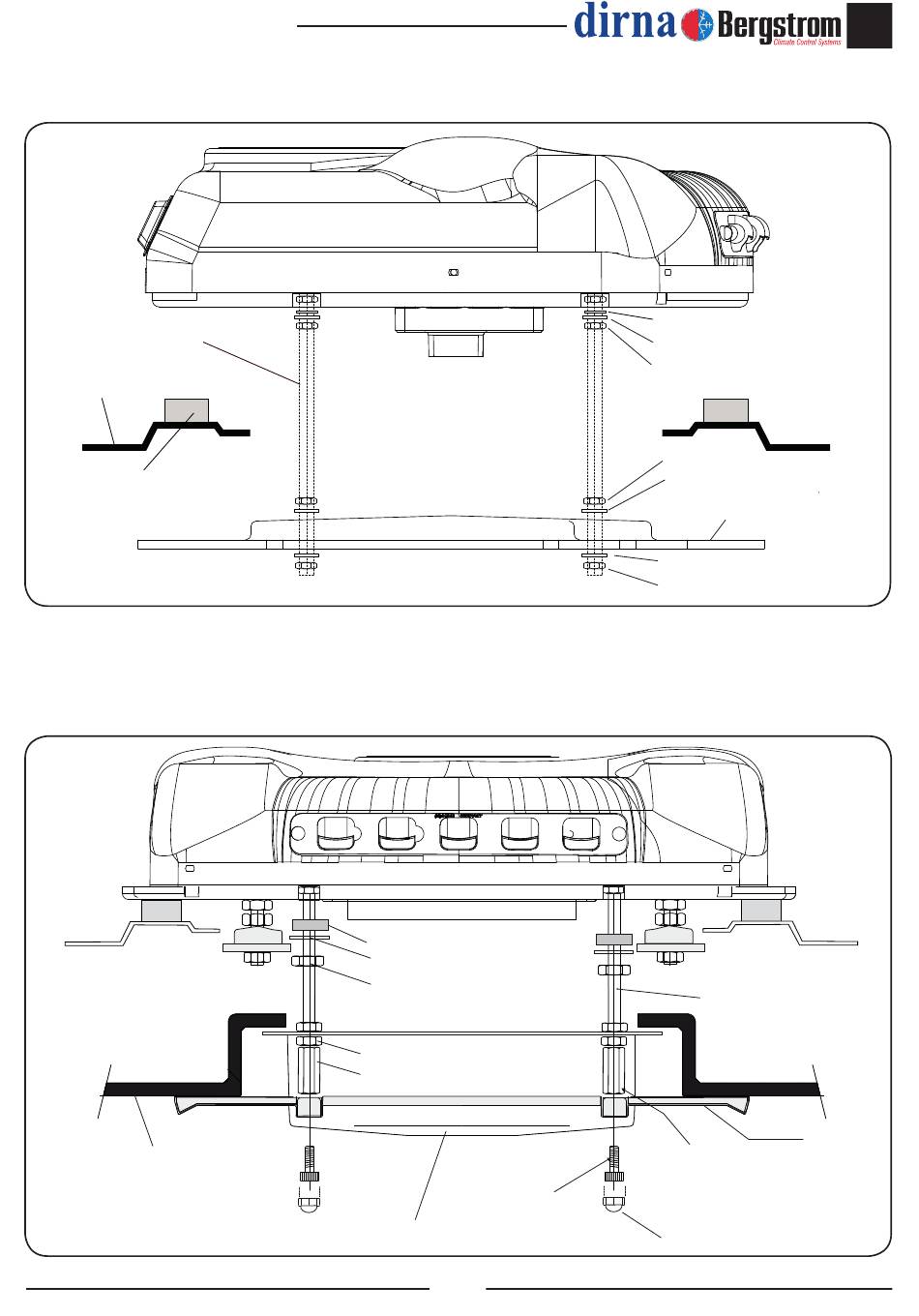

Exploded side view to supports fastening
Exploded rear view to consoles fastening
Rubber washer Ø6
Ø6 Wide wing flat washer
M6 Nut
M6 Nut
M6 Hexagons
Front with windows
Air conditioning for vehicles
6/100x15 allen
25
ø 7 Rubber washer
wide wing flat washer ø 8
M8 Nut
M8 Nut
Wide wing flat washer ø 8
Fastening support
Wide wing flat washer
M8 self-blocking nut
M6 Studs
Console
Lower part of spacer must be
at 1mm. with upholstery
(4) M6 protection caps
EN
