COMPACT 3.0
EN

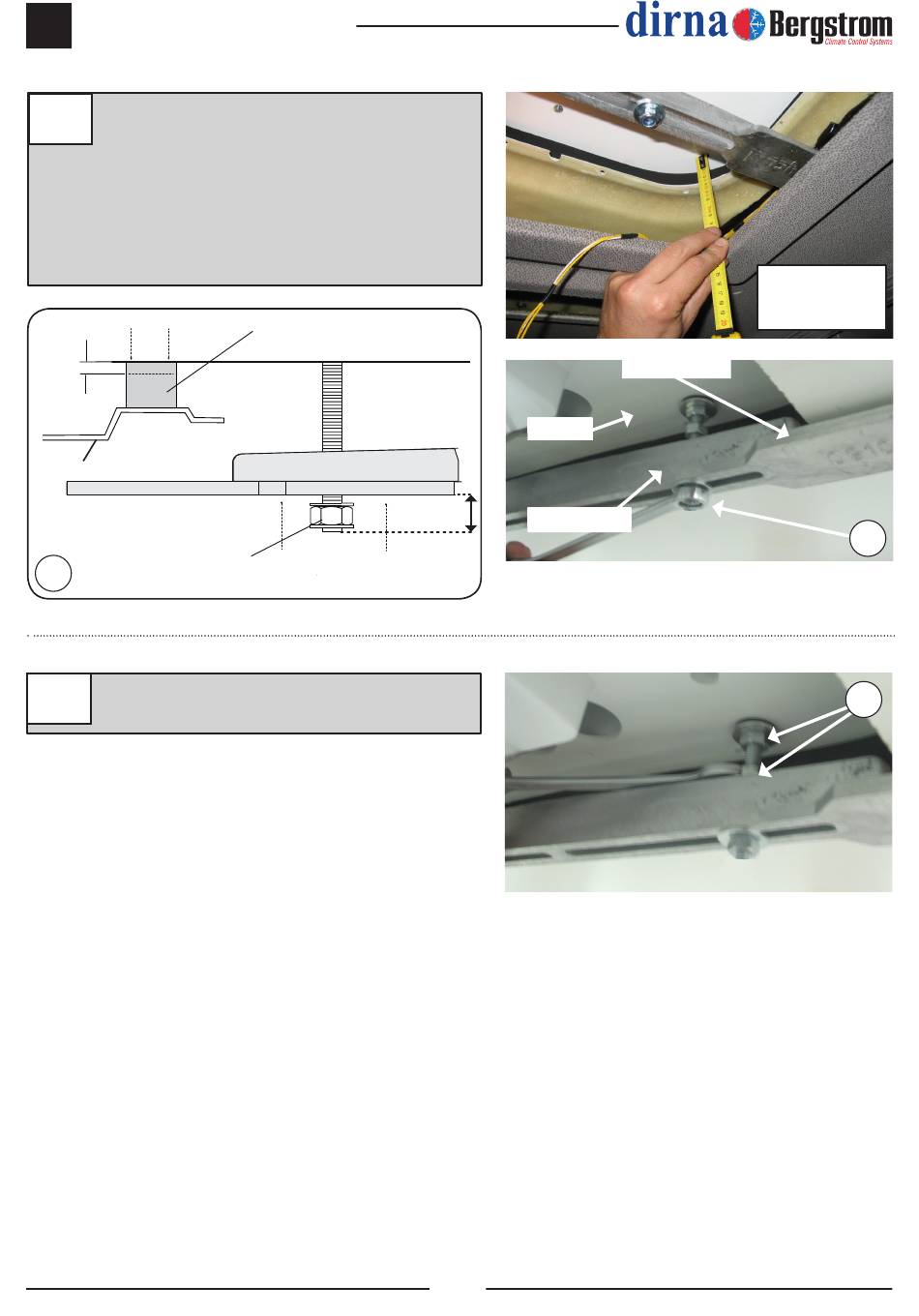

Fasten supports tightening nuts until outside
14
EPDM joint (Point 4a) of equipment is com-
pressed, between 3 and 6 mm; joint EPDM
must stay with a thickness of 19 and 22 mm.
Important: To avoid water from filtering in-
side cabin, check EPDM joint tightening with
Compact base, as indicated on diagram.
3-6mm.
Cabin roof
Fasten selflocked nut until
EPDM gasket is compressed
14
between 3 and 6 mm.
Tighten (4) M8 nuts to support and (4) to Unit
15
base.
EPDM gasket
10 mm*
(*) (approx. after tightening)
Base
EPDM Joint
22
Air conditioning for vehicles
Check compression
thickness using a tape
measure in the four
corners.
EPDM gasket
14
15
