COMPACT 3.0

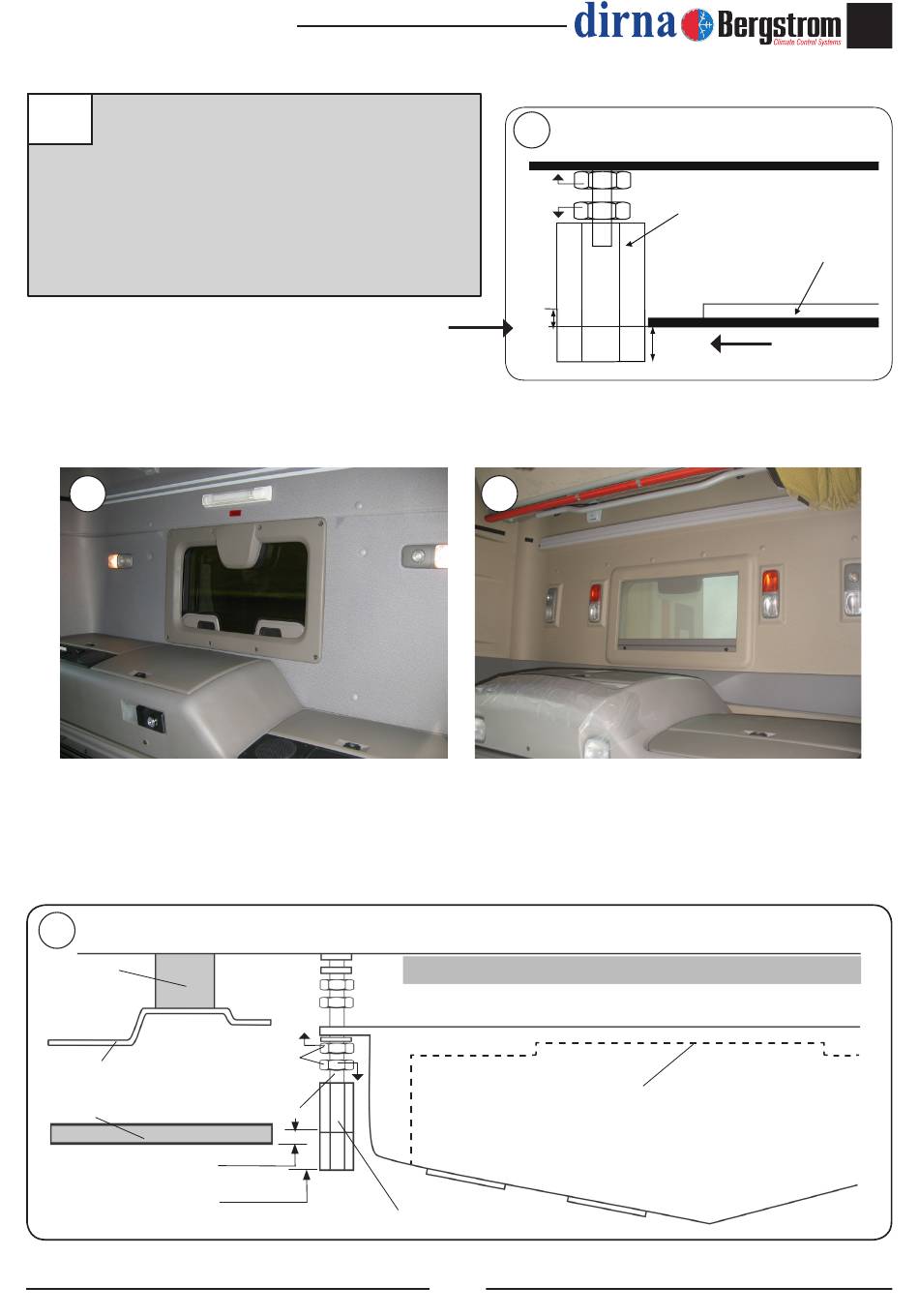

Position the M6 nut (A) after the attachment
16
nut of the front on each stud. Position M6
hexagons, threading up to 1 mm above the
upholstering in vehicles with Super Space
Cab and 10 mm below the upholstering in
other vehicles. Unscrew M6 nuts (A) of this
point until they come into contact with the
hexagons, and tighten against them.
16
16
EPDM
seal
Cabin ceiling
Upholstering
Space Cab - 1 mm.
Other models - 10 mm.
Super Space Cab
Other cabins
Base
(A)
M6 Nut
M6 stud
M6 Hexagons
Air conditioning for vehicles
16
1 mm
Aprox.
16
Cabina Super Space Cab
Rubber ductings
23
Compact Base
Front support hexagon
(A)
Upholstering
Other models
10 mm
EPDM gasket
Compact front with
windows
