COMPACT 3.0

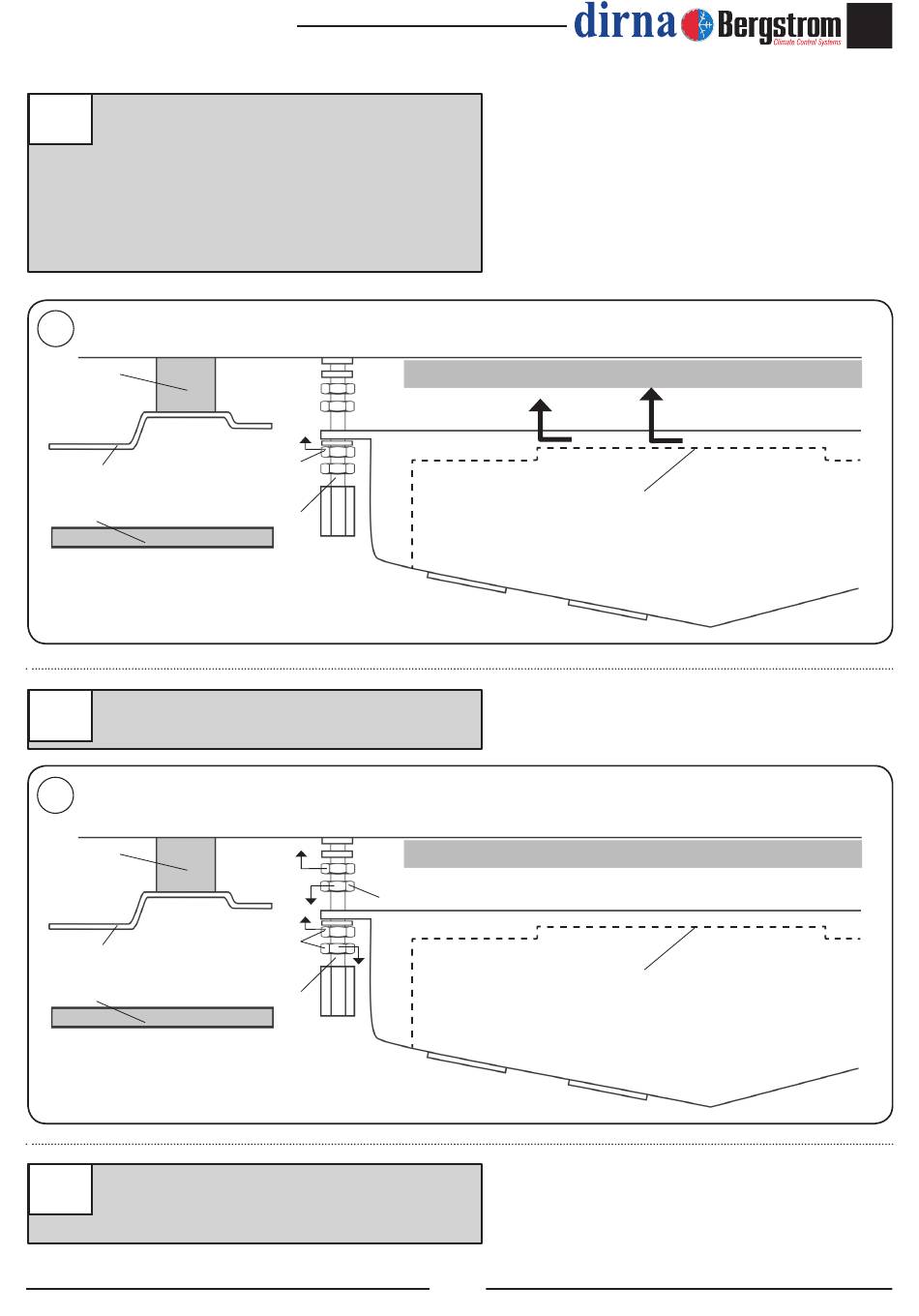

To place the front (at the previous mentioned)
11
spigots with (1) washer M6 wide wing and
(1) nut M6 in each spigot. To tight nuts til the
rubber ducting til run into the upper rubber of
the unit. IMPORTANT: The rubber ducting
must being run into the upper rubber of the
unit to avoid air leaks
11
EPDM
Gasket
Cabin roof
Upholstey
Tighten nut mentioned under point 10a until it
12
touches upper surface of front.
12
EPDM
Gasket
Cabin roof
Upholstey
Place console and centre equipment in the most
13
convenient place of cabin roof. Once centred,
remove console for later installation.
Unit base
Nut M6
Stud M6
Unit base
Nut M6 (10a)
Nut M6
Stud M6
Air conditioning for vehicles
Rubber ductings
Rubber ductings
21
EN
Foam Gasket
front with louvers
Foam Gasket
front with louvers
