CLEARING THE MEMORY

This procedure allows to delete all the transmitters stored in the
DEV-R2 module.
Transmitter deletion can be activated in three different ways:
- through the SW1 button of the module
- through the PROG button of a stored PROTEO transmitter
- through the PROG button of a non-stored PROTEO transmitter
Clearing the memory through the SW1 button of the
module
Proceed as follows:
• Cut off the power supply to the DEV-R2 module
• Holding the SW1 button pressed power the DEV-R2 module
• After 2 seconds release the SW1 button: the L1 LED blinks
twice, each time for 1/2 s, indicating memory has been
properly cleared.
Clearing the memory through the PROG button of a stored
PROTEO transmitter
• Power the DEV-R2 module
• Turn switch 3 of the PROTEO transmitter to on
• Select on the transmitter the channel stored in the module
• Perform a transmission using the PROG button until the relay
output of the DEV-R2 activates twice for ½ s, indicating
memory has been properly cleared.
• Turn switch 3 to OFF
Clearing the memory through the PROG button of a non-
stored PROTEO transmitter
• Cut off the power supply to the DEV-R2 module
• Turn the switch 3 of the transmitter to ON
• Perform a transmission using the PROG button of the
transmitter
• Power the DEV-R2 module you wish to delete
• After a few seconds the relay output of the DEV-R2 activates
twice for ½ s, indicating memory has been properly cleared
• Release the PROG button of the transmitter
• Turn switch 3 to OFF
PROGRAMMING THE OPERATING LOGICS
THROUGH PROTEO TRANSMITTERS
Using a stored PROTEO transmitter you can program the
operating logics of the DEV-R2 module.
• Power the Dev-r2.
• Select on the transmitter the channel stored in the module
• Set the transmitter dip-switches according to the desired logic
(see table)
• Perform a transmission using the PROG button until the relay
output of the DEV-R2 activates twice for ½ s, indicating the
operating logic has been modified.

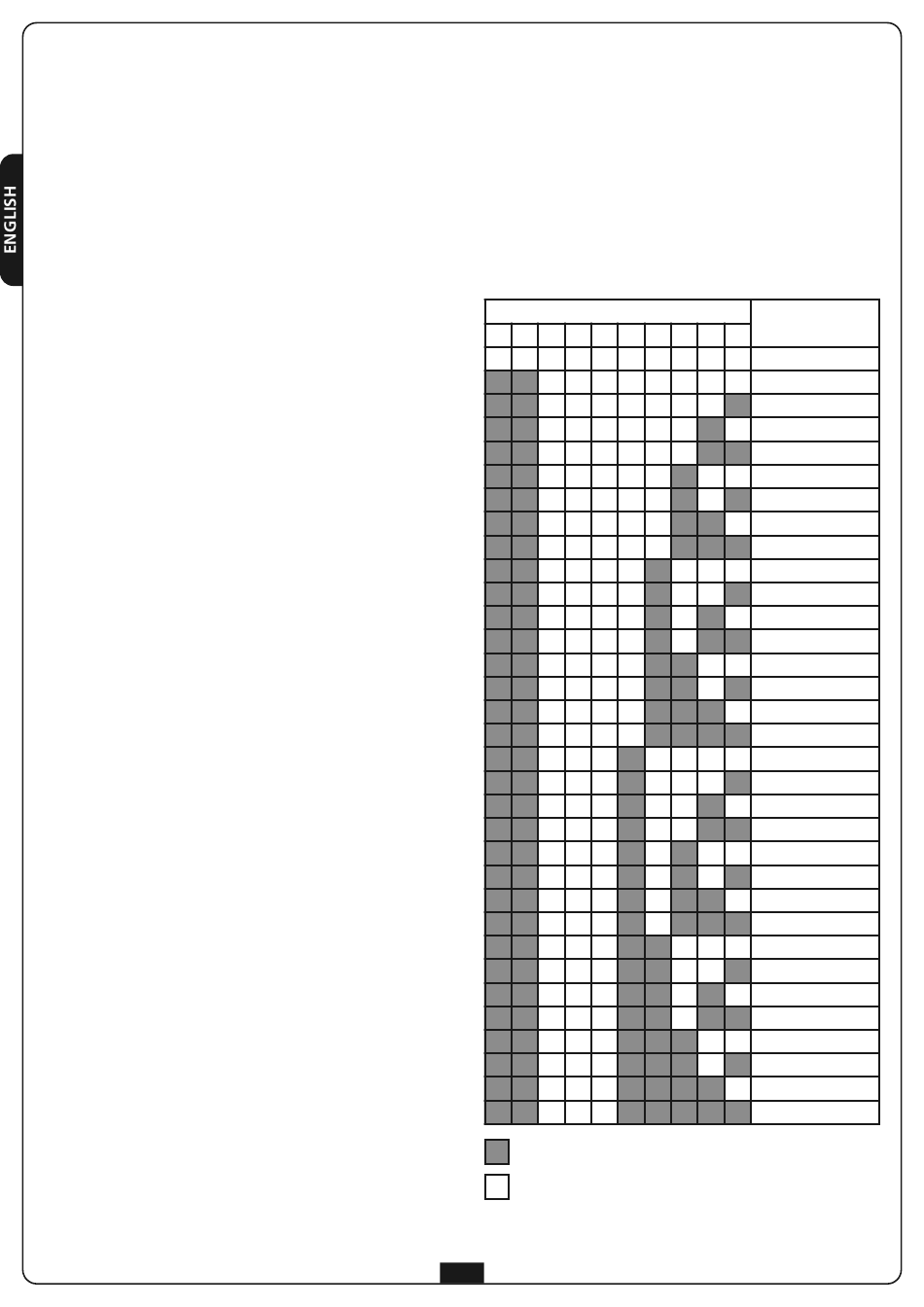

DIP-SWITCH
1 2 3 4 5 6
dip-switch ON
dip-switch OFF
14
Operating logic
7 8 9 10
Monostable
Bistable
Timer 01 sec.
Timer 02 sec.
Timer 03 sec.
Timer 04 sec.
Timer 05 sec.
Timer 06 sec.
Timer 07 sec.
Timer 08 sec.
Timer 09 sec.
Timer 10 sec.
Timer 11 sec.
Timer 12 sec.
Timer 13 sec.
Timer 14 sec.
Timer 15 sec.
Timer 30 sec.
Timer 1 min.
Timer 1,5 min.
Timer 2 min.
Timer 2,5 min.
Timer 3 min.
Timer 3,5 min.
Timer 4 min.
Timer 4,5 min.
Timer 5 min.
Timer 10 min.
Timer 15 min.
Timer 30 min.
Timer 45 min.
Timer 60 min.
