PROGRAMMING THE OPERATING LOGICS
THROUGH THE SW1 BUTTON

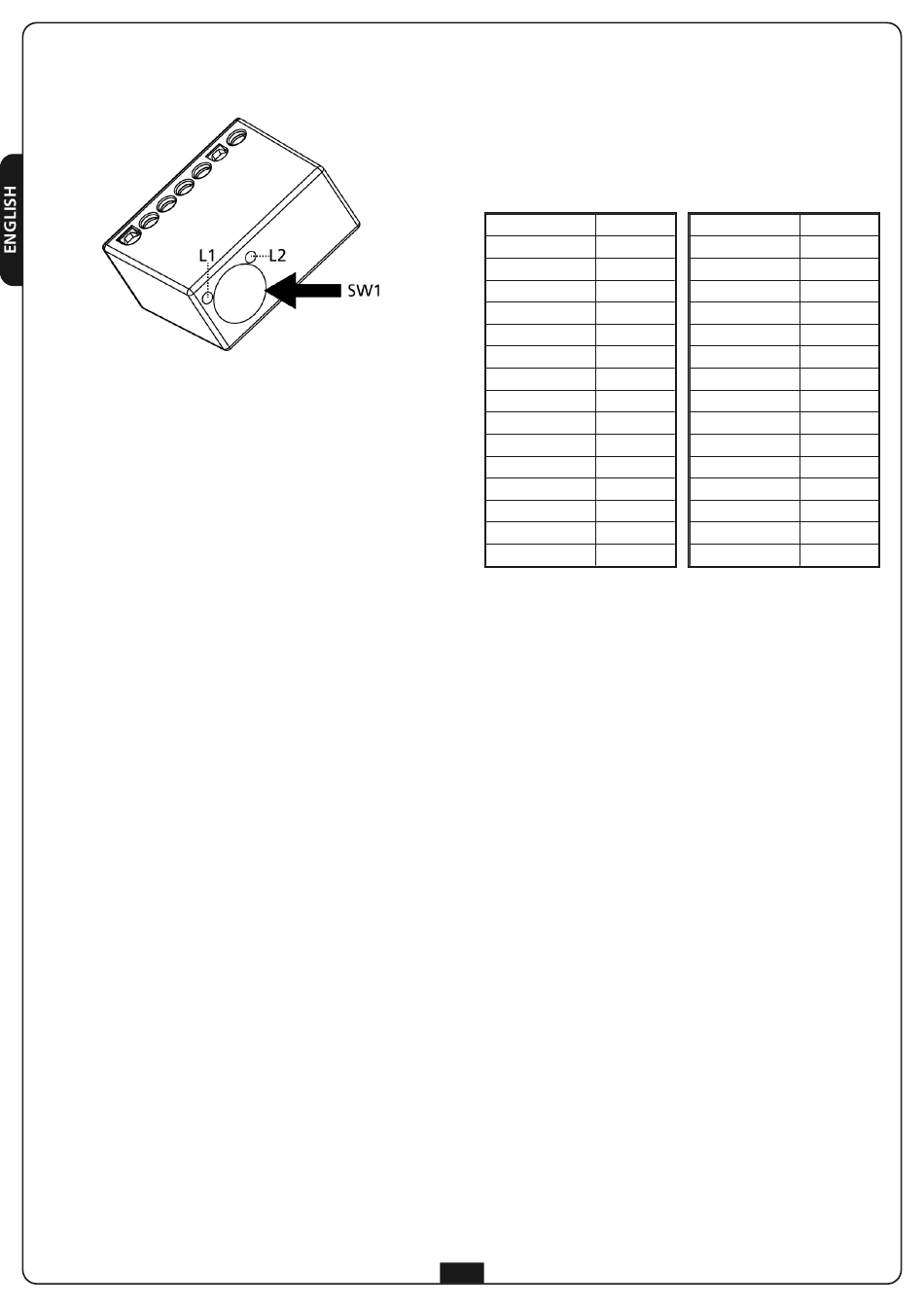

L1 - the LED lights up when the SW1 button is pressed to store
or delete any transmitters
L2 - the LED lights up when the DEV-R2 module receives a code
existing in memory
MONOSTABLE operating logic
• Power the DEV-R2 module
• Hold the SW1 button pressed: the L1 LED lights up
• After 5 seconds the L1 LED goes off: release the SW1 button
• After 2 seconds the L2 LED lights up
• Press the SW1 button: the L2 LED goes off, indicating the
procedure is over
BISTABLE operating logic
• Power the DEV-R2 module
• Hold the SW1 button pressed: the L1 LED lights up
• After 5 seconds the L1 LED goes off: release the SW1 button
• After 2 seconds the L2 LED lights up
• After 2 further seconds the L1 LED lights up
• Press the SW1 button right away: the L1 and L2 LEDs go off,
indicating the procedure is over
TIMER operating logic
• Power the DEV-R2 module
• Hold the SW1 button pressed: the L1 LED lights up
• After 5 seconds the L1 LED goes off: release the SW1 button
• After 2 seconds the L2 LED lights up
• After 2 further seconds the L1 LED lights up
• After a few seconds the 2 LEDs go off and L1 starts blinking:
the number of blinks corresponds to a time you can set as
shown in the table:
N° Flashing Time
1 01 sec.
2 02 sec.
3 03 sec.
4 04 sec.
5 05 sec.
6 06 sec.
7 07 sec.
8 08 sec.
9 09 sec.
10 10 sec.
11 11 sec.
12 12 sec.
13 13 sec.
14 14 sec.
15 15 sec.
• Count the number of L1 LED blinks corresponding to the
time you wish to set
• Press the SW1 button during the desired blink: the L1 LED
goes off, indicating the procedure is over
12
N° Flashing Time
16 30 sec.
17 1 min.
18 1,5 min.
19 2 min.
20 2,5 min.
21 3 min.
22 3,5 min.
23 4 min.
24 4,5 min.
25 5 min.
26 10 min.
27 15 min.
28 30 min.
29 45 min.
30 60 min.
