OPERATING LOGIC OF THE
TRANSMITTERS
DEV-R2 can be radio-controlled through the UP, STOP and LIGHT
buttons of the SCREEN line transmitters. Button operation
depends on the set operating logic.

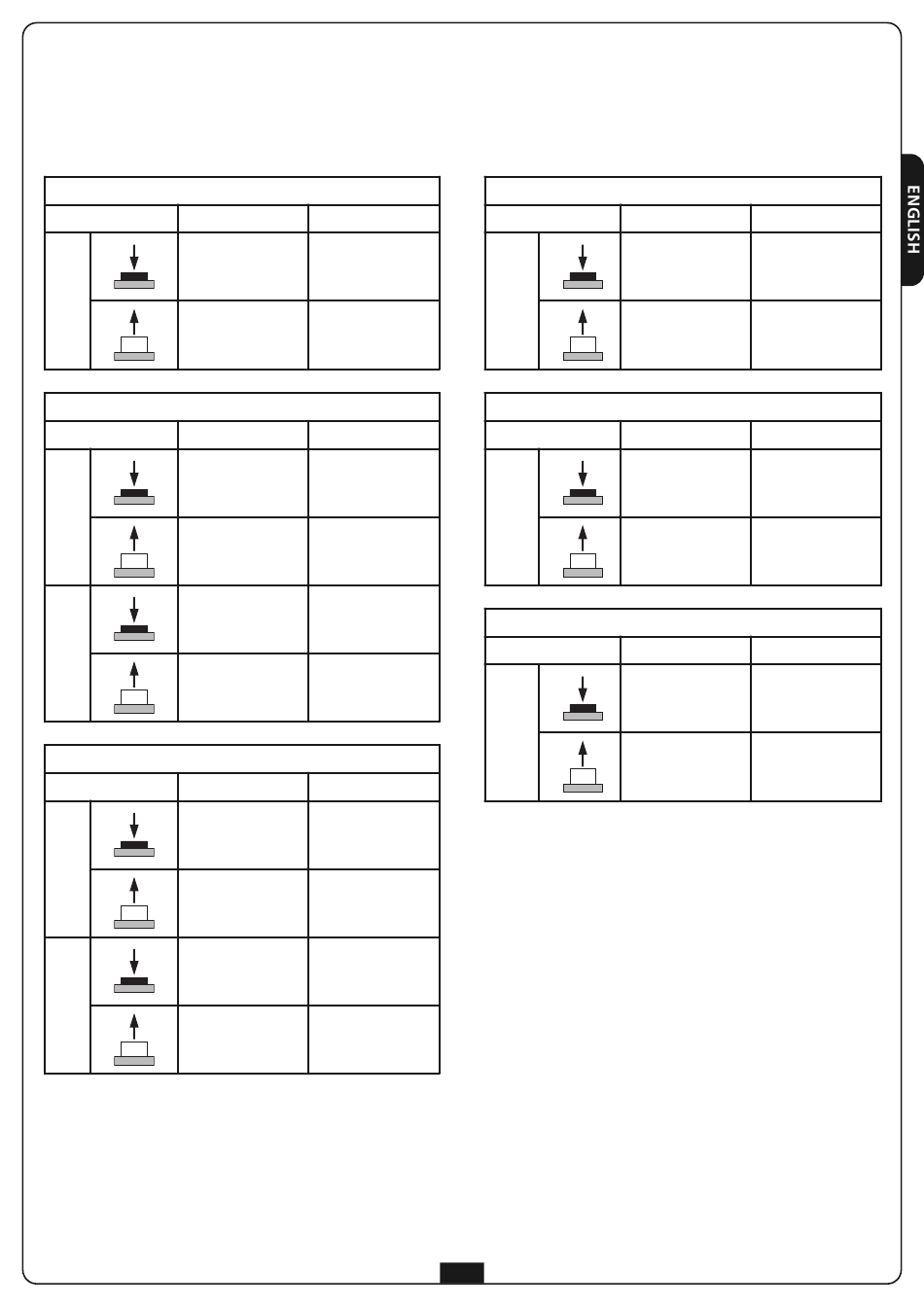

MONOSTABLE operating logic
Button status Output NOT active Output active
Activates the output -
UP
-
BISTABLE operating logic
Button status Output NOT active Output active
Activates the output -
UP
-
-
STOP
-
TIMER operating logic
Button status Output NOT active Output active
It activates the
output and starts
the timer
UP
-
-
STOP
-
NOTE: the functioning logic of the LIGHT key is only available
on models PROTEO1, PROTEO4 and DEV-R2 from version 1.1
onwards.
Disables the output
-
Disables the output
-
It reloads the timer
-
Disables the output
-
11
MONOSTABLE operating logic
Button status Output NOT active Output active
Activates the output -
LIGHT
-
BISTABLE operating logic
Button status Output NOT active Output active
Activates the output Disables the output
LIGHT
-
TIMER operating logic
Button status Output NOT active Output active
It activates the
output and starts
the timer
LIGHT
-
Disables the output
-
It reloads the timer
-
