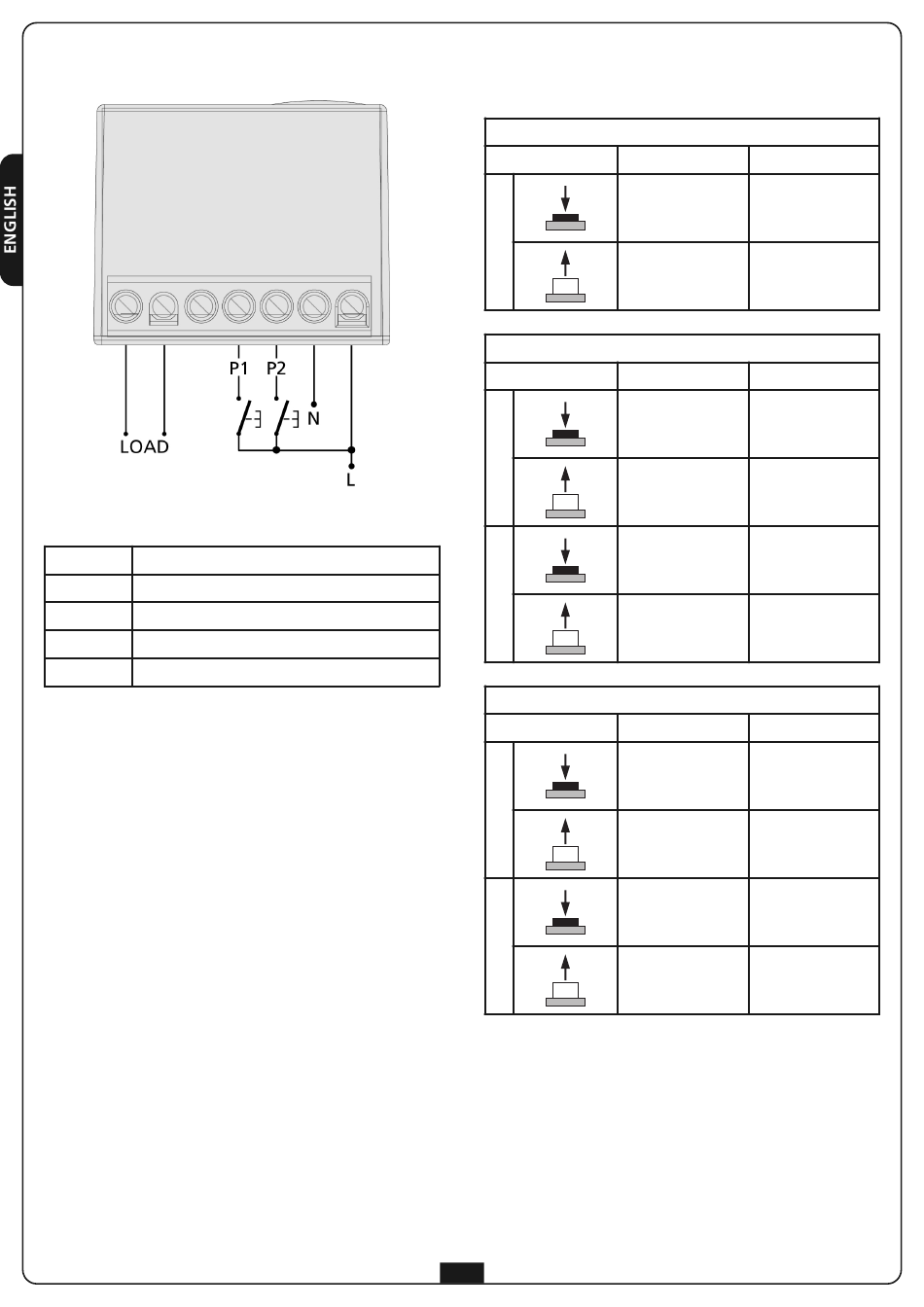

WIRING
LOAD Relay output
P1 Entry of button P1
P2 Entry of button P2
N Power supply neutral
L Power supply phase
OPERATING LOGIC OF THE WIRED INPUTS
The operation of the two wired inputs (P1 and P2) depends on
the set operating logic.
MONOSTABLE operating logic
Button status Output NOT active Output active
Activates the output -
P1
-
BISTABLE operating logic
Button status Output NOT active Output active
Activates the output Disables the output
P1
-
-
P2
-
TIMER operating logic
Button status Output NOT active Output active
It activates the
output and starts
the timer
P1
-
-
P2
-
10
Disables the output
-
Disables the output
-
It reloads the timer
-
Disables the output
-
