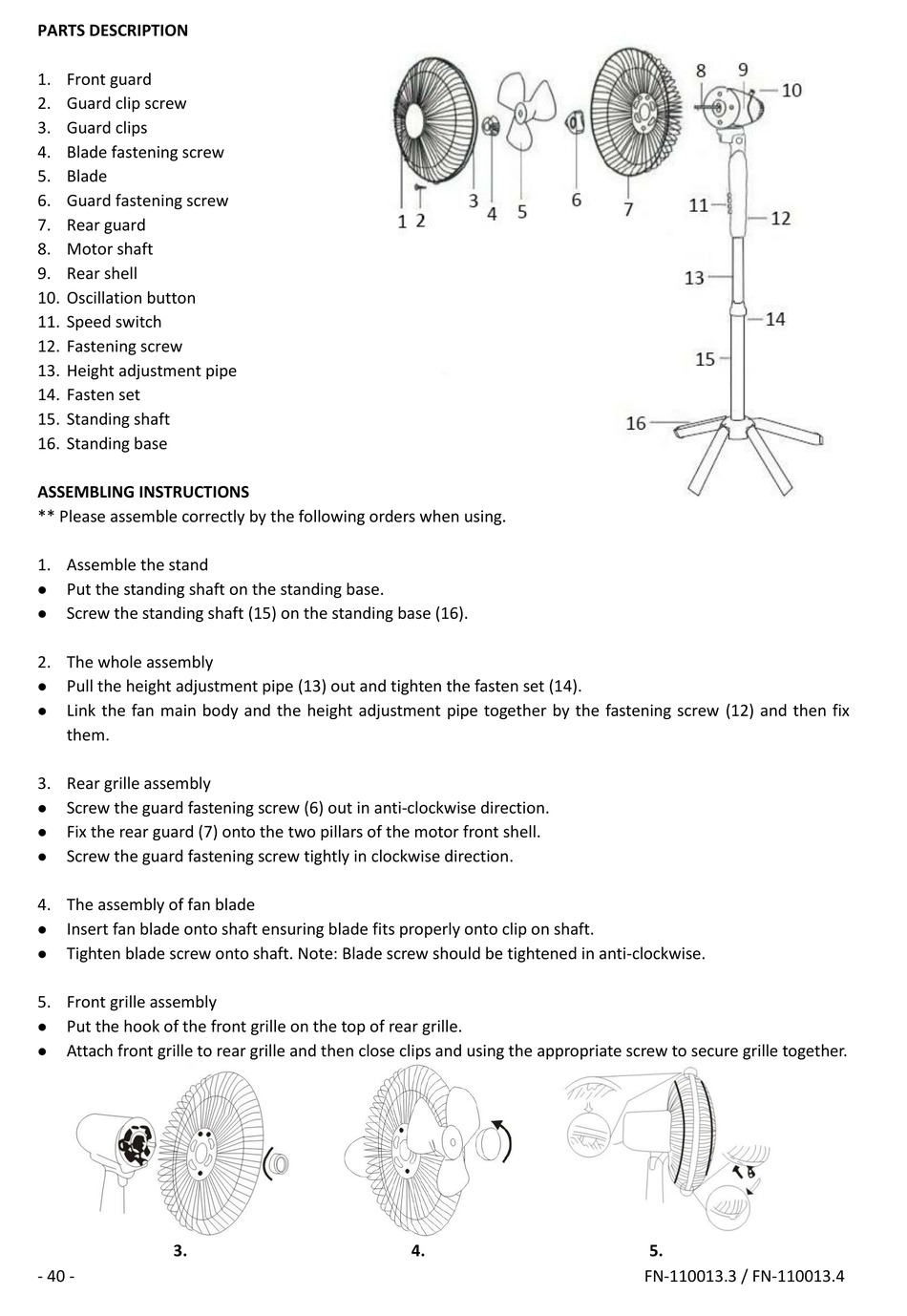

PARTS DESCRIPTION
1. Front guard
2. Guard clip screw
3. Guard clips
4. Blade fastening screw
5. Blade
6. Guard fastening screw
7. Rear guard
8. Motor shaft
9. Rear shell
10. Oscillation button
11. Speed switch
12. Fastening screw
13. Height adjustment pipe
14. Fasten set
15. Standing shaft
16. Standing base
ASSEMBLING INSTRUCTIONS
** Please assemble correctly by the following orders when using.
1. Assemble the stand
Put the standing shaft on the standing base.

Screw the standing shaft (15) on the standing base (16).

2. The whole assembly
Pull the height adjustment pipe (13) out and tighten the fasten set (14).

Link the fan main body and the height adjustment pipe together by the fastening screw (12) and then fix

them.
3. Rear grille assembly
Screw the guard fastening screw (6) out in anti-clockwise direction.

Fix the rear guard (7) onto the two pillars of the motor front shell.

Screw the guard fastening screw tightly in clockwise direction.

4. The assembly of fan blade
Insert fan blade onto shaft ensuring blade fits properly onto clip on shaft.

Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise.

5. Front grille assembly
Put the hook of the front grille on the top of rear grille.

Attach front grille to rear grille and then close clips and using the appropriate screw to secure grille together.

3.
- 40 -
4. 5.
