The appliance is now positioned in the correct depth
position. The distance from the front end of the kitchen
unit side wall to the body of the appliance is 42 mm in
circumference.
Information!
Malfunction due to incorrect installation.
If the installation dimension is not adhered to, the
appliance door may not close. This can cause the
appliance to ice up, condensation to form and
malfunctions to occur.
Make sure that you adhere to the circumferential
clearance of 42 mm. Bear in mind door jamb parts
such as knobs and sealing lips.

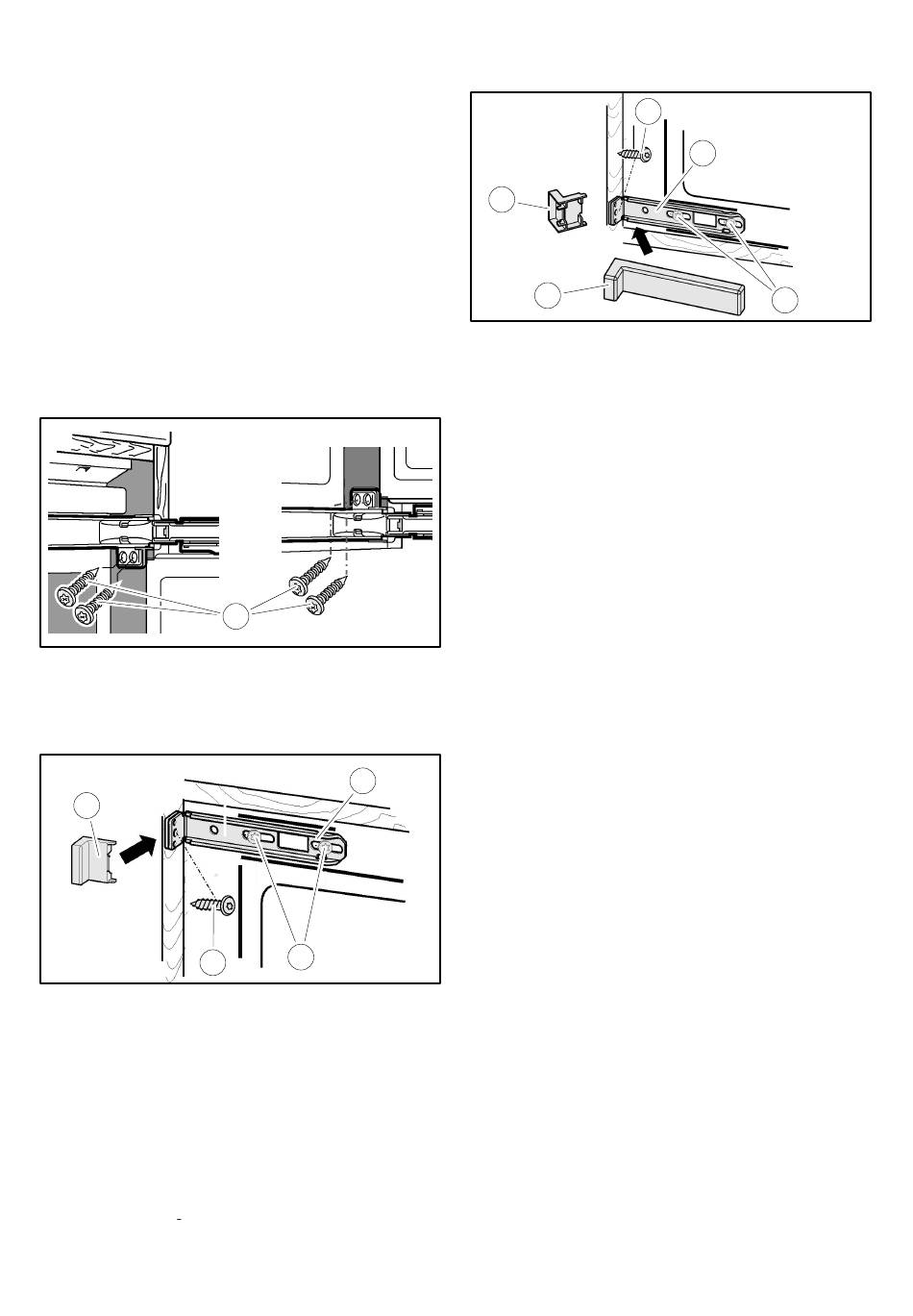

20. Using long particle board screws (22), secure the
appliance at the top and bottom by means of the
hinged strap.
16
25
21. Top of the handle side:
Loosen the screws (19) slightly.
22. Screw the upper mounting angle (17) tightly to the
kitchen unit wall using particle board screws (25).
23. Break off the projecting end of the cover (16).
24. Tighten the screws (19).
25. Clip the broken off cover (16) to the upper mounting
angle (17).
22
17
19
25
16
23
26. Bottom of the handle side:
Loosen the screws (19) slightly.
27. Screw the lower mounting angle (17) tightly to the
kitchen unit wall using particle board screws (25).
28. Break off the projecting end of the cover (16).
It is no longer needed.
29. Tighten the screws (19).
30. Clip the cover (23) to the lower mounting angle (17).
31. Close the appliance door.
