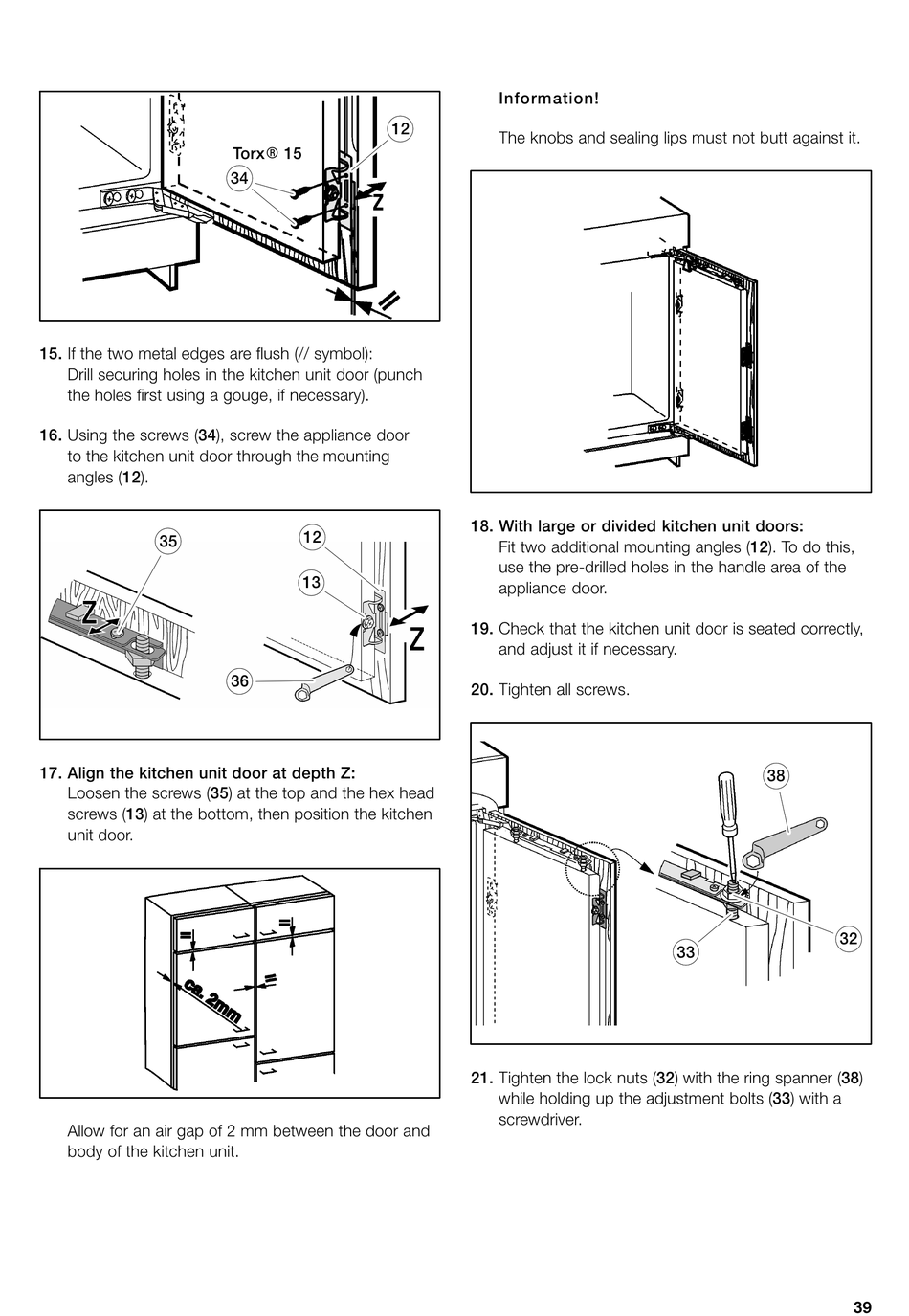

15. If the two metal edges are flush (// symbol):
Drill securing holes in the kitchen unit door (punch
the holes first using a gouge, if necessary).
16. Using the screws (34), screw the appliance door
to the kitchen unit door through the mounting
angles (12).
35
17. Align the kitchen unit door at depth Z:
Loosen the screws (35) at the top and the hex head
screws (13) at the bottom, then position the kitchen
unit door.
Allow for an air gap of 2 mm between the door and
body of the kitchen unit.
12
TorxR 15
34
12
13
36
Information!
The knobs and sealing lips must not butt against it.
18. With large or divided kitchen unit doors:
Fit two additional mounting angles (12). To do this,
use the pre drilled holes in the handle area of the
appliance door.
19. Check that the kitchen unit door is seated correctly,
and adjust it if necessary.
20. Tighten all screws.
21. Tighten the lock nuts (32) with the ring spanner (38)
while holding up the adjustment bolts (33) with a
screwdriver.
38
32
33
39
