Maintenance; Preventative Maintenance; Lamp Replacement - Welch Allyn KleenSpec 78812 Gebrauchsanweisung

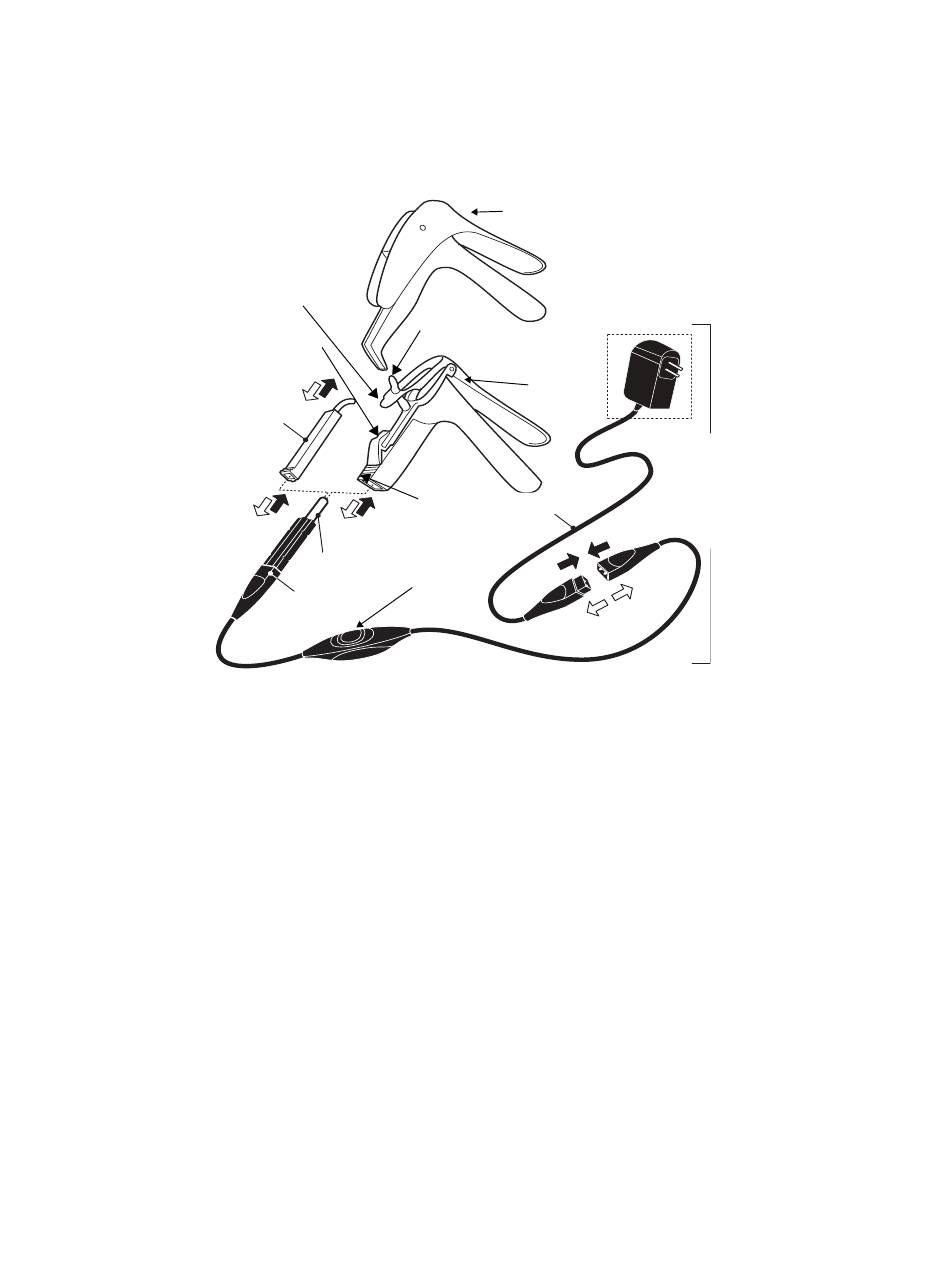

Push down to
increase angulation.
Push down to
decrease elevation.
REF 78600
REF 08800
REF 78800

Maintenance

Preventative Maintenance

Monthly examine cords, connections, and power supply case for wear or damage.
After every use, clean the unit according to the Cleaning, Disinfection, and Sterilization
section of this manual.

Lamp Replacement

1. Disconnect the power supply from the wall outlet and then disconnect the illuminator
from the power supply.
2. Allow lamp to cool for a minimum of 5 minutes and remove the lamp by unscrewing
counterclockwise (CCW).
3. Inspect the lamp socket of the illuminator for damage or irregularities. Contact the
authorized Service Center if any irregularities are found.
4. Replace with Welch Allyn REF 08800 lamp only.
5. Verify that the lamp o-ring is present and free from damage or debris prior to
installation. If o-ring is missing or damaged, replace the lamp.
6. Install by screwing clockwise (CW).
Specula (see above)
Push upward to
decrease angulation.
Specula
(see above)
Push up to
REF 73412
increase
73414
elevation.
73416
On/Off Switch
Energizes the lamp
1-3
Power Supply Plug
System
