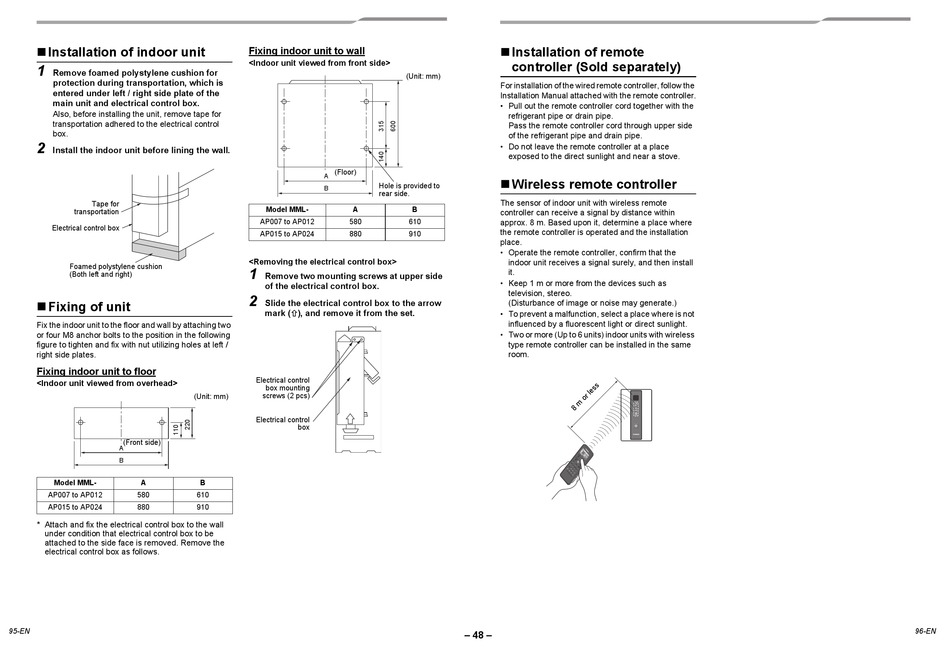

 Installation of indoor unit
1
Remove foamed polystylene cushion for
protection during transportation, which is
entered under left / right side plate of the
main unit and electrical control box.
Also, before installing the unit, remove tape for
transportation adhered to the electrical control
box.
2
Install the indoor unit before lining the wall.
Tape for
transportation
Electrical control box
Foamed polystylene cushion
(Both left and right)
 Fixing of unit
Fix the indoor unit to the floor and wall by attaching two
or four M8 anchor bolts to the position in the following
figure to tighten and fix with nut utilizing holes at left /
right side plates.
Fixing indoor unit to floor
<Indoor unit viewed from overhead>
(Front side)
A
B
Model MML- A
AP007 to AP012 580
AP015 to AP024 880
* Attach and fix the electrical control box to the wall
under condition that electrical control box to be
attached to the side face is removed. Remove the
electrical control box as follows.
95-EN
Fixing indoor unit to wall
<Indoor unit viewed from front side>
(Floor)
A
B
Model MML- A
AP007 to AP012 580
AP015 to AP024 880
<Removing the electrical control box>
1
Remove two mounting screws at upper side
of the electrical control box.
2
Slide the electrical control box to the arrow
mark (), and remove it from the set.
Electrical control
box mounting
screws (2 pcs)
(Unit: mm)
Electrical control
box
B
610
910
 Installation of remote
controller (Sold separately)
(Unit: mm)
For installation of the wired remote controller, follow the
Installation Manual attached with the remote controller.
• Pull out the remote controller cord together with the
refrigerant pipe or drain pipe.
Pass the remote controller cord through upper side
of the refrigerant pipe and drain pipe.
• Do not leave the remote controller at a place
exposed to the direct sunlight and near a stove.
 Wireless remote controller
Hole is provided to
rear side.
The sensor of indoor unit with wireless remote
B
controller can receive a signal by distance within
610
approx. 8 m. Based upon it, determine a place where
the remote controller is operated and the installation
910
place.
• Operate the remote controller, confirm that the
indoor unit receives a signal surely, and then install
it.
• Keep 1 m or more from the devices such as
television, stereo.
(Disturbance of image or noise may generate.)
• To prevent a malfunction, select a place where is not
influenced by a fluorescent light or direct sunlight.
• Two or more (Up to 6 units) indoor units with wireless
type remote controller can be installed in the same
room.
