FIXING THE SANICUBIC UNIT TO THE FLOOR
The SANICUBIC 8h Pro unit is equipped with fittings to hold it on
the floor and
®
prevent it from turning or moving.
1- Place the unit on the desired spot.
2- Draw the outline of the unit.
3- Position the brackets and fix them to the floor as shown on the
template diagram (
8h 1
4- Put the unit back in place.
5- Fix the unit in place with the screws.
1- The electrical installation work must be carried out by a
8i ELECTRICAL CONNECTIONS
qualified electrician.
The electrical installation must comply with the standards in
force in the country concerned
2- The power supply must be of the class 1 type. The unit must be
connected via an earthed connection box. The electric power
circuit must be protected by a high-sensitivity 30 mA differential
circuit breaker set at 20 A. The connection must be used solely
to power the SANICUBIC
damaged, it must be replaced by the manufacturer or its
after-sales service to avoid all danger.
9

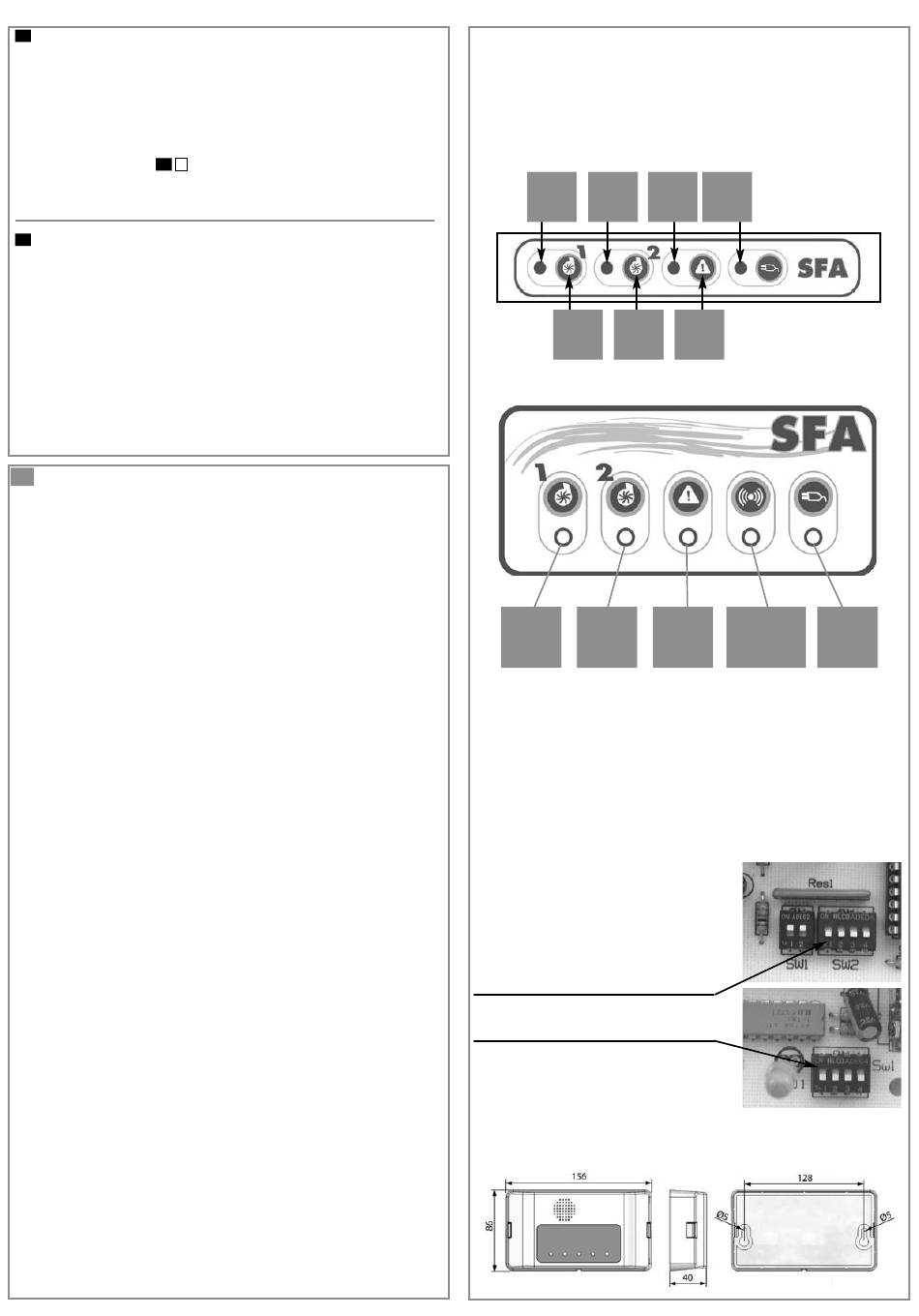

ALARM OPERATION

1/ General alarms:
If the water level in the unit is abnormally high: the buzzer is
High level alarm:
triggered and the red LED comes on; the other motor starts up
3 seconds later (see the illustration showing the control
keyboard).
If one of the 2 motors runs for more than 1 minute: the buzzer is
Temporary alarm:
triggered and the red alarm LED comes on; the other motor starts
up 3 seconds later.
In the event of a mains power failure (or if the unit is
Mains power supply alarm:
unplugged): the buzzer is triggered and the red alarm LED
comes on; the yellow mains power LED also flashes.
2/ Resetting the general alarms:
If the problem that has triggered one of the alarms referred to
above ceases, the buzzer stops, but the red alarm LED stays
on to memorize the fact that the system has met with a
problem.
The "Reset alarm" key on the keyboard is used to switch the
buzzer off in all cases, but it only switches the red LED off if
the problem that triggered the alarm has been dealt with. The
alarm lights on the remote control box also stay on until the
problem has been dealt with. This avoids the risk of having a
system "abandoned" in fault status.
3/ Resetting the general alarms:
The electronic system measures the current input
motor and enables detection of 2 types of fault:
- a < minimum threshold, which can be due to: a fault in the
motor power supply (short-circuit), a capacitor fault,
I I
disconnected internal pipes (eg.through blockage) (turbine /
macerator system).
- a > maximum threshold, because the macerator system is
blocked.
I I
Both of these cases lead to the following results: the motor in
fault status stops, the corresponding red LED comes on, the
alarm is triggered, and the second motor is started.
If the power consumption of the second motor is also outside
the limits: that motor also stops, and the corresponding red
LED comes on.
).
Pro. If the power lead on the unit is
®
(I a)
The buzzer can be stopped by pressing the "Reset alarm" key,
but the red motor LED stays on. When the "override" key for
the corresponding motor is pressed, the green LED comes on
if the fault is no longer present. Until the "override" key for the
motor is pressed, the unit continues to operate on one motor.
The "override" key is used to reinitialize the program. The unit
then attempts to operate using both motors (alternately).
UNIT ALARM
motor 1
LED
"Override"
REMOTE ALARM MODULE
red
motor 1
alarm
LED
The remote alarm module is connected to the SANICUBIC
via an HF link. It receives the various types of alarm
information from the unit. If other HF appliances interfere with
the system, a switching system is fitted for the HF code linking
the base board with the remote alarm module.
The code can be changed using the switches located on the
2 boards.
In the event of interference with
other HF equipment or other
nearby, unplug the unit
SANICUBIC ®
and the remote module,
flip one of the 4 switches (or several
swithces) on the unit board,
to each and do the same on the remote unit
board.
You should have the same
code on the unit board and on the
WARNING:
remote alarm board.
To install the module on a wall, see illustration:
"General
motor 2 "Mains"
alarm"
LED LED
LED
motor 1 motor 2 "RESET"
"Override" General
alarm
red red
motor 2 general transmission
alarm alarm
LED LED
Pro units installed
yellow green
mains
alarm alarm
LED LED
® Pro
