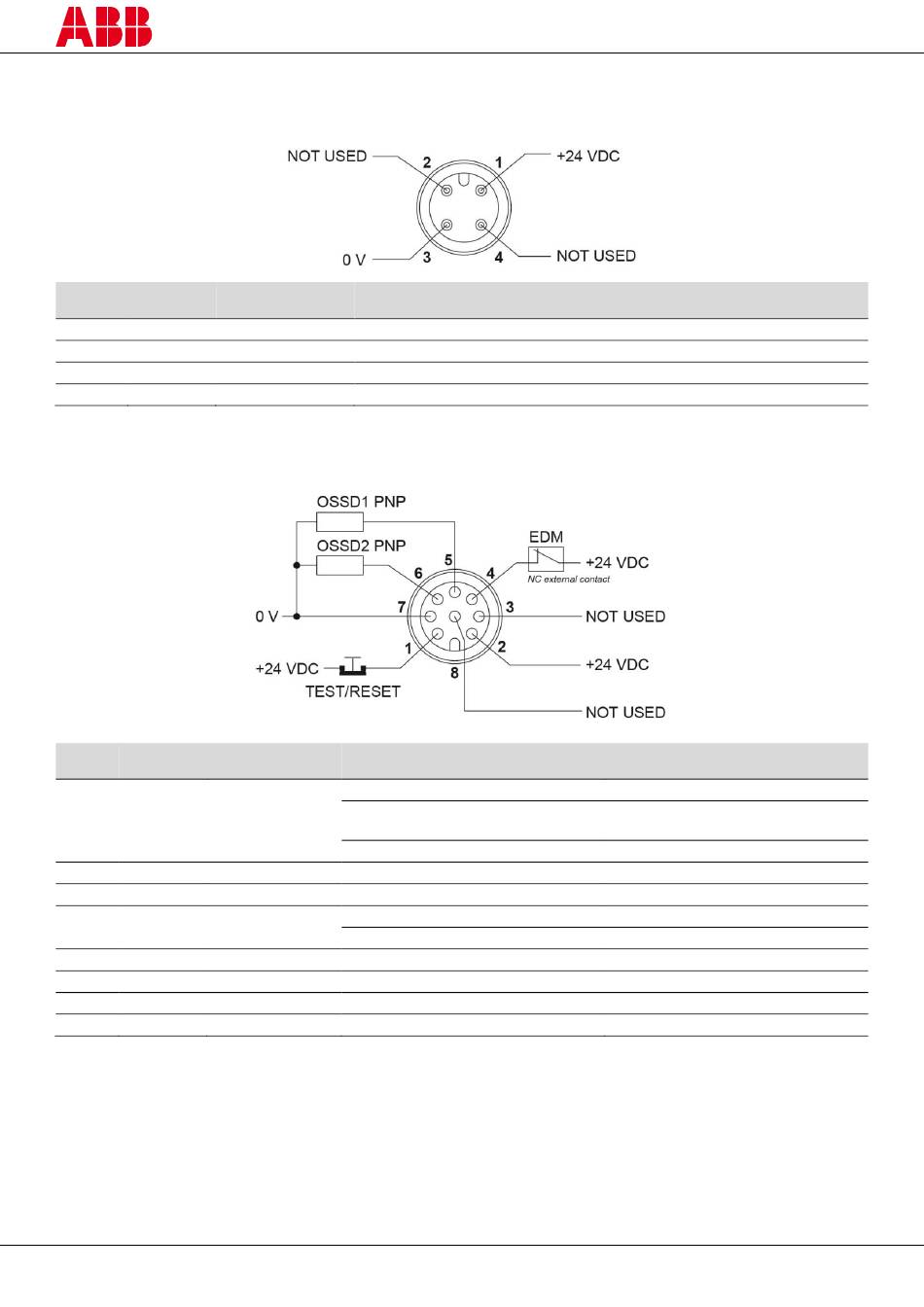

Electrical connections

Transmitter
1
Pin Wire Function
1 Brown Supply
2 White Not used
3 Blue Supply
Not used
4 Black
1
Colors according to ABB Jokab Safety standard cables.
Receiver
1
Pin Wire Function
1 White TEST/RESET*
2 Brown Supply
3 Green Not used
4 Yellow EDM
5 Grey OSSD1
6 Pink OSSD2
7 Blue Supply
8 Red Not used
1
Colors according to ABB Jokab Safety standard cables.
2
Automatic/manual reset and EDM functions are configured with dip-switches.
2TLC172294M0201 Rev B
2015-09-17
Connection to
+24 VDC
0 V
Auto. Reset with no function
Auto. Reset with Acknowledge
function or Alignment mode
Manual Reset
Function used/activated
2
Function not used/deactivated
Connection to
+24 VDC
NC contact to +24 VDC
NC contact to +24 VDC
+24 VDC
NC contact of force-guided relay
Not connected
Safety control module for ex.
Safety control module for ex.
0 V
