Invacare Aquatec ORCA series Gebrauchsanweisung Seite 17

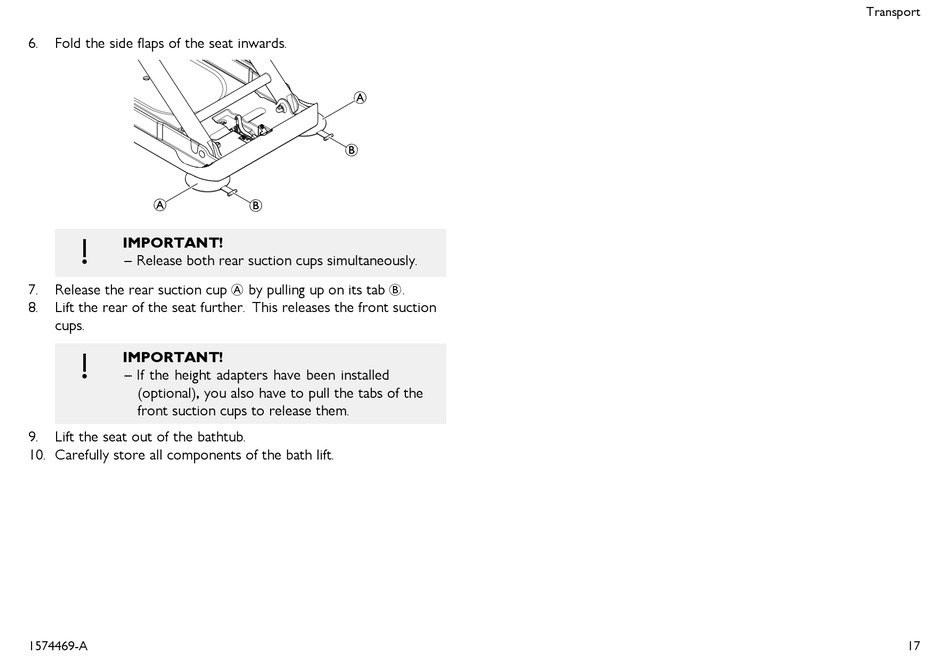

6. Fold the side flaps of the seat inwards.
IMPORTANT!
– Release both rear suction cups simultaneously.
Release the rear suction cup A by pulling up on its tab B.
7.
8. Lift the rear of the seat further. This releases the front suction
cups.
IMPORTANT!
– If the height adapters have been installed
(optional), you also have to pull the tabs of the
front suction cups to release them.
9. Lift the seat out of the bathtub.
10. Carefully store all components of the bath lift.
1574469-A
Transport
17
