Aquatec® ORCA / ORCA F / ORCA XL
WARNING!
Risk of injury and damage!

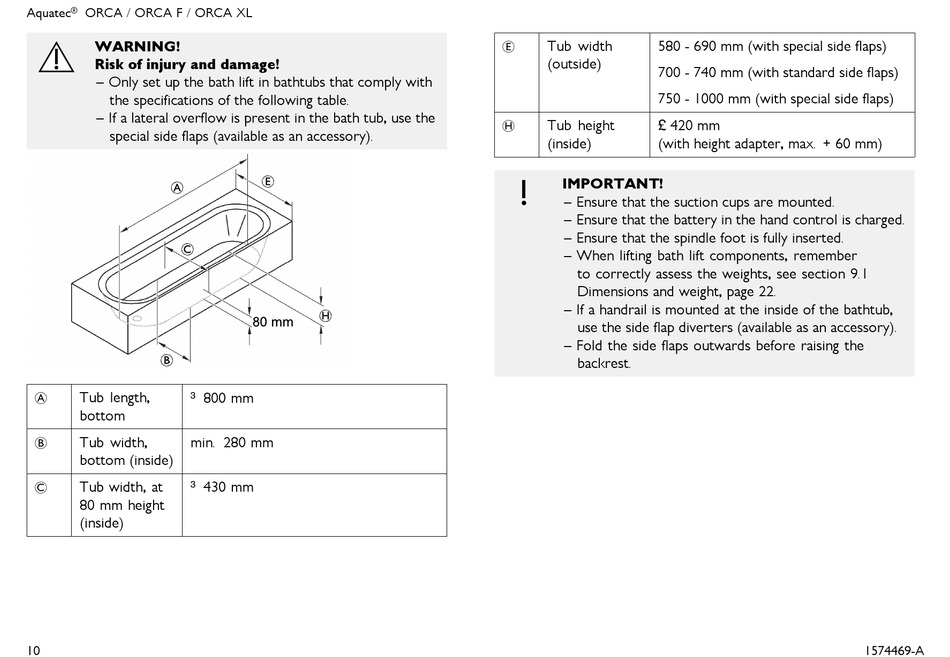

– Only set up the bath lift in bathtubs that comply with
the specifications of the following table.
– If a lateral overflow is present in the bath tub, use the
special side flaps (available as an accessory).
A
C
B
A Tub length, ³ 800 mm
bottom
B
Tub width, min. 280 mm
bottom (inside)
C Tub width, at ³ 430 mm
80 mm height
(inside)
10
E
H
80 mm
E Tub width 580 - 690 mm (with special side flaps)
(outside)
700 - 740 mm (with standard side flaps)
750 - 1000 mm (with special side flaps)
H £ 420 mm
Tub height
(inside)
(with height adapter, max. + 60 mm)
IMPORTANT!
– Ensure that the suction cups are mounted.
– Ensure that the battery in the hand control is charged.
– Ensure that the spindle foot is fully inserted.
– When lifting bath lift components, remember
to correctly assess the weights, see section 9.1
Dimensions and weight, page 22.
– If a handrail is mounted at the inside of the bathtub,
use the side flap diverters (available as an accessory).
– Fold the side flaps outwards before raising the
backrest.
