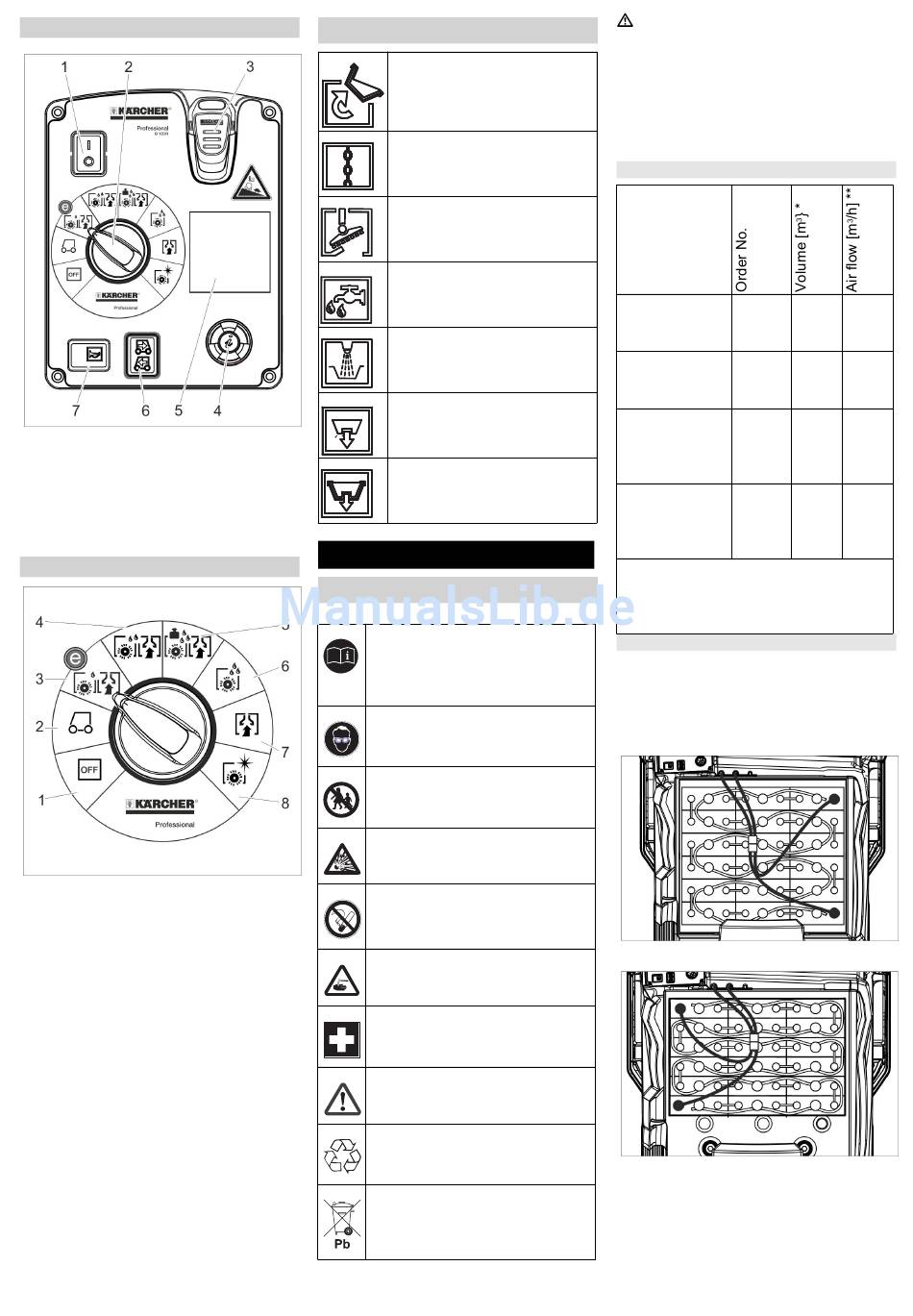

Operator console
1 Safety button
2 Programme switch
3 Intelligent Key
4 Info button
5 Display
6 Drive direction switch
7 Horn
Programme switch
1 OFF
Device is switched off
2 Transport run
Driving to the Place of Use.
3 Eco programme
Wet clean the floor (with reduced brush
speed) and vacuum up wastewater (with
reduced suction).
4 Scrubbing suction
Wet clean the floor and vacuum up dirt
water.
5 Heavy programme
Wet clean the floor (with increased brush
contact pressure) and vacuum up dirt wa-
ter.
6 Scrubbing
Wet clean the floor and allow the deter-
gent to react.
7 Vacuuming
Suck in the dirt fleet.
8 Polishing
Polishing the floor without the application
of liquid.
Symbols on the machine
Handle for swivelling up the
waste water tank
Lashing point
Mop holder **
Water connection filling system
**
Water connection for waste wa-
ter tank rinsing system **
Drain outlet fresh water tank
Drain outlet waste water tank
** option

Before Startup

Batteries
Observe the directions on the bat-
tery, in the instructions for use
and in the vehicle operating in-
structions
Wear eye protection
Keep children away from acid and
batteries
Danger of explosion
Fire, sparks, naked flames and
smoking must be strictly avoided
Danger of chemical burns
First aid
Warning note
Disposal
Do not throw the battery into the
regular waste
3
-
EN
DANGER
Risk of explosion!
Do not place tools or similar items on the
battery. Risk of short-circuit and explosion.
Risk of injury. Ensure that wounds never
come into contact with lead. Always clean
your hands after having worked with batter-
ies.
Recommended batteries
Battery set 4.035-
240Ah, trough, 987.7
low-maintenance
Battery set 4.035-
180Ah, trough, 988.7
low-maintenance
Battery set 4.654-
240Ah, 6 blocks, 306.7
maintenance-
free
Battery set 4.654-
180Ah, 6 blocks, 307.7
maintenance-
free
* Minimum volume of the battery charging
room
** Minimum air flow between the battery
charging room and the surroundings
Insert batteries and connect
The "Pack" model contains built-in batter-
ies.
 Bring the safety switch into the "0" posi-
tion.
 Tilt the waste water tank backwards.
4.035-987.7
4.035-988.7
27 10,8
20,25 8,1
6,975 2,79
5,175 2,07
