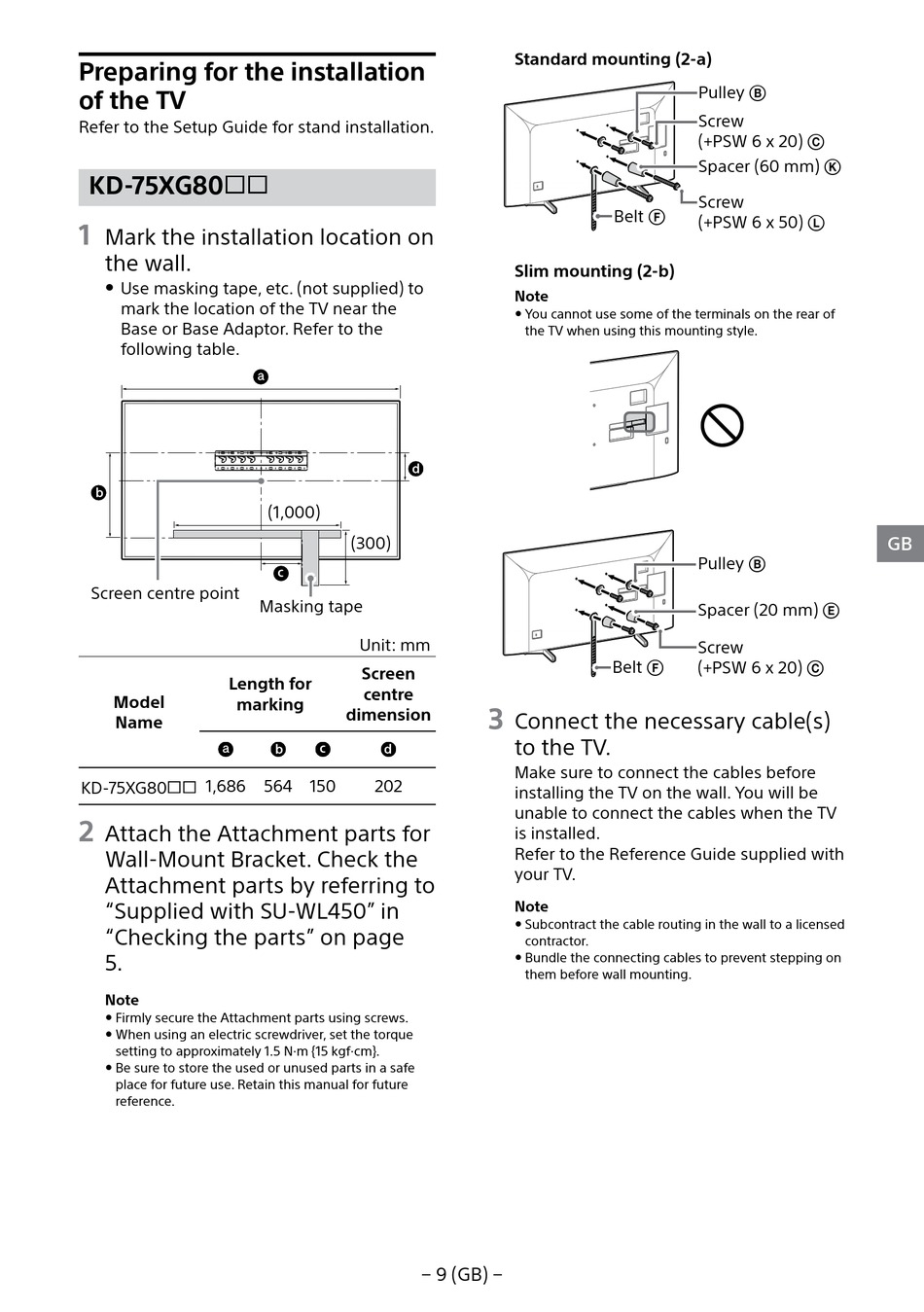

Preparing for the installation
of the TV
Refer to the Setup Guide for stand installation.
KD-75XG80
1
Mark the installation location on
the wall.
 Use masking tape, etc. (not supplied) to
mark the location of the TV near the
Base or Base Adaptor. Refer to the
following table.
Screen centre point
Length for
Model
marking
Name
KD-75XG80 1,686
2
Attach the Attachment parts for
Wall-Mount Bracket. Check the
Attachment parts by referring to
"Supplied with SU-WL450" in
"Checking the parts" on page
5.
Note
 Firmly secure the Attachment parts using screws.
 When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
 Be sure to store the used or unused parts in a safe
place for future use. Retain this manual for future
reference.
(1,000)
(300)
Masking tape
Unit: mm
Screen
centre
dimension
564 150 202
− 9 (GB) −
Standard mounting (2-a)
Belt 
Slim mounting (2-b)
Note
 You cannot use some of the terminals on the rear of
the TV when using this mounting style.
Belt 
3
Connect the necessary cable(s)
to the TV.
Make sure to connect the cables before
installing the TV on the wall. You will be
unable to connect the cables when the TV
is installed.
Refer to the Reference Guide supplied with
your TV.
Note
 Subcontract the cable routing in the wall to a licensed
contractor.
 Bundle the connecting cables to prevent stepping on
them before wall mounting.
Pulley 
Screw
(+PSW 6 x 20) 
Spacer (60 mm) 
Screw
(+PSW 6 x 50) 
Pulley 
Spacer (20 mm) 
Screw
(+PSW 6 x 20) 
GB
