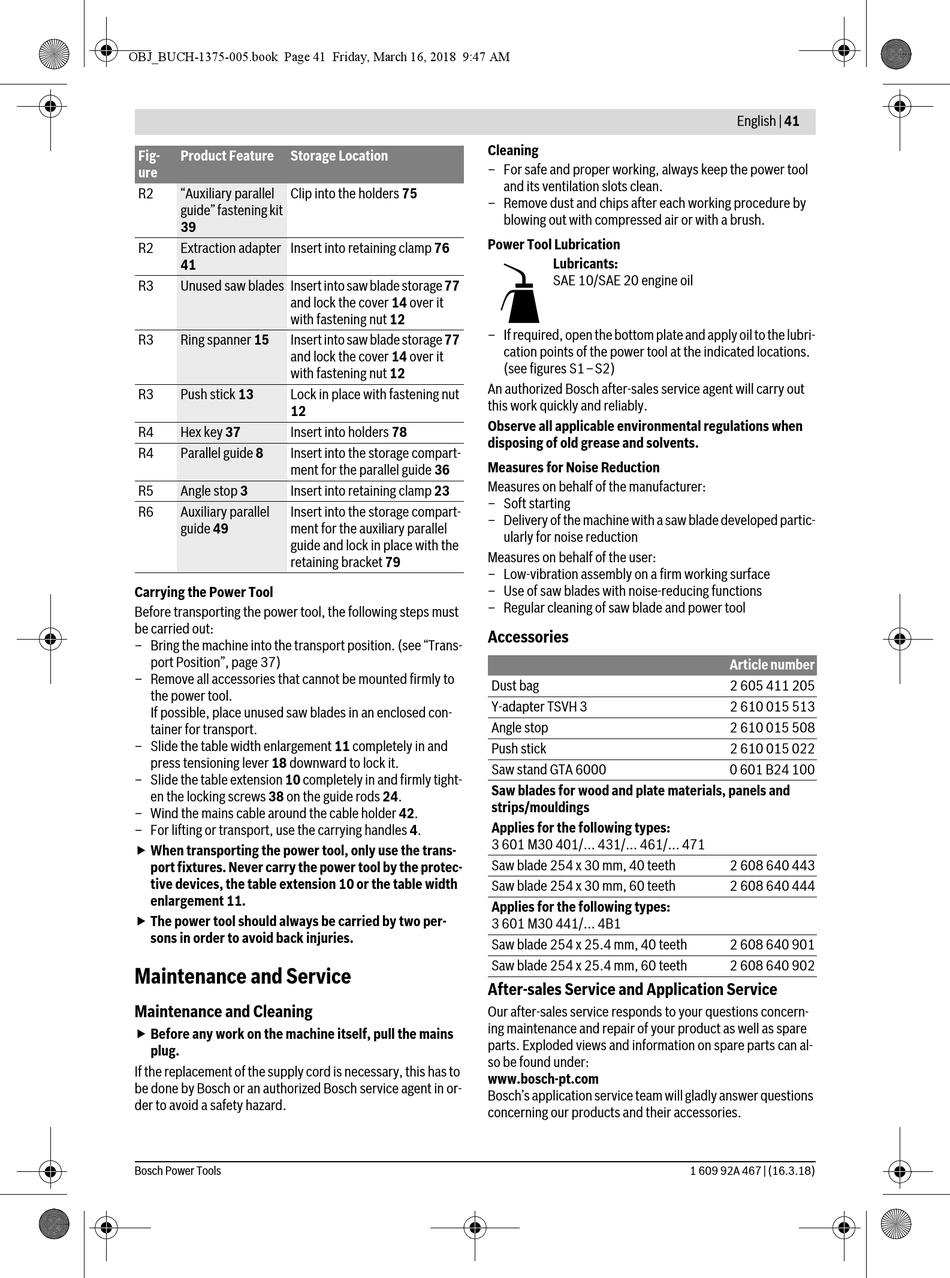

Fig- Product Feature Storage Location
ure
R2 "Auxiliary parallel Clip into the holders 75
guide" fastening kit
39
R2 Extraction adapter Insert into retaining clamp 76
41
R3 Unused saw blades Insert into saw blade storage 77
and lock the cover 14 over it
with fastening nut 12
R3 Ring spanner 15 Insert into saw blade storage 77
and lock the cover 14 over it
with fastening nut 12
R3 Push stick 13 Lock in place with fastening nut
12
R4 Hex key 37 Insert into holders 78
R4 Parallel guide 8 Insert into the storage compart-
ment for the parallel guide 36
R5 Angle stop 3 Insert into retaining clamp 23
R6 Auxiliary parallel Insert into the storage compart-
guide 49 ment for the auxiliary parallel
guide and lock in place with the
retaining bracket 79
Carrying the Power Tool
Before transporting the power tool, the following steps must
be carried out:
– Bring the machine into the transport position. (see "Trans-
port Position", page 37)
– Remove all accessories that cannot be mounted firmly to
the power tool.
If possible, place unused saw blades in an enclosed con-
tainer for transport.
– Slide the table width enlargement 11 completely in and
press tensioning lever 18 downward to lock it.
– Slide the table extension 10 completely in and firmly tight-
en the locking screws 38 on the guide rods 24.
– Wind the mains cable around the cable holder 42.
– For lifting or transport, use the carrying handles 4.
 When transporting the power tool, only use the trans-
port fixtures. Never carry the power tool by the protec-
tive devices, the table extension 10 or the table width
enlargement 11.
 The power tool should always be carried by two per-
sons in order to avoid back injuries.

Maintenance and Service

Maintenance and Cleaning
 Before any work on the machine itself, pull the mains
plug.
If the replacement of the supply cord is necessary, this has to
be done by Bosch or an authorized Bosch service agent in or-
der to avoid a safety hazard.
Bosch Power Tools
Cleaning
– For safe and proper working, always keep the power tool
and its ventilation slots clean.
– Remove dust and chips after each working procedure by
blowing out with compressed air or with a brush.
Power Tool Lubrication
Lubricants:
SAE 10/SAE 20 engine oil
– If required, open the bottom plate and apply oil to the lubri-
cation points of the power tool at the indicated locations.
(see figures S1–S2)
An authorized Bosch after-sales service agent will carry out
this work quickly and reliably.
Observe all applicable environmental regulations when
disposing of old grease and solvents.
Measures for Noise Reduction
Measures on behalf of the manufacturer:
– Soft starting
– Delivery of the machine with a saw blade developed partic-
ularly for noise reduction
Measures on behalf of the user:
– Low-vibration assembly on a firm working surface
– Use of saw blades with noise-reducing functions
– Regular cleaning of saw blade and power tool
Accessories
Dust bag
Y-adapter TSVH 3
Angle stop
Push stick
Saw stand GTA 6000
Saw blades for wood and plate materials, panels and
strips/mouldings
Applies for the following types:
3 601 M30 401/... 431/... 461/... 471
Saw blade 254 x 30 mm, 40 teeth
Saw blade 254 x 30 mm, 60 teeth
Applies for the following types:
3 601 M30 441/... 4B1
Saw blade 254 x 25.4 mm, 40 teeth
Saw blade 254 x 25.4 mm, 60 teeth
After-sales Service and Application Service
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Bosch's application service team will gladly answer questions
concerning our products and their accessories.
English | 41
Article number
2 605 411 205
2 610 015 513
2 610 015 508
2 610 015 022
0 601 B24 100
2 608 640 443
2 608 640 444
2 608 640 901
2 608 640 902
1 609 92A 467 | (16.3.18)
