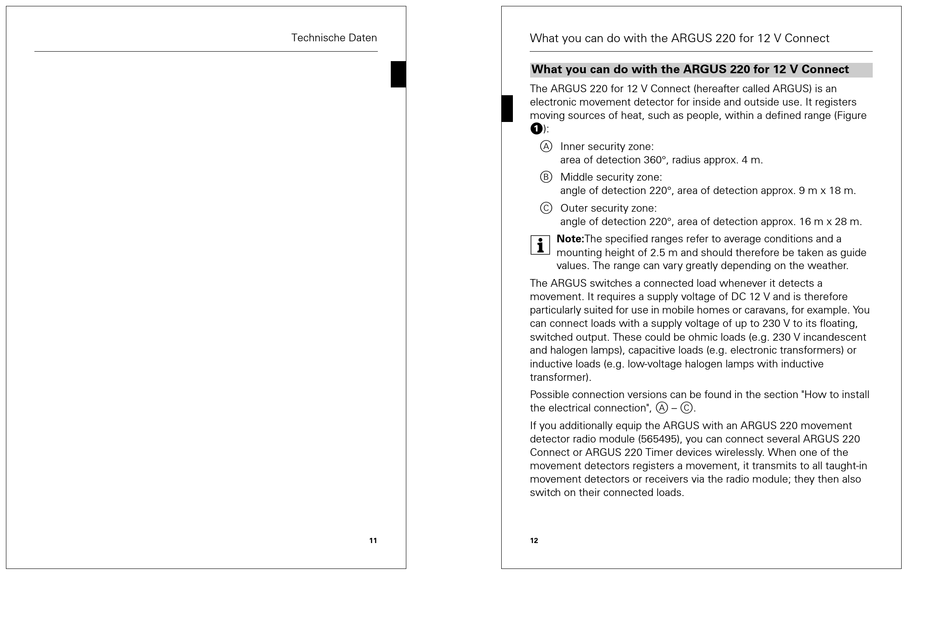

What you can do with the ARGUS 220 for 12 V Connect
What you can do with the ARGUS 220 for 12 V Connect
The ARGUS 220 for 12 V Connect (hereafter called ARGUS) is an
electronic movement detector for inside and outside use. It registers
moving sources of heat, such as people, within a defined range (Figure
!):
A Inner security zone:
area of detection 360°, radius approx. 4 m.
B Middle security zone:
angle of detection 220°, area of detection approx. 9 m x 18 m.
C Outer security zone:
angle of detection 220°, area of detection approx. 16 m x 28 m.
| Note:The specified ranges refer to average conditions and a
mounting height of 2.5 m and should therefore be taken as guide
values. The range can vary greatly depending on the weather.
The ARGUS switches a connected load whenever it detects a
movement. It requires a supply voltage of DC 12 V and is therefore
particularly suited for use in mobile homes or caravans, for example. You
can connect loads with a supply voltage of up to 230 V to its floating,
switched output. These could be ohmic loads (e.g. 230 V incandescent
and halogen lamps), capacitive loads (e.g. electronic transformers) or
inductive loads (e.g. low-voltage halogen lamps with inductive
transformer).
Possible connection versions can be found in the section "How to install
the electrical connection", A – C.
If you additionally equip the ARGUS with an ARGUS 220 movement
detector radio module (565495), you can connect several ARGUS 220
Connect or ARGUS 220 Timer devices wirelessly. When one of the
movement detectors registers a movement, it transmits to all taught-in
movement detectors or receivers via the radio module; they then also
switch on their connected loads.
