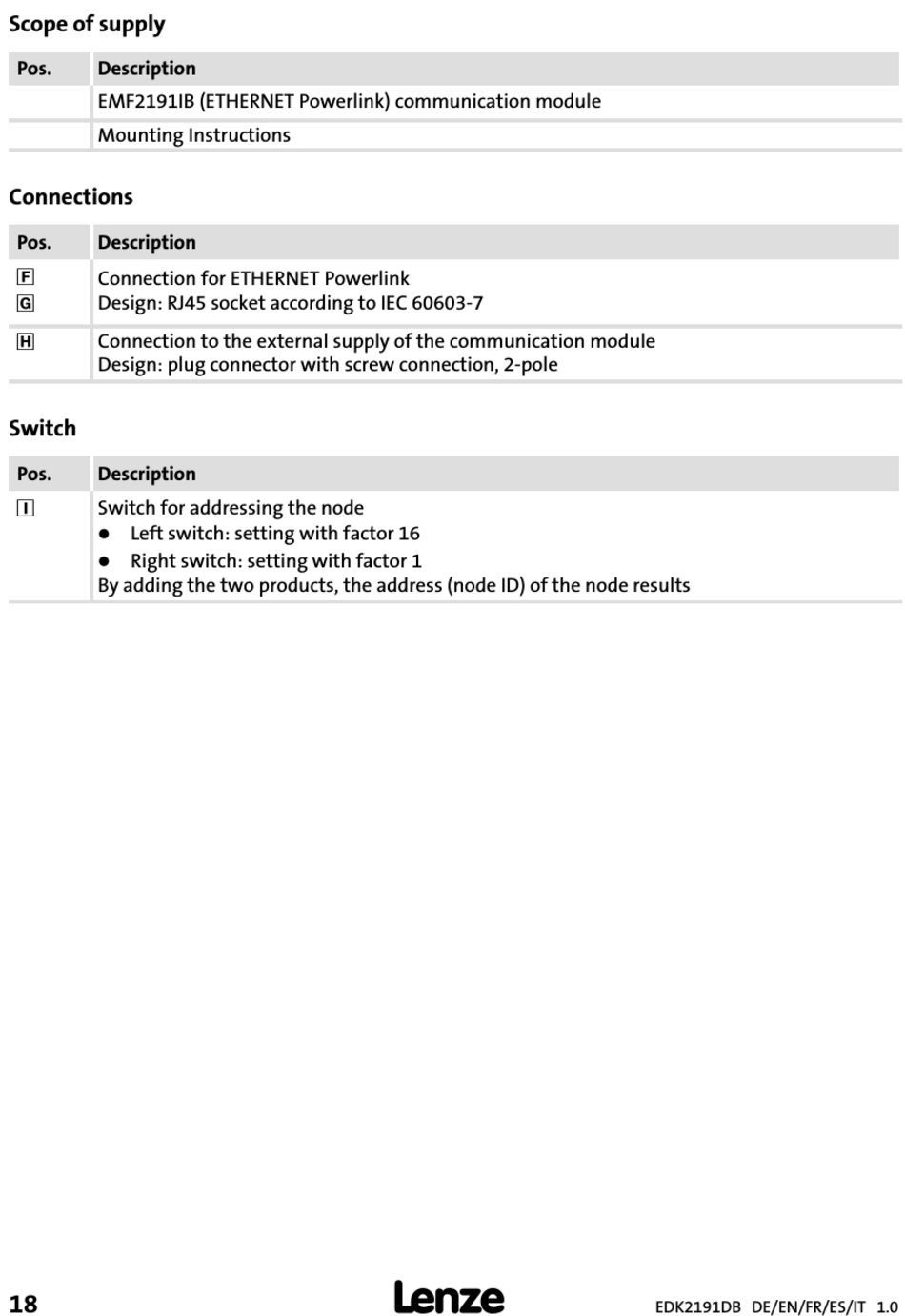

Lenze EMF2191IB Montageanleitung Seite 18

Scope of supply
Pos. Description
EMF2191IB (ETHERNET Powerlink) communication module
Mounting Instructions
Connections
Pos. Description
5
Connection for ETHERNET Powerlink
6
Design: RJ45 socket according to IEC 60603−7
7
Connection to the external supply of the communication module
Design: plug connector with screw connection, 2−pole
Switch
Pos. Description
8
Switch for addressing the node
l
Left switch: setting with factor 16
l
Right switch: setting with factor 1
By adding the two products, the address (node ID) of the node results
